沃尔沃零件查询D2-55; D2-55B; D2-55C; D2-55D; D2-55E; D2-55FControlsControl ConnectionEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
818 次

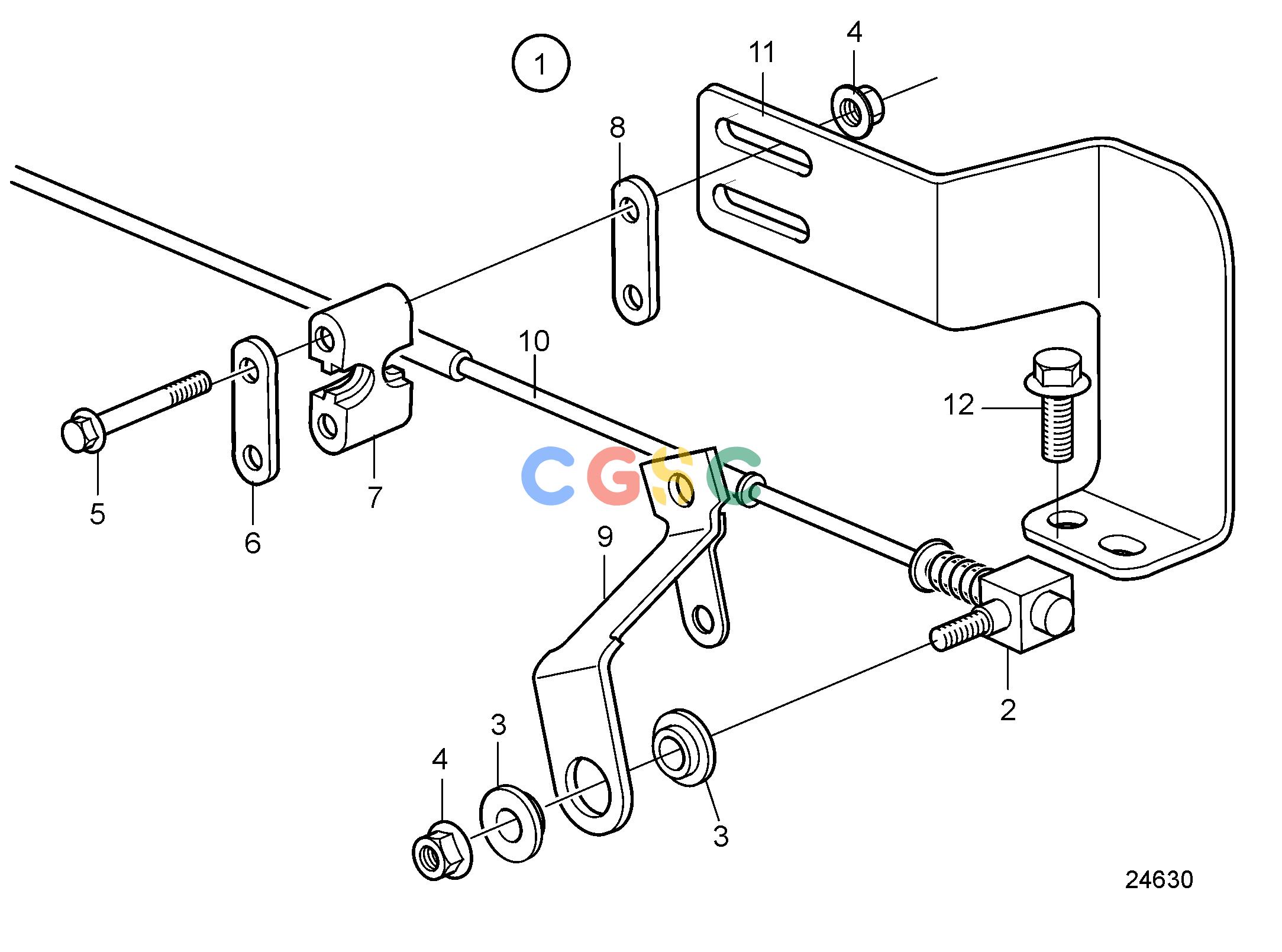

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3841287
|
[1] |
Connector kit
|
|
| 2. |
840692
|
[1] |
Cube
|
|
| 3. |
843105
|
[2] |
Spacer washer
|
|
| 4. |
949874
|
[3] |
Flange lock nut
|
|
| 5. |
969439
|
[2] |
Six point socket scr
|
|
| 6. |
819068
|
[1] |
Washer
|
|
| 7. |
872074
|
[1] |
Retainer
|
|
| 8. |
872076
|
[1] |
Washer
|
|
| 9. |
21187771
|
[1] |
Intermediate lever
|
|
| 10. |
7744440_070
|
|
Control cable
|
|
| 11. |
21138262
|
[1] |
Support arm
|
|
| 12. |
946440
|
[2] |
Flange screw
|
|
