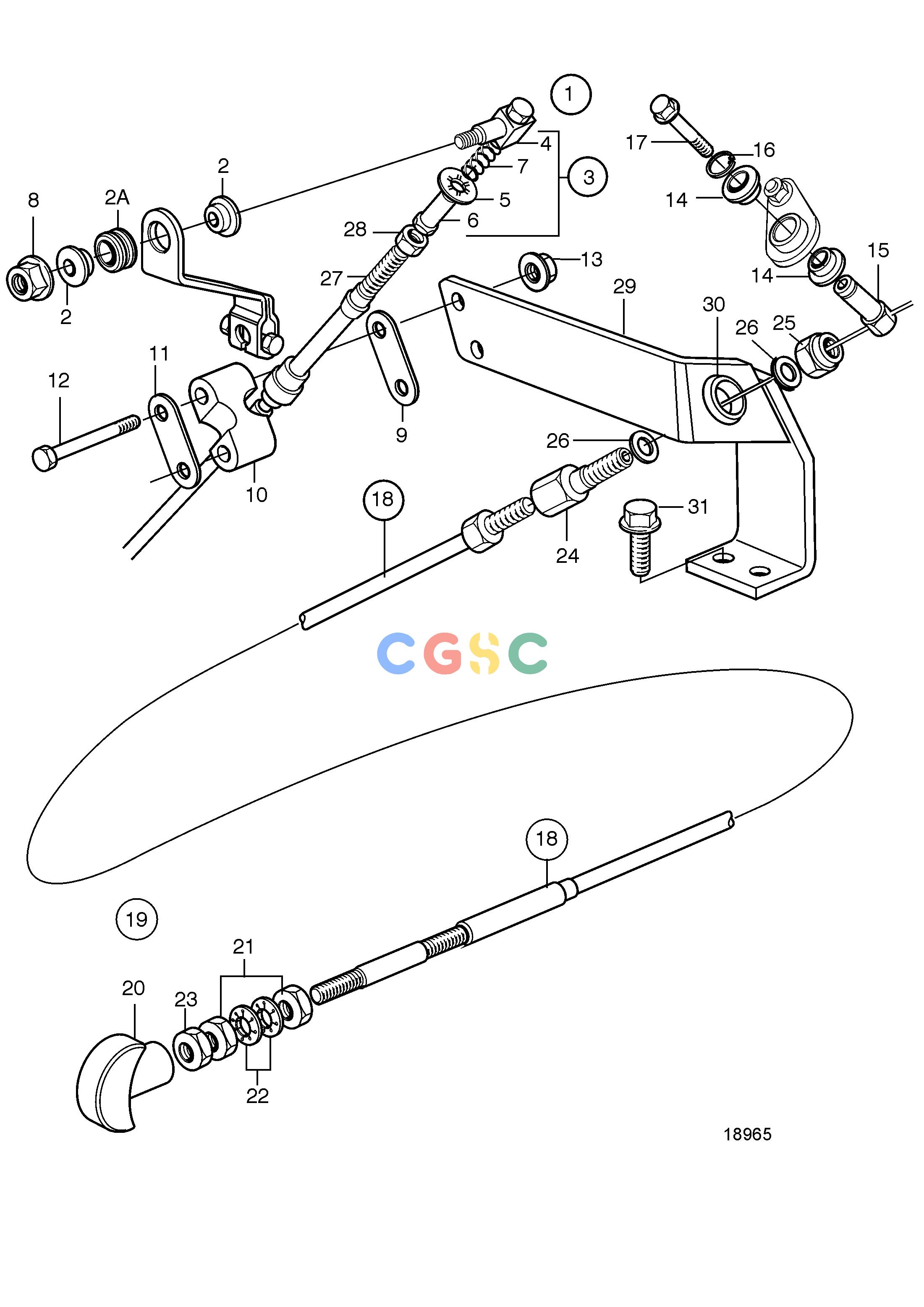

沃尔沃零件查询D2-55; D2-55B; D2-55C; D2-55D; D2-55E; D2-55FControlsControl Connection, Speed and Stop ControlEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
620 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
843105
|
[2] |
Spacer washer
|
|
| 2A. |
843109
|
[1] |
Bushing
|
|
| 3. |
840692
|
[1] |
Cube
|
|
| 4. |
840669
|
[1] |
Cube
|
|
| 5. |
968766
|
[1] |
Retainer
|
|
| 6. |
814083
|
[1] |
Adjusting nut
|
|
| 7. |
814086
|
[1] |
Spring
|
|
| 8. |
949874
|
[1] |
Flange lock nut
|
(946577)
|
| 9. |
872076
|
[1] |
Washer
|
|
| 10. |
872074
|
[1] |
Retainer
|
|
| 11. |
819068
|
[1] |
Washer
|
|
| 12. |
969439
|
[2] |
Six point socket scr
|
|
| 13. |
949874
|
[2] |
Flange lock nut
|
(946577)
|
| 14. |
843105
|
[2] |
Spacer washer
|
|
| 15. |
861479
|
[1] |
Cable clamp
|
|
| 16. |
951669
|
[1] |
E-circlip
|
|
| 17. |
969556
|
[1] |
Six point socket scr
|
|
| 18. |
21272376
|
[1] |
Stop cable
|
L=3,3m
|
| 18. |
21272378
|
[1] |
Stop cable
|
L=6,9m
|
| 19. |
818478
|
[1] |
Push pull control
|
For L=3,3m
|
| 19. |
818470
|
[1] |
Push pull control
|
For L=6,9m
|
| 20. |
829241
|
[1] |
Handle
|
|
| 21. |
955857
|
[2] |
Hexagon nut
|
|
| 22. |
955950
|
[2] |
Toothed washer
|
|
| 23. |
955844
|
[1] |
Hexagon nut
|
|
| 24. |
829070
|
[1] |
Cable lock
|
|
| 25. |
945467
|
[1] |
Lock nut
|
(950353)
|
| 26. |
955894
|
[2] |
Washer
|
|
| 27. |
7744440_070
|
|
Control cable
|
|
| 28. |
|
|
|
|
| 29. |
3583791
|
[1] |
Anchorage
|
|
| 30. |
843109
|
[1] |
Bushing
|
|
| 31. |
946173
|
[2] |
Flange screw
|
(861849)
|
