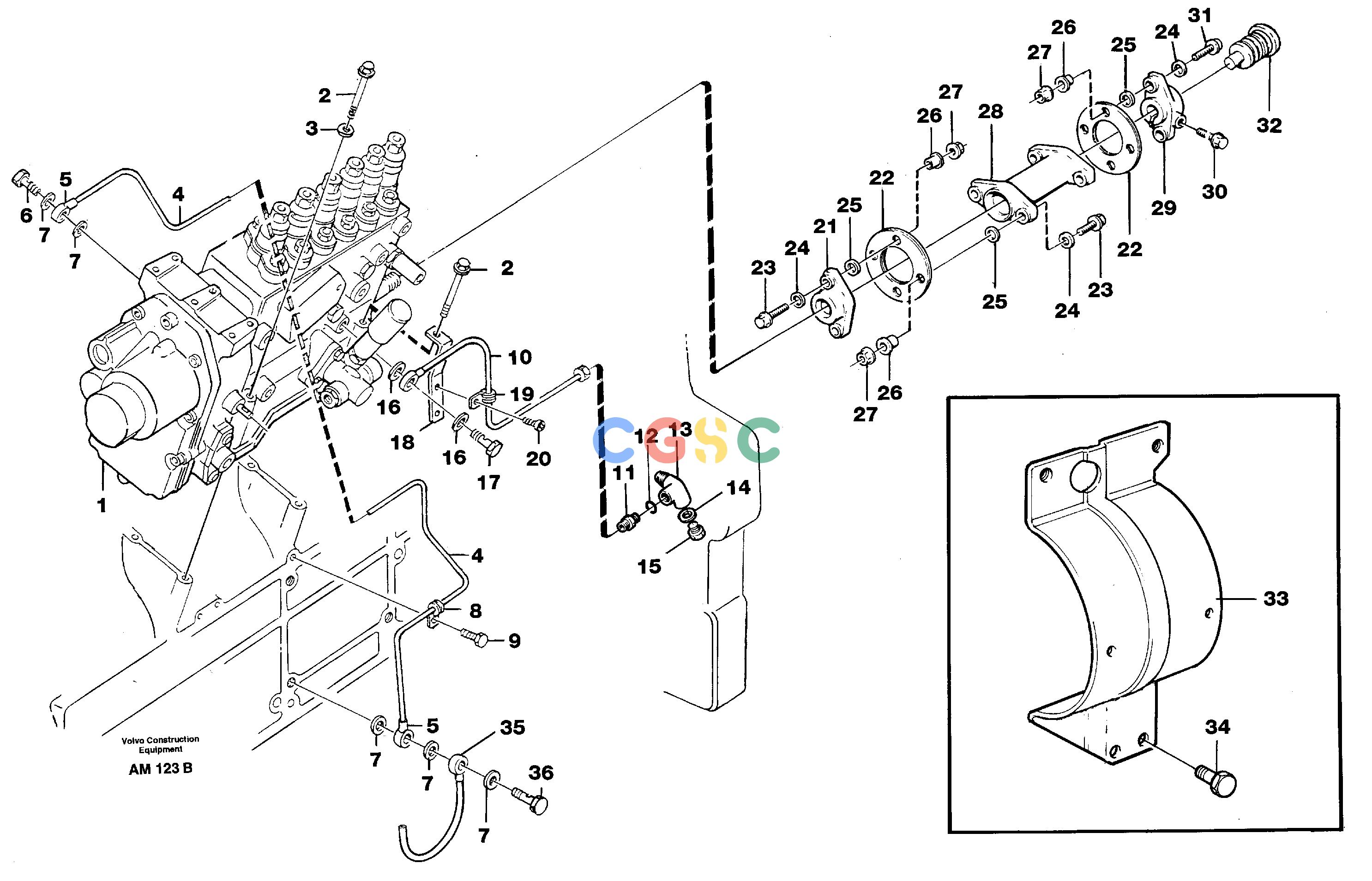

沃尔沃零件查询L330C VOLVO BM Injection pump with driveVOLVO BM L330C SER NO - 60187 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
730 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11032038
|
[1] |
Injection pump
|
|
| |
|
[1] |
Injcection pump
|
|
| |
|
[1] |
Centrifugal regulator
|
|
| |
|
[1] |
Regulator cover
|
|
| |
|
[1] |
Smoke limiter
|
|
| |
|
[1] |
Feed pump
|
|
| 2. |
VOE970961
|
[4] |
Hexagon screw
|
|
| 3. |
VOE190509
|
[3] |
Washer
|
|
| 4. |
VOE1556254
|
[1] |
Oil return pipe
|
|
| 5. |
VOE13945614
|
[2] |
Banjo nipple
|
|
| 6. |
VOE60113509
|
[1] |
Hollow screw
|
|
| 7. |
VOE13969011
|
[5] |
Gasket
|
|
| 8. |
VOE13946834
|
[1] |
Clamp
|
|
| 9. |
VOE946440
|
[1] |
Flange screw
|
|
| 10. |
VOE11032077
|
[1] |
Oil feed pipe
|
|
| 11. |
VOE977639
|
[1] |
Nipple
|
|
| 12. |
VOE955990
|
[1] |
O-ring
|
|
| 13. |
VOE13977640
|
[1] |
Nipple
|
|
| 14. |
VOE13947282
|
[1] |
Gasket
|
|
| 15. |
VOE960629
|
[1] |
Plug
|
|
| 16. |
VOE13947281
|
[2] |
Gasket
|
|
| 17. |
VOE7048634
|
[1] |
Hollow screw
|
|
| 18. |
VOE1556112
|
[1] |
Bracket
|
|
| 19. |
VOE952623
|
[1] |
Clamp
|
|
| 20. |
VOE956092
|
[1] |
Cross recessed screw
|
|
| 21. |
VOE1556188
|
[1] |
Companion flange
|
|
| 22. |
VOE479458
|
[8] |
Companion disc
|
|
| 23. |
VOE13965185
|
[6] |
Screw
|
|
| 24. |
VOE976945
|
[8] |
Washer
|
|
| 25. |
VOE479399
|
[8] |
Washer
|
|
| 26. |
VOE478897
|
[8] |
Sleeve
|
|
| 27. |
VOE13971095
|
[8] |
Flange nut
|
|
| 28. |
VOE1556175
|
[1] |
Intmd Section
|
|
| 29. |
VOE1556186
|
[1] |
Companion flange
|
|
| 30. |
VOE1556285
|
[1] |
Screw
|
|
| 31. |
VOE13965220
|
[2] |
Screw
|
|
| 32. |
|
[1] |
Inj timing dvc
|
|
| 33. |
VOE849284
|
[1] |
Protection
|
|
| 34. |
VOE13947760
|
[2] |
Screw
|
M8x40
|
| |
VOE13946173
|
[2] |
Screw
|
M8x20
|
| 35. |
|
[1] |
Pipe
|
|
| 36. |
VOE978197
|
[1] |
Hollow screw
|
|
