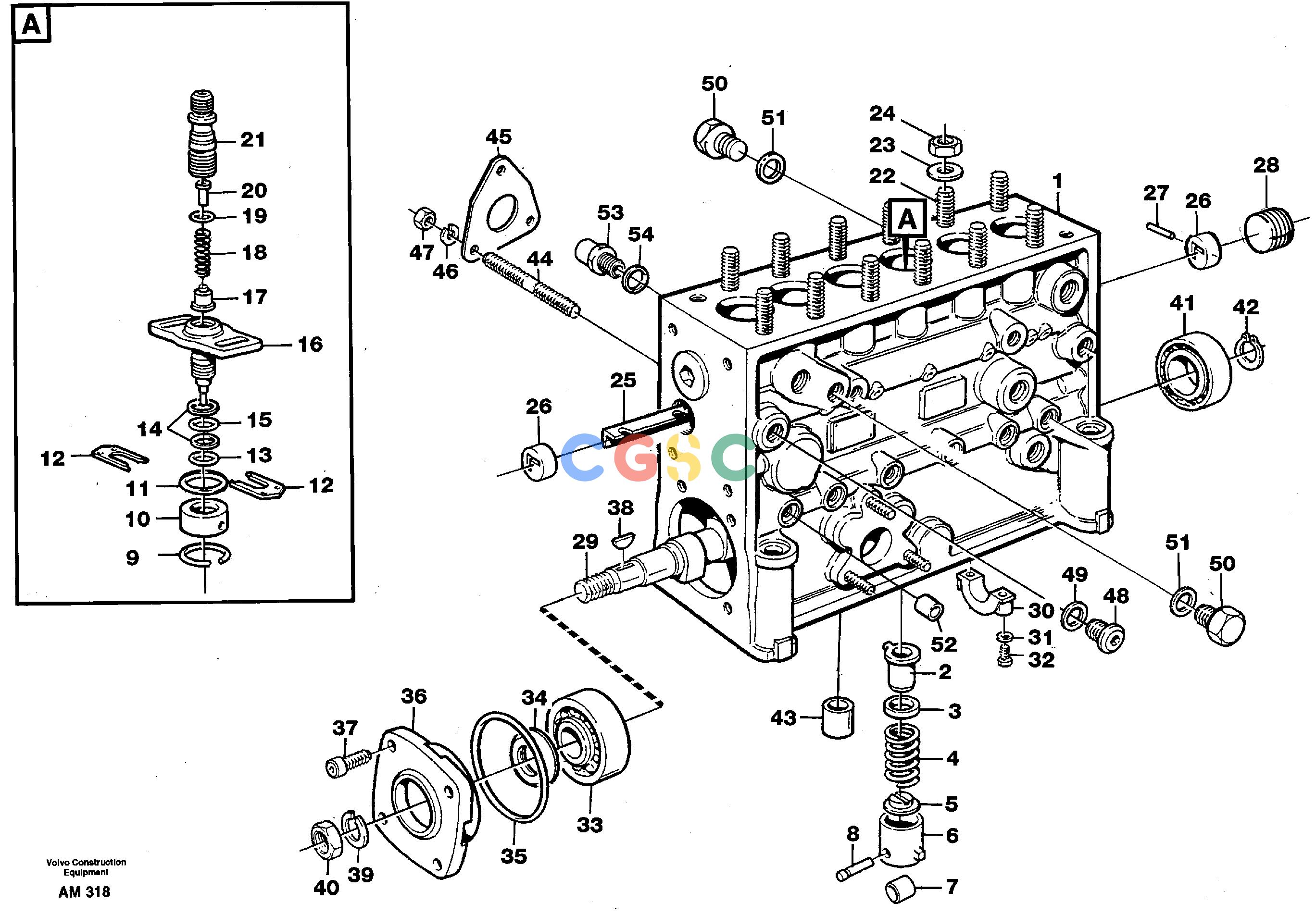

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Pump housing
|
|
| 2. |
|
[6] |
Sleeve
|
|
| 3. |
|
[6] |
Spring Disc
|
|
| 4. |
|
[6] |
Compression Spring
|
|
| 5. |
VOE862408
|
[6] |
Disc spring
|
|
| 6. |
|
[6] |
Tappet
|
|
| 7. |
|
[6] |
Roller
|
|
| 8. |
|
[6] |
Bearing bolt
|
|
| 9. |
VOE1699457
|
[6] |
Stop ring
|
|
| 10. |
VOE1699766
|
[6] |
Cap
|
|
| 11. |
VOE862402
|
[6] |
O-ring
|
|
| 12. |
VOE844990
|
[REQ] |
Shim
|
THICK = 0.40 MM
|
| |
VOE847428
|
[REQ] |
Shim
|
THICK = 0.45 MM
|
| |
VOE844991
|
[REQ] |
Shim
|
THICK = 0.50 MM
|
| |
VOE844992
|
[REQ] |
Shim
|
THICK = 0.70 MM
|
| |
VOE844993
|
[REQ] |
Shim
|
THICK = 0.80 MM
|
| |
VOE844994
|
[REQ] |
Shim
|
THICK = 1.00 MM
|
| |
VOE844995
|
[REQ] |
Shim
|
THICK = 1.10 MM
|
| |
VOE244635
|
[REQ] |
Shim
|
THICK = 1.40 MM
|
| |
VOE244381
|
[REQ] |
Shim
|
THICK = 1.50 MM
|
| |
VOE244382
|
[REQ] |
Shim
|
THICK = 1.60 MM
|
| |
VOE244383
|
[REQ] |
Shim
|
THICK = 1.70 MM
|
| |
VOE244384
|
[REQ] |
Shim
|
THICK = 1.80 MM
|
| |
VOE244385
|
[REQ] |
Shim
|
THICK = 1.90 MM
|
| |
VOE244386
|
[REQ] |
Shim
|
THICK = 2.00 MM
|
| 13. |
VOE11996307
|
[6] |
O-ring
|
|
| 14. |
VOE3094382
|
[12] |
Back-up ring
|
|
| 15. |
VOE240422
|
[6] |
Sealing ring
|
|
| 16. |
VOE1699536
|
[6] |
Pump element
|
|
| 17. |
VOE85103885
|
[6] |
Delivery valve
|
|
| 18. |
VOE1699812
|
[6] |
Compression spring
|
|
| 19. |
VOE862400
|
[6] |
O-ring
|
|
| 20. |
VOE1699811
|
[6] |
Peg
|
|
| 21. |
VOE1699810
|
[6] |
Retainer
|
|
| 22. |
VOE1699459
|
[12] |
Stud
|
|
| 23. |
VOE862404
|
[12] |
Washer
|
|
| 24. |
VOE1699460
|
[12] |
Nut
|
|
| 25. |
|
[1] |
Control rod
|
|
| 26. |
VOE240014
|
[2] |
Guide sleeve
|
|
| 27. |
VOE244008
|
[1] |
Lock pin
|
|
| 28. |
VOE244699
|
[1] |
Ring
|
|
| 29. |
|
[1] |
Camshaft
|
|
| 30. |
VOE1699552
|
[1] |
Bearing
|
|
| 31. |
VOE1699554
|
[2] |
Washer
|
|
| 32. |
VOE1699470
|
[2] |
Screw
|
|
| 33. |
VOE1699472
|
[1] |
Roller bearing
|
|
| 34. |
VOE1699474
|
[1] |
Sealing ring
|
|
| 35. |
VOE1698556
|
[1] |
O-ring
|
|
| 36. |
|
[1] |
Cover
|
|
| 37. |
VOE862415
|
[4] |
Screw
|
|
| 38. |
VOE7035168
|
[1] |
Key
|
|
| 39. |
VOE1699475
|
[1] |
Spring washer
|
|
| 40. |
VOE1699556
|
[1] |
Nut
|
|
| 41. |
|
[1] |
Roller bearing
|
|
| 42. |
VOE233905
|
[1] |
Lock ring
|
|
| 43. |
VOE1697956
|
[6] |
Cap
|
|
| 44. |
VOE130673
|
[3] |
Stud
|
|
| 45. |
VOE863370
|
[1] |
Gasket
|
|
| 46. |
VOE13949607
|
[3] |
Washer
|
|
| 47. |
VOE940197
|
[3] |
Hexagon nut
|
|
| 48. |
VOE7243263
|
[1] |
Plug
|
|
| 49. |
VOE949329
|
[1] |
Gasket
|
|
| 50. |
VOE243011
|
[2] |
Plug
|
|
| 51. |
VOE13947621
|
[2] |
Plane gasket
|
|
| 52. |
VOE11998400
|
[6] |
Cap
|
|
| 53. |
VOE11996309
|
[1] |
Overflow valve
|
|
| 54. |
VOE13947621
|
[1] |
Plane gasket
|
|
| |
VOE11999859
|
[1] |
Injection Pump
|
|
