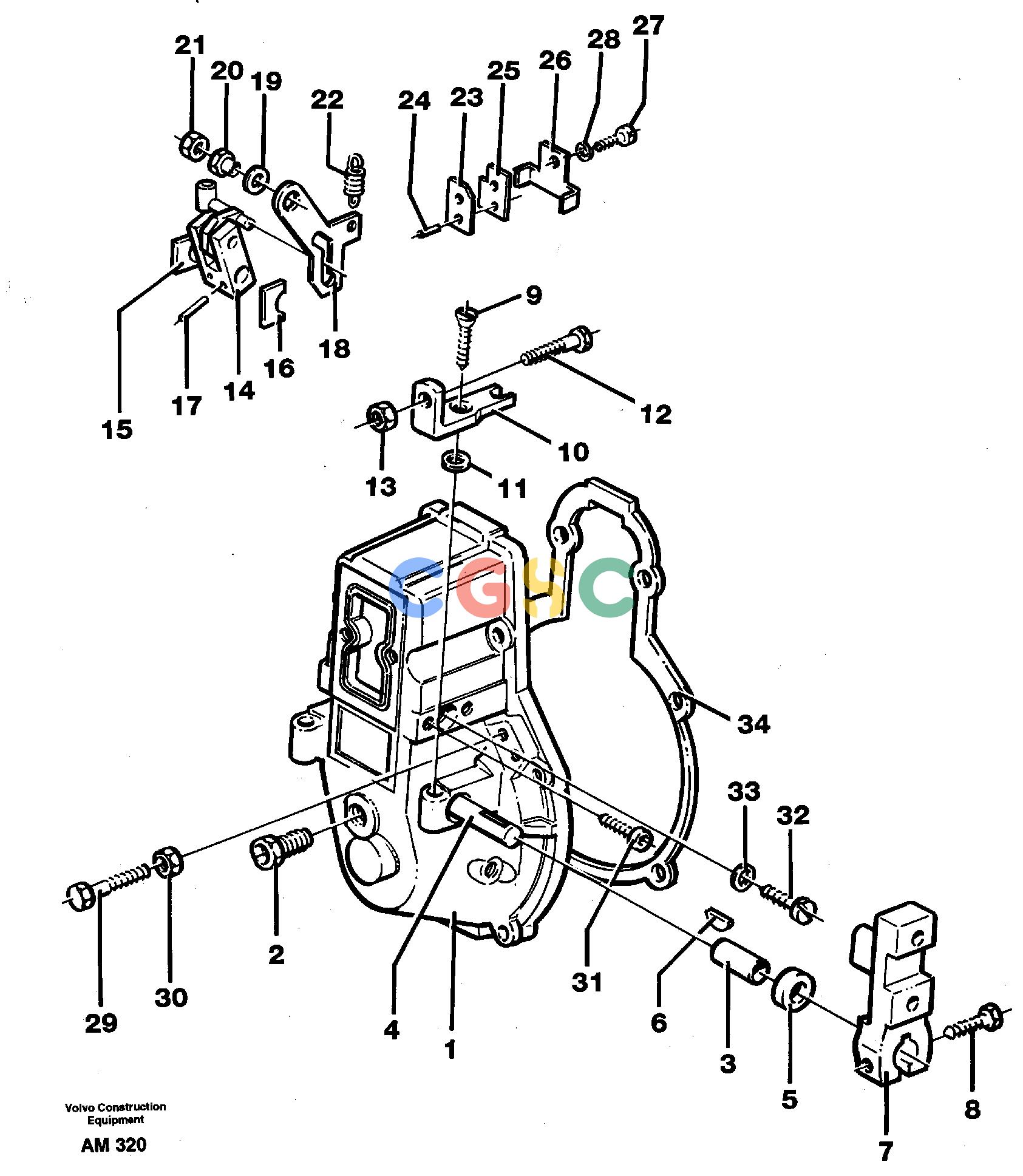

沃尔沃零件查询L330C VOLVO BM Regulator coverVOLVO BM L330C SER NO - 6018711701914-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
568 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE11701914
|
[1] |
Regulator Cover
|
|
| 1. |
|
[1] |
Cover
|
|
| 2. |
VOE863533
|
[1] |
Contact
|
|
| 3. |
VOE1699613
|
[2] |
Bearing bushing
|
|
| 4. |
VOE862441
|
[1] |
Shaft
|
|
| 5. |
VOE1699617
|
[2] |
Seal
|
|
| 6. |
VOE910112
|
[1] |
Woodruff key
|
|
| 7. |
VOE243852
|
[1] |
Hand lever
|
|
| 8. |
VOE1698743
|
[1] |
Screw
|
|
| 9. |
VOE244752
|
[1] |
Screw
|
|
| 10. |
VOE1699815
|
[1] |
Stop
|
|
| 11. |
VOE7011991
|
[1] |
Gasket
|
|
| 12. |
VOE11998187
|
[1] |
Screw
|
|
| 13. |
VOE940197
|
[1] |
Hexagon nut
|
|
| 14. |
VOE1699615
|
[1] |
Spindle arm
|
|
| 15. |
VOE238128
|
[1] |
Washer
|
|
| 16. |
VOE842457
|
[1] |
Plate
|
|
| 17. |
VOE244983
|
[2] |
Pin
|
|
| 18. |
VOE1699614
|
[1] |
Plate
|
|
| 19. |
VOE239007
|
[REQ] |
Spacer
|
|
| 20. |
VOE1699624
|
[1] |
Guide sleeve
|
|
| 21. |
VOE243844
|
[1] |
Nut
|
|
| 22. |
VOE1699622
|
[1] |
Tension spring
|
|
| 23. |
VOE1699623
|
[1] |
Adjusting plate
|
|
| 24. |
VOE233104
|
[1] |
Pin
|
|
| 25. |
VOE1699618
|
[REQ] |
Adjusting plate
|
THICK = 0,20 MM
|
| |
VOE1699619
|
[REQ] |
Adjusting plate
|
THICK = 0,30 MM
|
| |
VOE1699621
|
[REQ] |
Adjusting plate
|
THICK = 0,50 MM
|
| |
VOE1699620
|
[REQ] |
Adjusting plate
|
THICK = 0,80 MM
|
| 26. |
VOE1699625
|
[1] |
Sstiker plate
|
|
| 27. |
VOE842456
|
[1] |
Screw
|
|
| 28. |
VOE955919
|
[1] |
Spring washer
|
|
| 29. |
VOE244990
|
[1] |
Screw
|
|
| 30. |
VOE946035
|
[1] |
Lock nut
|
|
| 31. |
VOE1699626
|
[2] |
Plug
|
|
| 32. |
VOE847518
|
[1] |
Screw
|
|
| 33. |
VOE7011991
|
[1] |
Gasket
|
|
| 34. |
|
[1] |
Gasket
|
|
