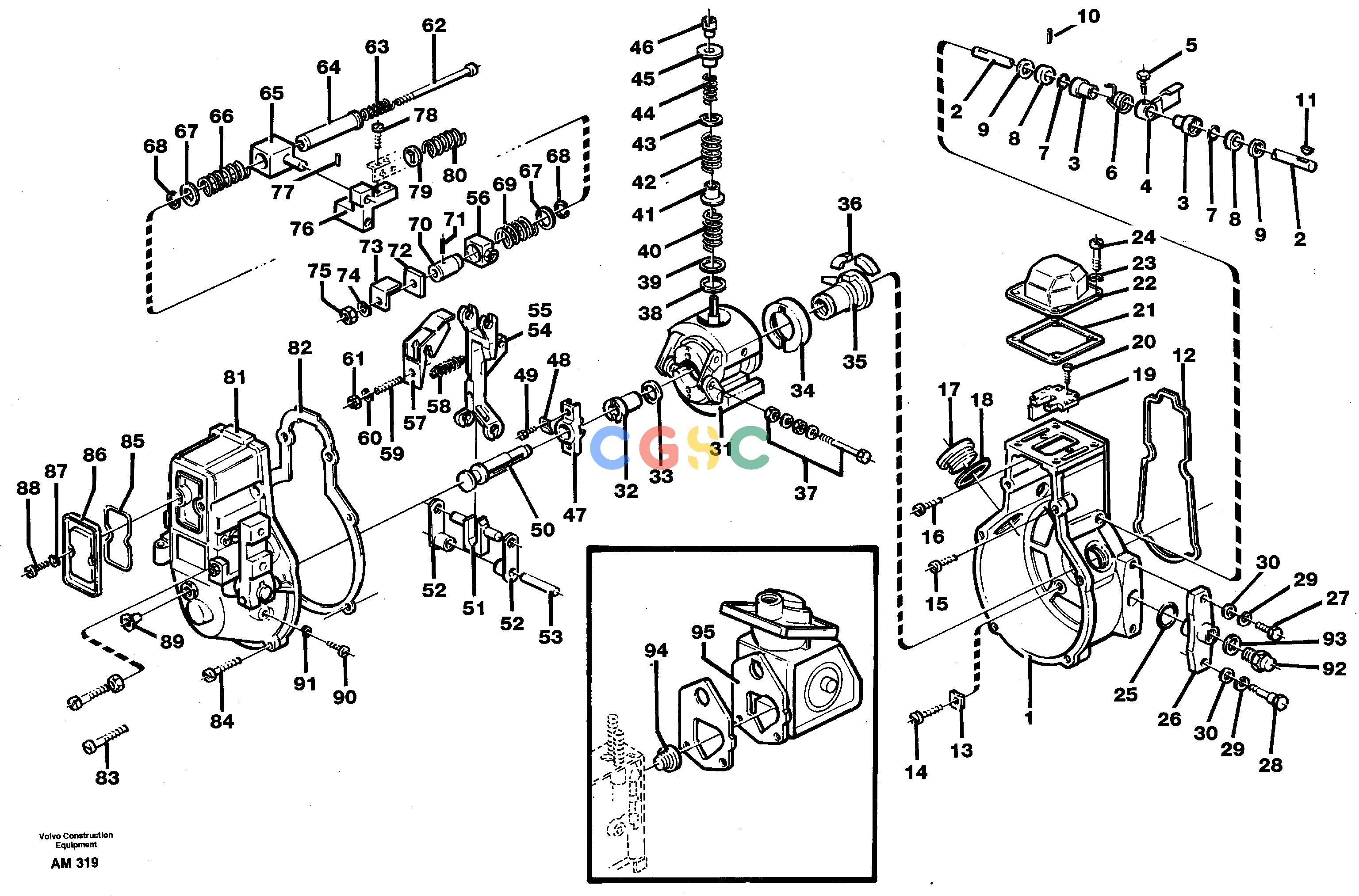

沃尔沃零件查询L330C VOLVO BM Centrifugal governorVOLVO BM L330C SER NO - 6018711999860-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
929 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
|
[1] |
Centrifugal governor
|
|
| 72. |
VOE1699601
|
[1] |
Nut
|
|
| 73. |
VOE1699606
|
[1] |
Sstiker plate
|
|
| 74. |
VOE241705
|
[1] |
Spring ring
|
|
| 75. |
VOE955780
|
[1] |
Hexagon nut
|
|
| 76. |
|
[1] |
Guide lug
|
|
| 77. |
VOE1698742
|
[1] |
Lock Pin
|
|
| 78. |
|
[2] |
Screw
|
|
| 79. |
|
[1] |
Spring Disc
|
|
| 80. |
|
[1] |
Compression spring
|
|
| 81. |
VOE11701914
|
[1] |
Regulator Cover
|
|
| 1. |
VOE11701912
|
[1] |
Regulator housing
|
|
| 82. |
VOE1699627
|
[1] |
Gasket
|
|
| 83. |
VOE1699522
|
[1] |
Screw
|
|
| 84. |
VOE3825265
|
[5] |
Screw
|
|
| 85. |
VOE1699640
|
[1] |
Sealing ring
|
|
| 86. |
VOE1699639
|
[1] |
Cover
|
|
| 87. |
VOE13949607
|
[2] |
Washer
|
|
| 88. |
VOE241779
|
[2] |
Screw
|
|
| 89. |
VOE865113
|
[1] |
Protecting casing
|
|
| 90. |
VOE3094395
|
[2] |
Screw
|
|
| 91. |
VOE3094394
|
[2] |
Seal
|
|
| 2. |
|
[1] |
Shaft
|
|
| 92. |
VOE3094583
|
[1] |
Plug
|
|
| 93. |
VOE13947624
|
[1] |
Plane gasket
|
|
| 94. |
VOE240120
|
[1] |
Bushing
|
|
| 95. |
VOE11701915
|
[1] |
Smoke Limiter
|
|
| 3. |
|
[2] |
Bushing
|
|
| 4. |
VOE244588
|
[1] |
Hand lever
|
|
| 5. |
VOE241102
|
[1] |
Screw
|
|
| 6. |
VOE1697936
|
[1] |
Spring
|
|
| 7. |
VOE244630
|
[2] |
O-ring
|
|
| 8. |
|
[2] |
Washer
|
|
| 9. |
VOE11704613
|
[REQ] |
Washer
|
(233372)
|
| 10. |
VOE244979
|
[2] |
Lock Pin
|
|
| 11. |
VOE7077582
|
[1] |
Key
|
|
| 12. |
VOE11996356
|
[1] |
Sealing ring
|
|
| 13. |
VOE1699559
|
[4] |
Washer
|
|
| 14. |
VOE862428
|
[4] |
Screw
|
|
| 15. |
|
[2] |
Screw
|
|
| 16. |
VOE11994532
|
[2] |
Screw
|
|
| 17. |
VOE240688
|
[2] |
Fitting
|
|
| 18. |
VOE1699836
|
[2] |
Washer
|
|
| 19. |
|
[1] |
Stop, shoulder
|
|
| 20. |
VOE847991
|
[2] |
Screw
|
|
| 21. |
VOE1699638
|
[1] |
Gasket
|
|
| 22. |
VOE1699637
|
[1] |
Cover
|
|
| 23. |
VOE13949607
|
[4] |
Washer
|
|
| 24. |
VOE847452
|
[4] |
Screw
|
|
| 25. |
VOE1698746
|
[1] |
O-ring
|
|
| 26. |
VOE1698744
|
[1] |
Connection flange
|
|
| 27. |
VOE239707
|
[1] |
Screw
|
|
| 28. |
VOE1698745
|
[1] |
Screw
|
|
| 29. |
VOE11701982
|
[2] |
Spring ring
|
|
| 30. |
VOE13955894
|
[2] |
Washer
|
|
| 31. |
VOE3094402
|
[1] |
Regulator hub
|
|
| 32. |
|
[1] |
Nut
|
|
| 33. |
VOE244753
|
[1] |
Shim
|
THICK = 1,60 MM
|
| |
VOE244754
|
[1] |
Shim
|
THICK = 1,63 MM
|
| |
VOE244755
|
[1] |
Shim
|
THICK = 1,66 MM
|
| |
VOE244756
|
[1] |
Shim
|
THICK = 1,69 MM
|
| |
VOE244757
|
[1] |
Shim
|
THICK = 1,72 MM
|
| |
VOE244758
|
[1] |
Shim
|
THICK = 1,75 MM
|
| |
VOE244759
|
[1] |
Shim
|
THICK = 1,78 MM
|
| |
VOE244760
|
[1] |
Shim
|
THICK = 1,81 MM
|
| |
VOE244761
|
[1] |
Shim
|
THICK = 1,84 MM
|
| |
VOE11987537
|
[1] |
Shim
|
THICK = 1,87 MM
|
| |
VOE244763
|
[1] |
Shim
|
THICK = 1,90 MM
|
| |
VOE244764
|
[1] |
Shim
|
THICK = 1,93 MM
|
| |
VOE244765
|
[1] |
Shim
|
THICK = 1,96 MM
|
| |
VOE244766
|
[1] |
Shim
|
THICK = 1,99 MM
|
| |
VOE244767
|
[1] |
Shim
|
THICK = 2,02 MM
|
| |
VOE244768
|
[1] |
Shim
|
THICK = 2,05 MM
|
| |
VOE244769
|
[1] |
Shim
|
THICK = 2,08 MM
|
| |
VOE244770
|
[1] |
Shim
|
THICK = 2,11 MM
|
| |
VOE244771
|
[1] |
Shim
|
THICK = 2,14 MM
|
| 34. |
VOE11998389
|
[1] |
Cap
|
|
| 35. |
VOE1698750
|
[1] |
Companion flange
|
|
| 36. |
VOE864745
|
[4] |
Rubber cushion
|
|
| 37. |
VOE3094403
|
[1] |
Small parts kit
|
|
| 38. |
VOE244745
|
[2] |
Washer
|
|
| 39. |
VOE243087
|
[2] |
Washer
|
|
| 40. |
VOE238612
|
[2] |
Spring
|
|
| 41. |
VOE1698741
|
[2] |
Spring washer
|
|
| 42. |
VOE244621
|
[2] |
Compression spring
|
|
| 43. |
VOE239300
|
[2] |
Washer
|
|
| 44. |
VOE3094385
|
[2] |
Compression spring
|
|
| 45. |
VOE244622
|
[2] |
Spring disc
|
|
| 46. |
VOE244623
|
[2] |
Round nut
|
|
| 47. |
VOE1698514
|
[1] |
Bushing
|
|
| 48. |
VOE240565
|
[2] |
Striker plate
|
|
| 49. |
VOE13955271
|
[2] |
Screw
|
|
| 50. |
VOE1699632
|
[1] |
Bearing bolt
|
|
| 51. |
VOE1699633
|
[1] |
Link
|
|
| 52. |
VOE1699634
|
[2] |
Steering arm
|
|
| 53. |
VOE1699611
|
[1] |
Pin
|
|
| 54. |
VOE11701913
|
[1] |
Link Yoke
|
|
| 55. |
VOE1699591
|
[1] |
Control arm
|
|
| 56. |
VOE1699592
|
[1] |
Link
|
|
| 57. |
VOE1699593
|
[1] |
Rocker arm
|
|
| 58. |
VOE1699602
|
[1] |
Spring
|
|
| 59. |
VOE1699605
|
[1] |
Stud
|
|
| 60. |
VOE955919
|
[1] |
Spring washer
|
|
| 61. |
VOE940197
|
[1] |
Hexagon nut
|
|
| 62. |
|
[1] |
Screw
|
|
| 63. |
VOE1699598
|
[1] |
Spring
|
|
| 64. |
|
[1] |
Spring sleeve
|
|
| 65. |
|
[1] |
Dog
|
|
| 66. |
|
[1] |
Spring
|
|
| 67. |
VOE239009
|
[2] |
Shim
|
|
| 68. |
|
[2] |
Lock ring
|
|
| 69. |
VOE1699595
|
[1] |
Spring
|
|
| 70. |
|
[1] |
Bushing
|
|
| 71. |
VOE1699600
|
[1] |
Pin
|
|
