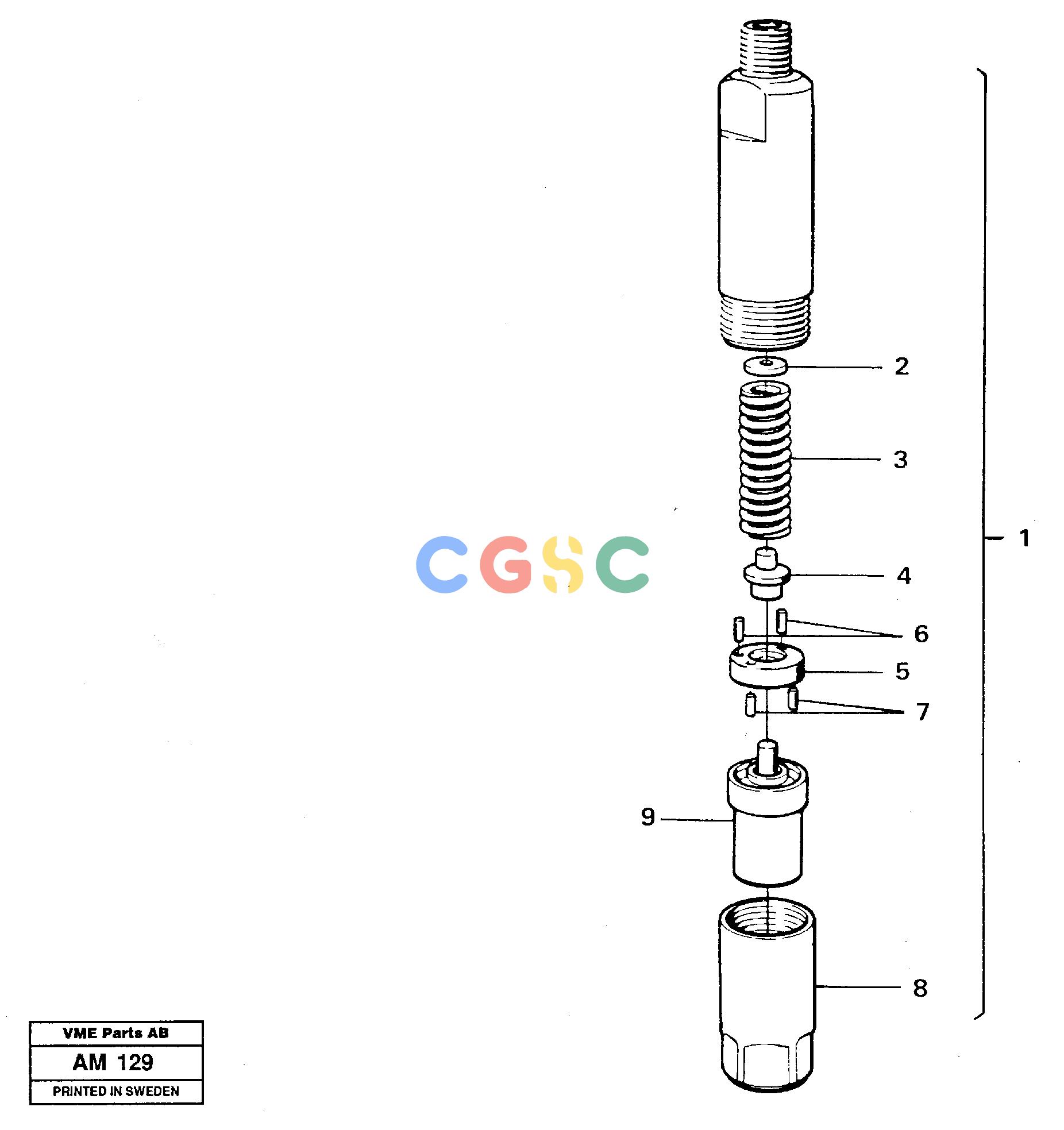

Pos.	Part No	Qty	Parts name	Comments
	VOE1556446	[1]	Injector
1.	VOE1556158	[1]	Nozzle retainer
2.	VOE6231515	[REQ]	Shim	THICK=0,80 MM
	VOE6231516	[REQ]	Shim	THICK=0,84 MM
	VOE6231517	[REQ]	Shim	THICK=0,88 MM
	VOE6231518	[REQ]	Shim	THICK=0,90 MM
	VOE6231519	[REQ]	Shim	THICK=0,94 MM
	VOE6231520	[REQ]	Shim	THICK=0,98 MM
	VOE6212455	[REQ]	Shim	THICK=1,00 MM
	VOE870258	[REQ]	Thrust washer	THICK=1,04 MM
	VOE870259	[REQ]	Thrust washer	THICK=1,10 MM
	VOE870260	[REQ]	Thrust washer	THICK=1,14 MM
	VOE6231525	[REQ]	Shim	THICK=1,18 MM
	VOE870261	[REQ]	Thrust washer	THICK=1,20 MM
	VOE870262	[REQ]	Thrust washer	THICK=1,24 MM
	VOE6212392	[REQ]	Thrust washer	THICK=1,30 MM
	VOE870264	[REQ]	Thrust washer	THICK=1,34 MM
	VOE6231531	[REQ]	Shim	THICK=1,38 MM
	VOE870265	[REQ]	Thrust washer	THICK=1,40 MM
	VOE6212562	[REQ]	Thrust washer	THICK=1,44 MM
	VOE6231620	[REQ]	Shim	THICK=1,48 MM
	VOE6212762	[REQ]	Washer	THICK=1,50 MM
	VOE6212456	[REQ]	Shim	THICK=1,54 MM
	VOE870269	[REQ]	Thrust washer	THICK=1,60 MM
	VOE6231623	[REQ]	Shim	THICK=1,64 MM
	VOE6231646	[REQ]	Shim	THICK=1,68 MM
	VOE870271	[REQ]	Thrust washer	THICK=1,70 MM
	VOE870272	[REQ]	Thrust washer	THICK=1,74 MM
	VOE6212457	[REQ]	Shim	THICK=1,80 MM
	VOE870274	[REQ]	Thrust washer	THICK=1,84 MM
	VOE870275	[REQ]	Thrust washer	THICK=1,90 MM
	VOE870276	[REQ]	Thrust washer	THICK=1,94 MM
	VOE6231655	[REQ]	Shim	THICK=1,98 MM
3.	VOE7243368	[1]	Spring
4.	VOE7243367	[1]	Push rod
5.	VOE11999322	[1]	Washer
6.	VOE846293	[2]	Pin
7.	VOE844339	[2]	Pin
8.	VOE244995	[1]	Cap nut
9.	VOE1556448	[1]	Nozzle
