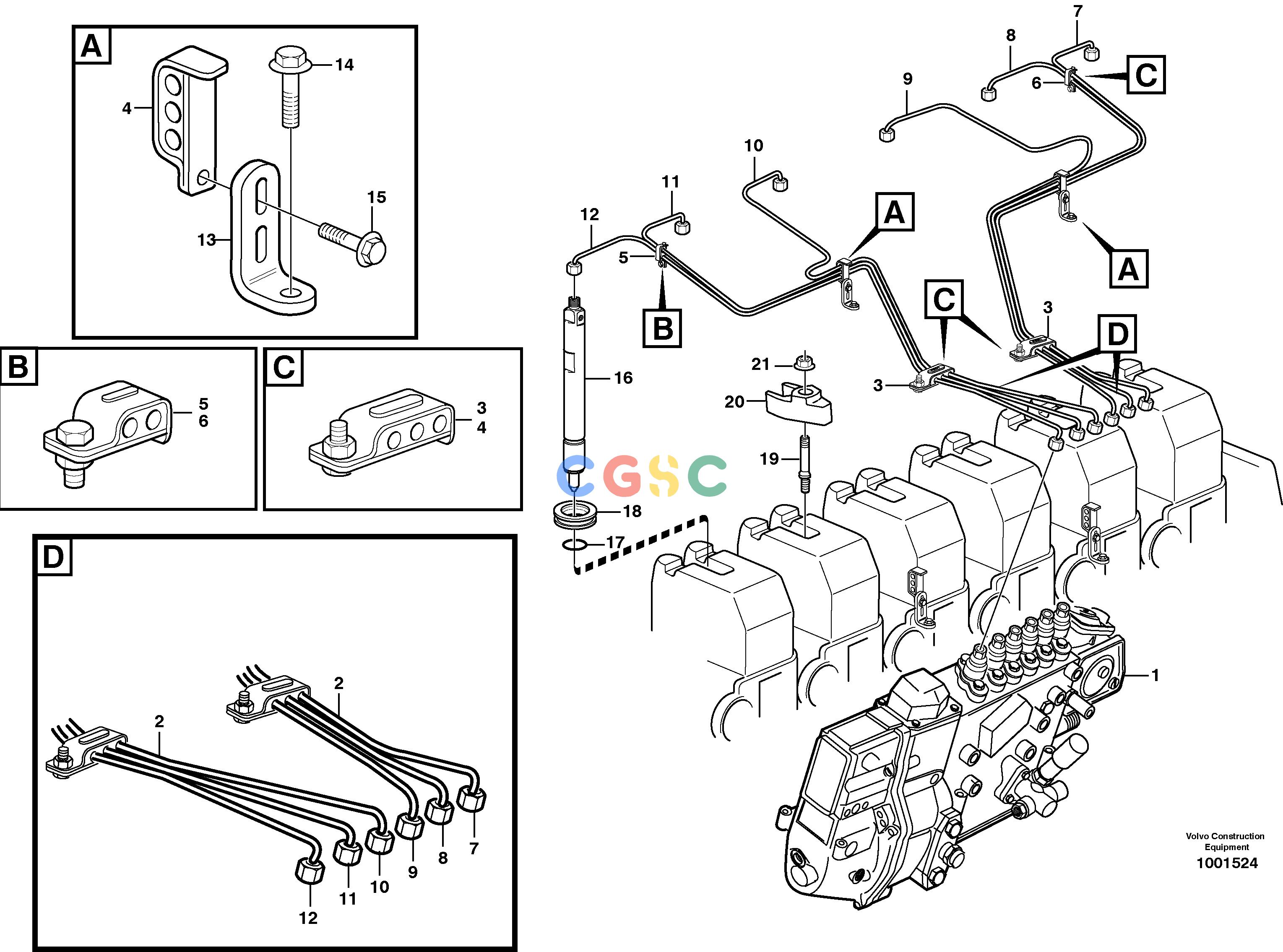

沃尔沃零件查询L330C VOLVO BM Fuel pipes: injectorVOLVO BM L330C SER NO - 60187 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
334 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
Injection pump
|
|
| 2. |
VOE3825417
|
[1] |
Delivery pipe kit
|
|
| 3. |
VOE8194328
|
[2] |
Clamp
|
|
| 4. |
VOE8194352
|
[2] |
Clamp
|
|
| 5. |
VOE8194351
|
[1] |
Clamp
|
|
| 6. |
VOE8194327
|
[1] |
Clamp
|
|
| 7. |
VOE3825621
|
[1] |
Delivery pipe
|
|
| 8. |
VOE3825622
|
[1] |
Delivery pipe
|
|
| 9. |
VOE3825623
|
[1] |
Delivery pipe
|
|
| 10. |
VOE3825624
|
[1] |
Delivery pipe
|
|
| 11. |
VOE3825625
|
[1] |
Delivery pipe
|
|
| 12. |
VOE3825626
|
[1] |
Delivery pipe
|
|
| 13. |
VOE13965552
|
[2] |
Bracket
|
|
| 14. |
VOE13944926
|
[2] |
Screw
|
|
| 15. |
VOE13946544
|
[2] |
Screw
|
|
| 16. |
|
|
Injector
|
|
| 17. |
VOE1543574
|
[6] |
Ring
|
|
| 18. |
VOE11999826
|
[6] |
Sealing ring
|
|
| 19. |
VOE470560
|
[6] |
Stud
|
|
| 20. |
VOE1543497
|
[6] |
Yoke
|
|
| 21. |
VOE1543499
|
[6] |
Flange nut
|
|
