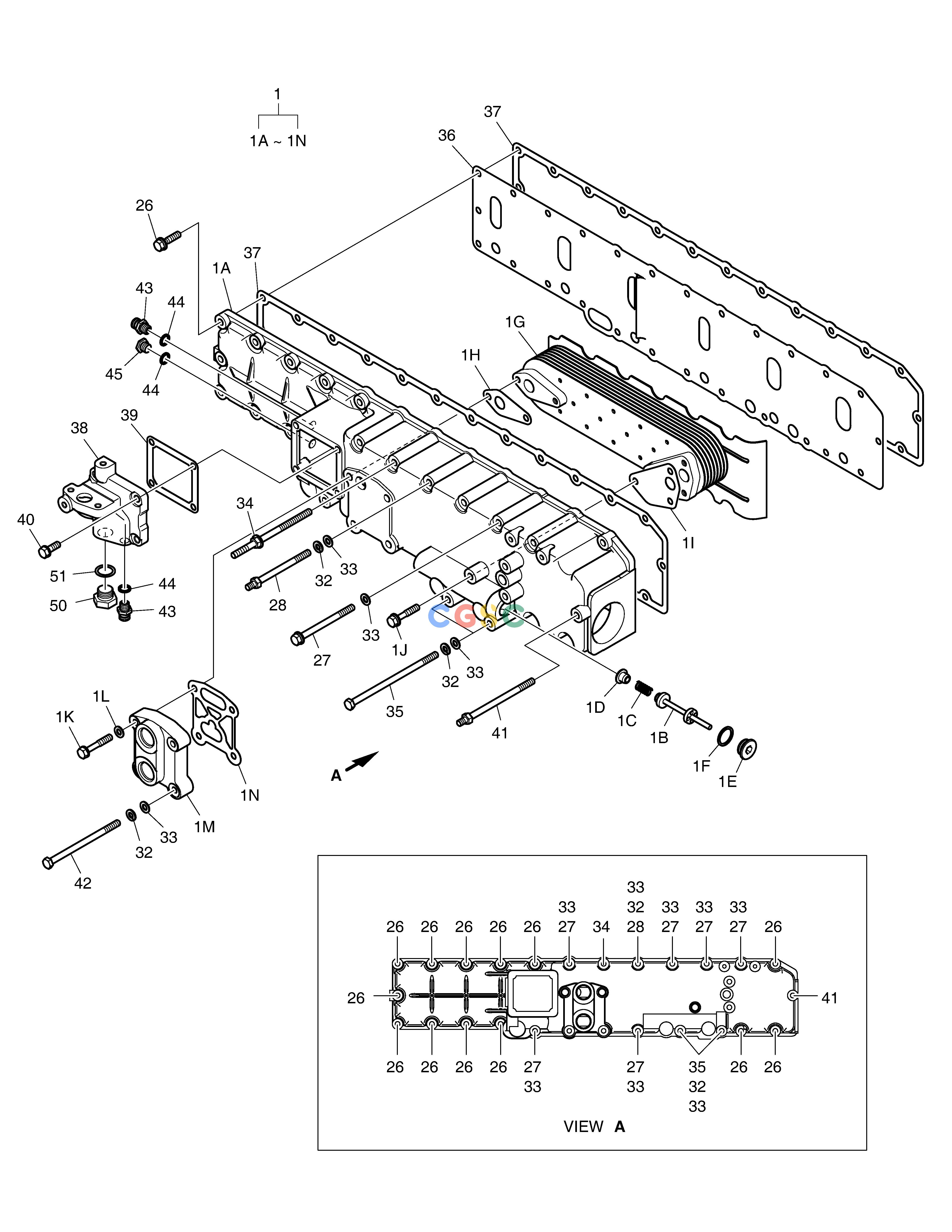

斗山零件查询OIL COOLER DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
200 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
400206-00098A
|
[1] |
|
|
| 1A. |
110975-00004A
|
[1] |
|
|
| 1B. |
65.05410-0008A
|
[1] |
PLUNGER
|
|
| 1C. |
65.97601-0120
|
[1] |
SPRING
|
|
| 1D. |
65.90701-0095
|
[1] |
SEAT,SPRING
|
|
| 1E. |
65.54109-0005A
|
[1] |
. SCREW;PLUG M22X1.5
|
|
| 1F. |
06.56190-0718
|
[1] |
RING;SEAL
|
|
| 1G. |
65.05606-5030A
|
[1] |
ELEMENT;OIL COOLER
|
|
| 1H. |
65.05902-0017
|
[1] |
GASKET;OIL COOLER
|
|
| 1I. |
65.05902-0018
|
[1] |
GASKET;OIL COOLER
|
|
| 1J. |
06.01923-3120
|
[3] |
. BOLT ASS`Y M8X45
|
|
| 1K. |
06.01913-3121
|
[2] |
BOLT ASS`Y M8X50
|
|
| 1L. |
06.15010-2311
|
[2] |
WASHER
|
|
| 1M. |
430215-00061
|
[1] |
|
|
| 1N. |
65.05901-0026
|
[1] |
GASKET;OIL FILTER
|
|
| 26. |
06.01923-3118
|
[13] |
BOLT ASS`Y M8X35
|
|
| 27. |
06.01913-3131
|
[6] |
BOLT ASS'Y M8X100
|
|
| 28. |
65.90201-0124
|
[1] |
BOLT;STUD M8X100
|
|
| 32. |
06.16731-2107
|
[5] |
WASHER
|
|
| 33. |
06.15010-2311
|
[11] |
WASHER
|
|
| 34. |
65.90441-0016
|
[1] |
BOLT;SPACER M8X97
|
|
| 35. |
06.01013-9131
|
[2] |
|
|
| 36. |
250101-00009
|
[1] |
|
|
| 37. |
400621-00010
|
[2] |
|
|
| 38. |
110509-00009A
|
[1] |
|
|
| 39. |
400602-00148
|
[1] |
|
|
| 40. |
06.01913-3115
|
[4] |
BOLT ASS`Y M8X25
|
|
| 41. |
120122-00009
|
[1] |
|
|
| 42. |
06.01013-9142
|
[2] |
BOLT;HEX. M8X135
|
|
| 43. |
430201-00162
|
[2] |
|
|
| 44. |
06.56190-0703
|
[3] |
RING;SEAL
|
|
| 45. |
06.08041-2202
|
[1] |
SCREW;PLUG M12X1.5
|
|
| 50. |
65.90310-0050B
|
[1] |
SCREW;PLUG M20X1.5
|
|
| 51. |
06.56190-0715
|
[1] |
. RING;SEAL
|
|
