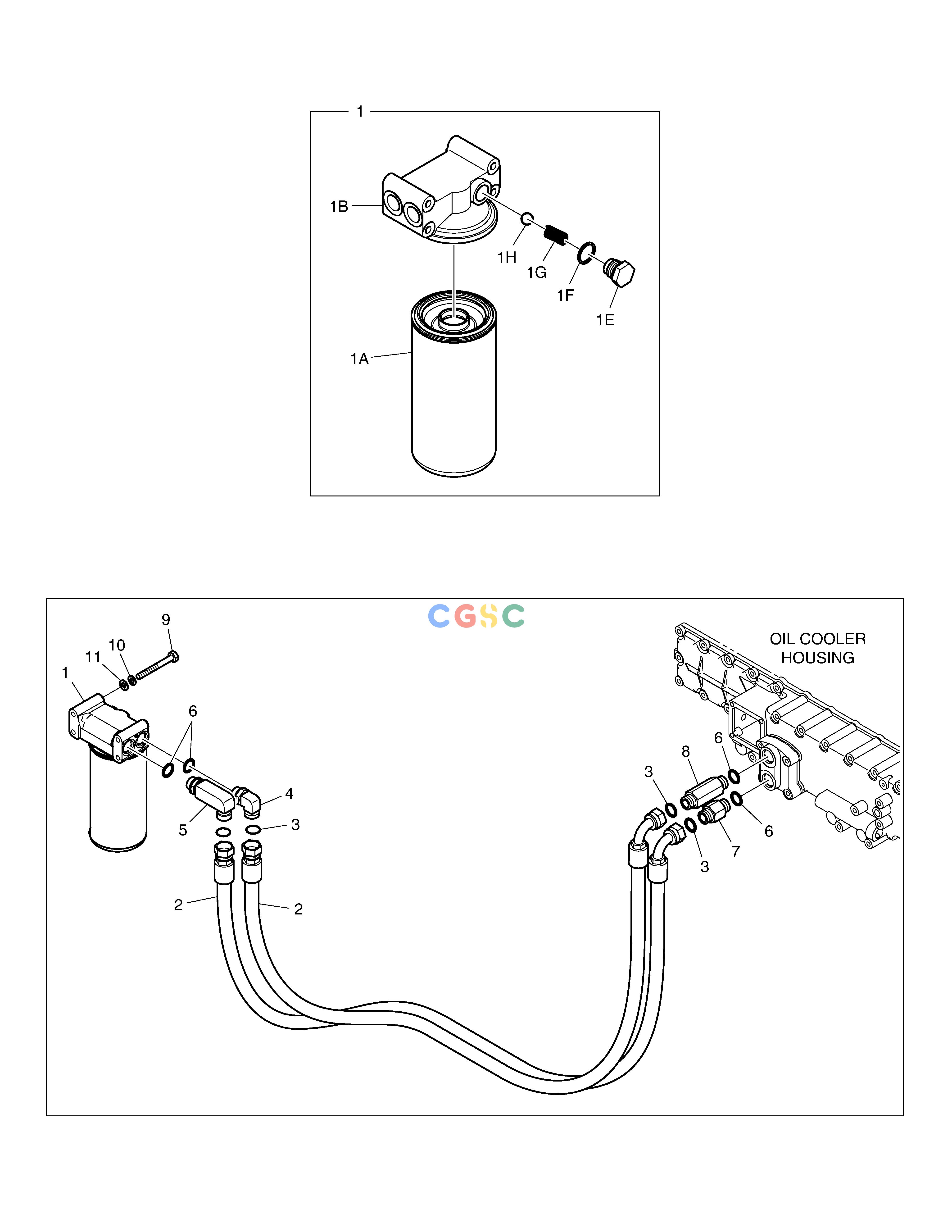

斗山零件查询OIL FILTER DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
771 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
400404-00018
|
[1] |
|
|
| 10. |
06.16731-2108
|
[2] |
WASHER;SPRING
|
|
| 11. |
06.15010-2312
|
[2] |
WASHER;PLAIN
|
|
| 1A. |
65.05510-5026B
|
[1] |
CARTRIDGE;OIL FILTER
|
|
| 1B. |
400505-00016
|
[1] |
|
|
| 1E. |
65.90310-0115
|
[1] |
. PLUG
|
|
| 1F. |
06.56190-0726
|
[1] |
. SEAL;RING
|
|
| 1G. |
65.97601-0075
|
[1] |
. SPRING
|
|
| 1H. |
06.31641-0433
|
[1] |
. BALL;STEEL
|
|
| 2. |
420107-00287
|
[2] |
|
|
| 3. |
401002-00224
|
[4] |
|
|
| 4. |
430201-00194
|
[1] |
|
|
| 5. |
430201-00195
|
[1] |
|
|
| 6. |
401002-00225
|
[4] |
|
|
| 7. |
430201-00592
|
[1] |
|
|
| 8. |
430201-00593
|
[1] |
|
|
| 9. |
06.01013-9225
|
[2] |
|
|
