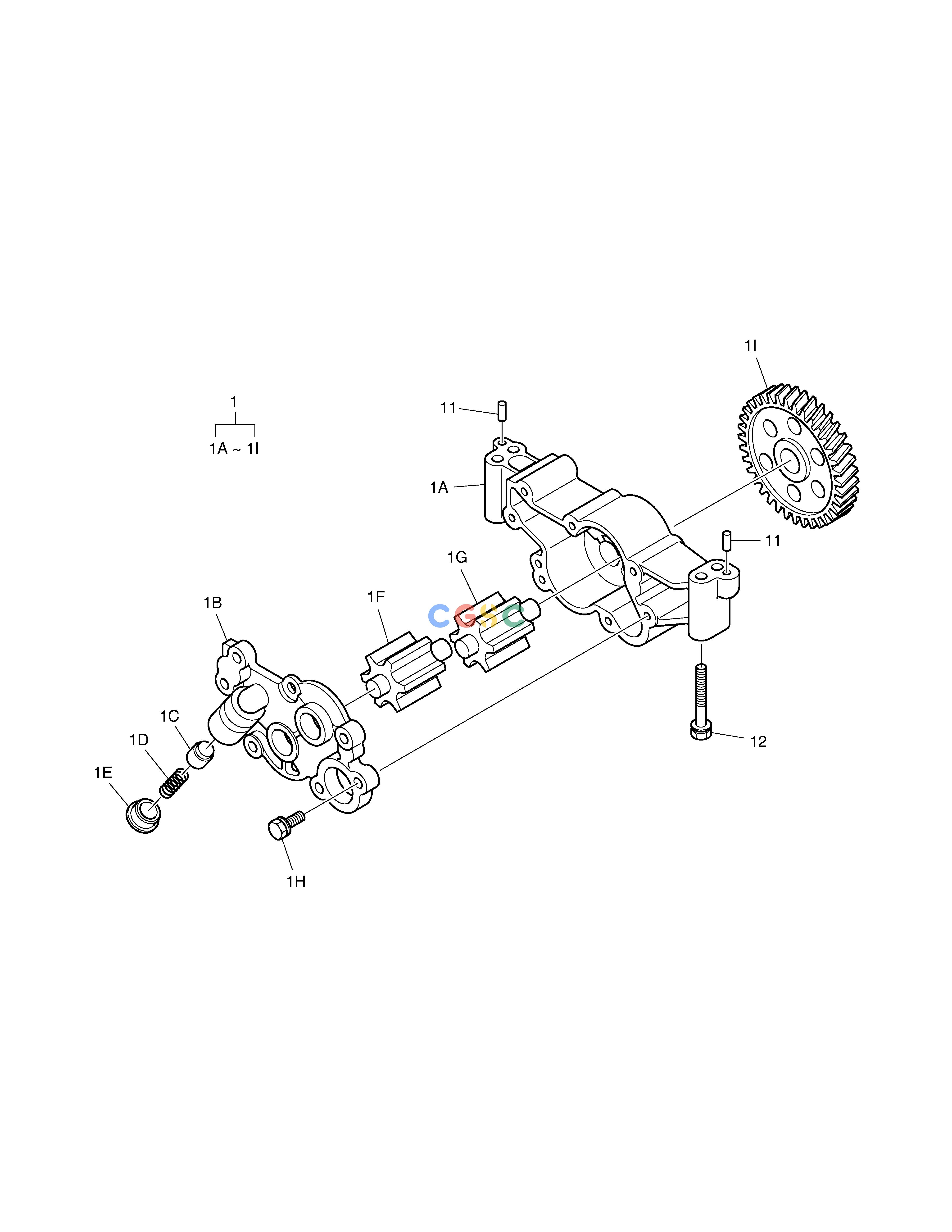

斗山零件查询OIL PUMP DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
893 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.05100-6052B
|
[1] |
OIL PUMP ASS`Y
|
|
| 11. |
06.22022-0907
|
[2] |
. PIN;DOWEL
|
|
| 12. |
06.01923-3125
|
[4] |
. BOLT ASS`Y M8X70
|
|
| 1A. |
65.05102-0027A
|
[1] |
HOUSING;OIL PUMP
|
|
| 1B. |
65.05103-0032A
|
[1] |
COVER;OIL PUMP
|
|
| 1C. |
65.05410-0007
|
[1] |
PLUNGER;VALVE
|
|
| 1D. |
65.97601-0105
|
[1] |
SPRING;COMP.
|
|
| 1E. |
65.90310-0104
|
[1] |
SCREW;PLUG
|
|
| 1F. |
65.05104-0006
|
[1] |
GEAR;OIL PUMP
|
|
| 1G. |
65.05104-0005
|
[1] |
GEAR;OIL PUMP
|
|
| 1H. |
06.01923-3116
|
[5] |
BOLT ASS`Y M8X28
|
|
| 1I. |
65.05201-0014B
|
[1] |
GEAR;OIL PUMP DRIVE
|
|
