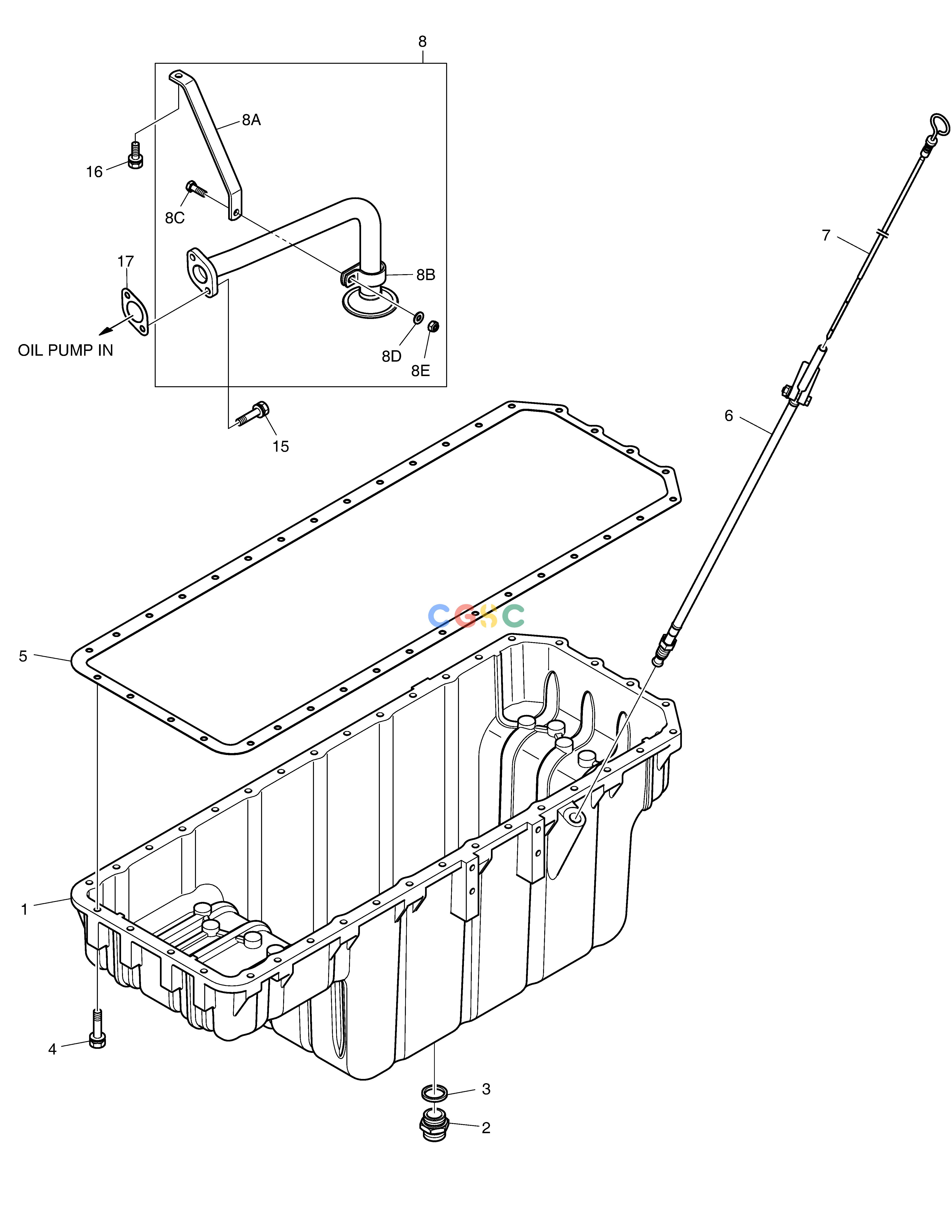

斗山零件查询OIL PAN DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
563 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
150119-00054
|
[1] |
|
|
| 15. |
06.01913-3119
|
[2] |
BOLT ASS`Y M8X40
|
|
| 16. |
06.01913-3113
|
[1] |
.. BOLT ASS`Y M8X20
|
|
| 17. |
65.05901-0027
|
[1] |
GASKET
|
|
| 2. |
65.98125-5022A
|
[1] |
JOINT;DRAIN
|
|
| 3. |
06.56190-0732
|
[1] |
SEAL;RING
|
|
| 4. |
65.90020-0143
|
[36] |
BOLT ASS'Y M8X40
|
120106-00197
|
| 4. |
120106-00197
|
[36] |
|
|
| 5. |
400604-00025
|
[1] |
GASKET,OIL PAN
|
|
| 6. |
65.05806-5116A
|
[1] |
GUIDE TUBE;OIL LEVEL GAUGE
|
|
| 7. |
65.05805-5299
|
[1] |
GAUGE;OIL LEVEL
|
|
| 8. |
65.05701-6106
|
[1] |
PIPE;OIL
|
|
| 8A. |
65.05740-0037
|
[1] |
BRACKET;OIL PIPE
|
|
| 8B. |
65.97401-0080
|
[1] |
CLIP;PIPE
|
|
| 8C. |
06.01283-7115
|
[1] |
BOLT M8X25
|
|
| 8D. |
06.15010-2311
|
[1] |
WASHER
|
|
| 8E. |
65.90510-0012
|
[1] |
NUT
|
|
