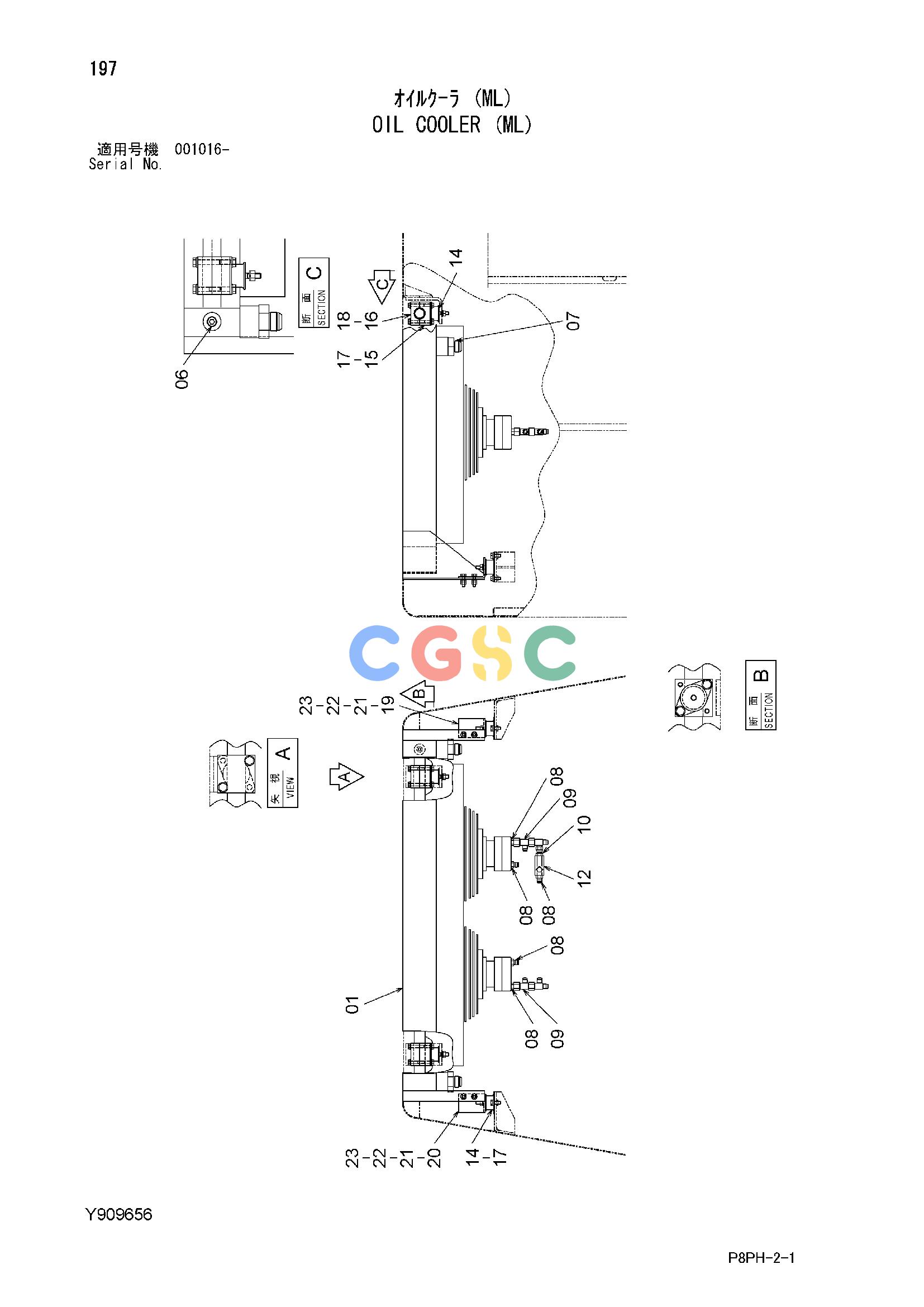

日立零件查询（AR2000）OIL COOLER (ML) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
822 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | Y411198 | [1] | COOLER;OIL | |
| 06. | 94-2013 | [1] | PLUG | |
| 07. | Y411138 | [2] | ADAPTER;S | |
| 08. | 4236730 | [5] | ADAPTER;S | |
| 08A. | U10778U | [1] | O-RING | |
| 09. | 4426339 | [4] | UNION;M | |
| 10. | Y411672 | [1] | ADAPTER;S | |
| 12. | Y412012 | [1] | VALVE;CHECK | |
| 14. | Y412655 | [4] | RUBBER | |
| 15. | Y412651 | [2] | BLOCK | |
| 16. | Y412652 | [2] | BLOCK | |
| 17. | J271030 | [8] | BOLT;SEMS | |
| 17A. | J901030 | [1] | BOLT | |
| 17B. | J222010 | [1] | WASHER | |
| 18. | J271055 | [4] | BOLT;SEMS | |
| 18A. | J901055 | [1] | BOLT | |
| 18B. | J222010 | [1] | WASHER | |
| 19. | Y412653 | [1] | BRACKET | |
| 20. | Y412654 | [1] | BRACKET | |
| 21. | J901040 | [4] | BOLT | |
| 22. | A590110 | [8] | WASHER;PLANE | |
| 23. | J950010 | [8] | NUT | |
