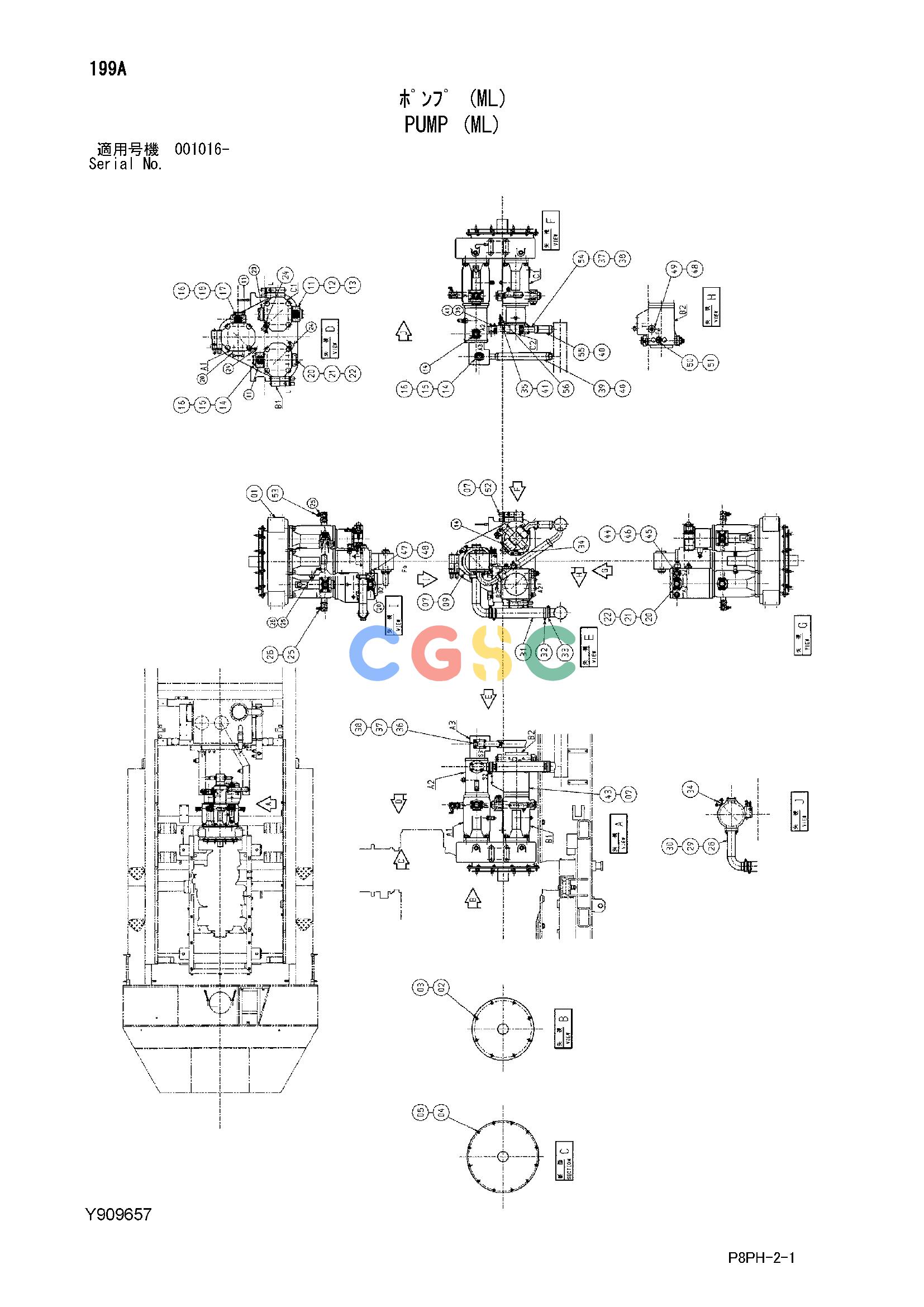

日立零件查询（AR2000）PUMP (ML) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
459 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | Y411260 | [1] | PUMP DRIVE (TRIPLE) | |
| 02. | 445338 | [8] | BOLT;SOCKET | |
| 03. | J219084 | [8] | WASHER;SPRING | |
| 04. | 4466599 | [12] | BOLT | |
| 05. | J219167 | [12] | WASHER;SPRING | |
| 07. | A590922 | [12] | WASHER;SPRING | |
| 09. | Y411161 | [1] | PUMP | |
| 11. | Y301739 | [3] | MANIFOLD;SUC. | |
| 12. | A811075 | [3] | O-RING | |
| 13. | J781260 | [12] | BOLT;SOCKET | |
| 14. | 962453 | [12] | FLANGE;SPLIT | |
| 15. | 966993 | [6] | O-RING | |
| 16. | J781025 | [36] | BOLT;SOCKET | |
| 17. | 986910 | [6] | FLANGE;SPLIT | |
| 18. | 971489 | [3] | O-RING | |
| 20. | 4089703 | [10] | FLANGE;SPLIT | |
| 21. | 4508805 | [5] | O-RING | |
| 22. | J781445 | [20] | BOLT;SOCKET | |
| 24. | Y412613 | [3] | ELBOW;S | |
| 25. | Y413252 | [3] | REDUCER;S | |
| 26. | A852322 | [2] | ELBOW;S | |
| 26A. | 957366 | [1] | O-RING | |
| 28. | Y802139 | [1] | PIPE;SUCTION | |
| 29. | A811060 | [1] | O-RING | |
| 30. | J781235 | [4] | BOLT;SOCKET | |
| 31. | 4213357 | [1] | HOSE;RUBBER | |
| 32. | 4263764 | [2] | CLAMP;HOSE | |
| 33. | 4504491 | [2] | CLAMP;HOSE | |
| 34. | Y412616 | [2] | TEE;S | |
| 35. | 4304748 | [2] | ADAPTER;S | |
| 36. | Y802140 | [1] | PIPE;SUCTION | |
| 37. | A811050 | [2] | O-RING | |
| 38. | J781225 | [8] | BOLT;SOCKET | |
| 39. | Y412668 | [1] | HOSE;RUBBER | |
| 40. | 4282474 | [4] | CLAMP;HOSE | |
| 41. | 4140470 | [2] | O-RING | |
| 43. | Y411162 | [1] | PUMP;PISTON | |
| 44. | 4214444 | [1] | ADAPTER;S | |
| 44A. | 4506429 | [1] | O-RING | |
| 45. | Y413172 | [1] | REDUCER | |
| 46. | Y412709 | [1] | O-RING | |
| 47. | Y412641 | [1] | ADAPTER;S | |
| 48. | Y412708 | [2] | O-RING | |
| 49. | Y412642 | [1] | ADAPTER;S | |
| 50. | Y413186 | [1] | REDUCER | |
| 51. | 4317612 | [1] | ADAPTER;S | |
| 51A. | 4506424 | [1] | O-RING | |
| 52. | Y411163 | [1] | PUMP;PISTON | |
| 53. | A852122 | [1] | ADAPTER;S | |
| 53A. | 4509180 | [1] | O-RING | |
| 54. | Y802141 | [1] | PIPE;SUCTION | |
| 55. | 4427550 | [1] | HOSE;RUBBER | |
| 56. | 4252786 | [1] | TEE;S | |
