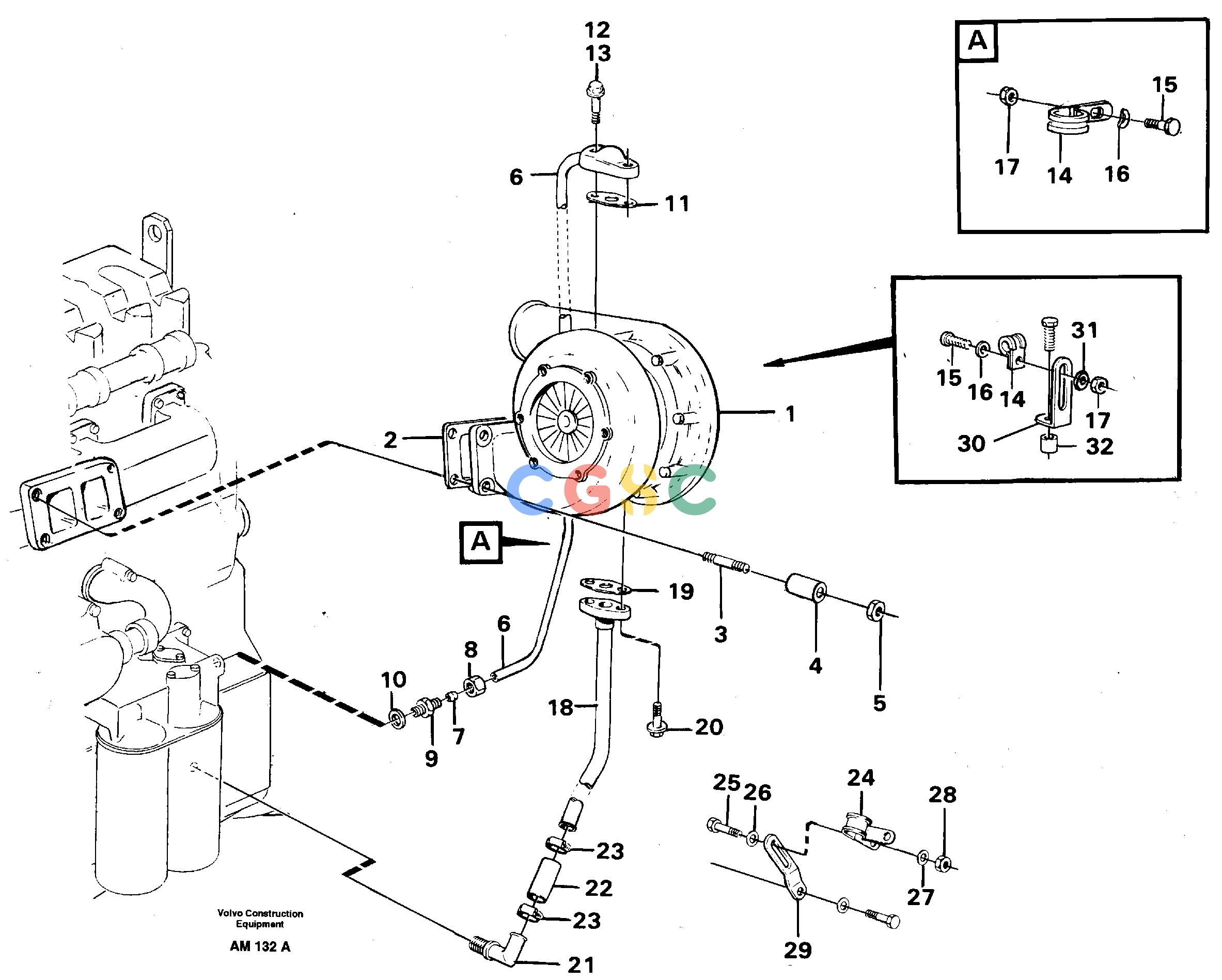

沃尔沃零件查询L330C VOLVO BM Turbocharger with fitting partsVOLVO BM L330C SER NO - 60187 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
509 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11033755
|
[1] |
Turbocharger
|
|
| 2. |
VOE20784537
|
[1] |
Gasket
|
|
| 3. |
VOE13977298
|
[4] |
Stud
|
|
| 4. |
VOE470467
|
[4] |
Sleeve
|
|
| 5. |
VOE1543499
|
[4] |
Flange nut
|
|
| 6. |
VOE11032041
|
[1] |
Oil pipe
|
|
| 7. |
VOE956970
|
[1] |
Ferrule
|
|
| 8. |
VOE941331
|
[1] |
Fitting nut
|
|
| 9. |
VOE941330
|
[1] |
Nipple
|
|
| 10. |
VOE13947624
|
[1] |
Plane gasket
|
|
| 11. |
VOE420641
|
[1] |
Gasket
|
|
| 12. |
VOE959238
|
[1] |
Hex. socket screw
|
|
| 13. |
VOE959239
|
[1] |
Hex. socket screw
|
|
| 14. |
VOE952626
|
[2] |
Clamp
|
|
| 15. |
VOE13946544
|
[2] |
Screw
|
|
| 16. |
VOE955895
|
[2] |
Plain washer
|
|
| 17. |
VOE13945407
|
[2] |
Nut
|
|
| 18. |
VOE11032300
|
[1] |
Pipe
|
|
| 19. |
VOE1543360
|
[1] |
Gasket
|
|
| 20. |
VOE13970947
|
[2] |
Hexagon screw
|
|
| 21. |
VOE13980182
|
[1] |
Elbow nipple
|
|
| 22. |
VOE466328
|
[1] |
Hose
|
|
| 23. |
VOE13943474
|
[2] |
Hose clamp
|
|
| 24. |
VOE952631
|
[1] |
Clamp
|
|
| 25. |
VOE13946544
|
[1] |
Screw
|
|
| 26. |
VOE955893
|
[1] |
Plain washer
|
|
| 27. |
VOE941908
|
[2] |
Spring washer
|
|
| 28. |
VOE13945407
|
[1] |
Nut
|
|
| 29. |
VOE13965540
|
[1] |
Bracket
|
|
| 30. |
VOE13965556
|
[1] |
Bracket
|
|
| 31. |
VOE13955894
|
[2] |
Washer
|
|
| 32. |
VOE842350
|
[1] |
Spacer sleeve
|
|
