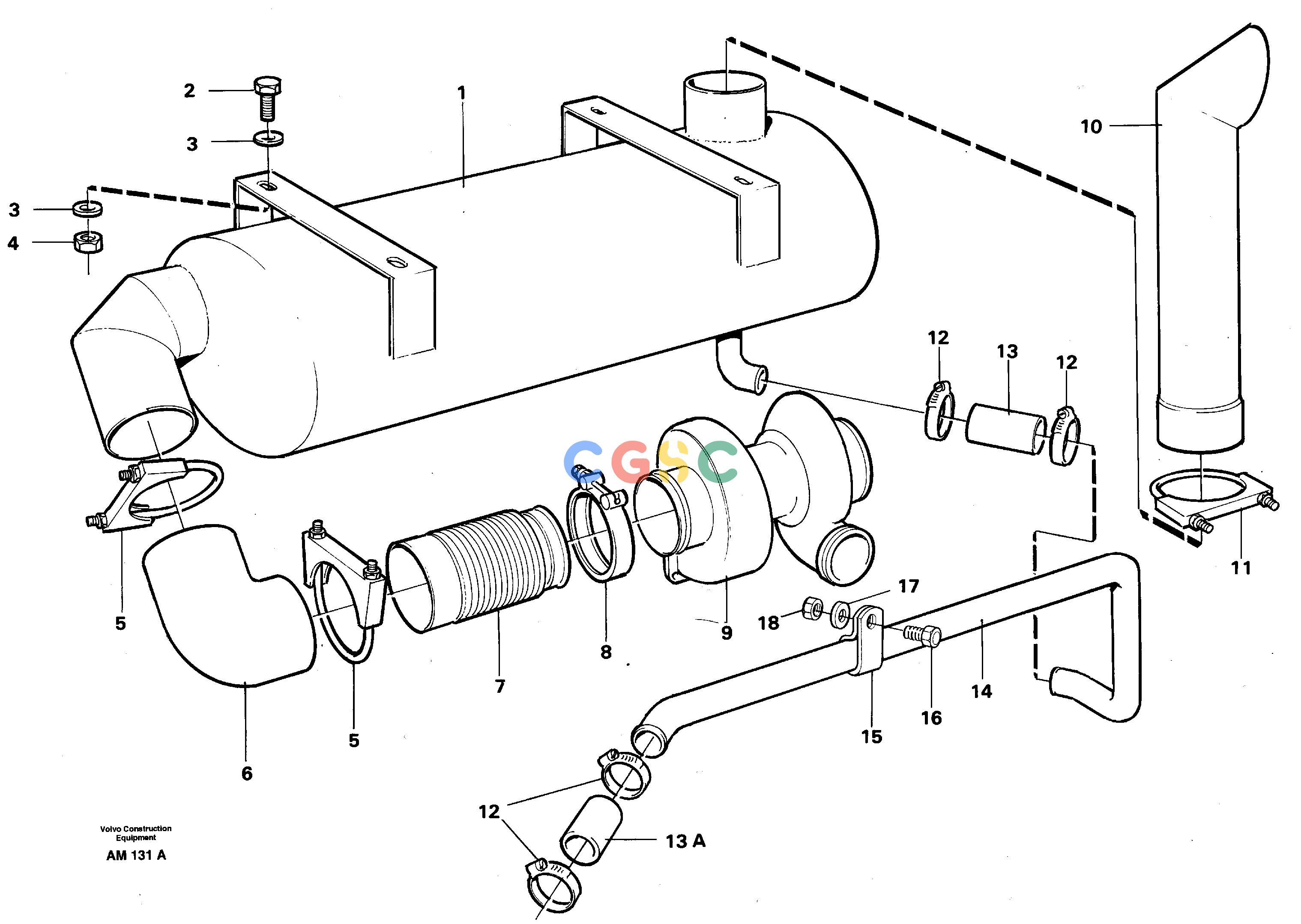

沃尔沃零件查询L330C VOLVO BM Exhaust systemVOLVO BM L330C SER NO - 60187 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
991 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11079519
|
[1] |
Silencer
|
SER NO - 60078
|
| |
VOE11109323
|
[1] |
Silencer
|
SER NO 60079 -
|
| 2. |
VOE13970972
|
[4] |
Hexagon screw
|
|
| 3. |
VOE60110348
|
[8] |
Washer
|
|
| 4. |
VOE971099
|
[4] |
Flange lock nut
|
|
| 5. |
VOE1500453
|
[2] |
Clamp
|
|
| 6. |
VOE2530365
|
[1] |
Elbow
|
|
| 7. |
VOE11141434
|
[1] |
Exhaust pipe
|
|
| 8. |
VOE1524268
|
[1] |
Clamp
|
|
| 9. |
|
[1] |
Turbocharger
|
|
| 10. |
VOE11079545
|
[1] |
Exhaust pipe
|
|
| 11. |
VOE1500453
|
[1] |
Clamp
|
|
| 12. |
VOE11109306
|
[0004] |
Clamp
|
|
| 13. |
VOE11160764
|
[REQ] |
Radiator hose
|
L = 152 MM (0,5 FT)
|
| 13A. |
VOE11160764
|
[REQ] |
Radiator hose
|
L = 152 MM (0,5 FT)
|
| 14. |
VOE11079635
|
[1] |
Tube
|
|
| 15. |
VOE13808116
|
[1] |
Clamp
|
|
| 16. |
VOE946329
|
[1] |
Flange screw
|
|
| 17. |
VOE976945
|
[1] |
Washer
|
|
| 18. |
VOE971071
|
[1] |
Hexagon nut
|
|
