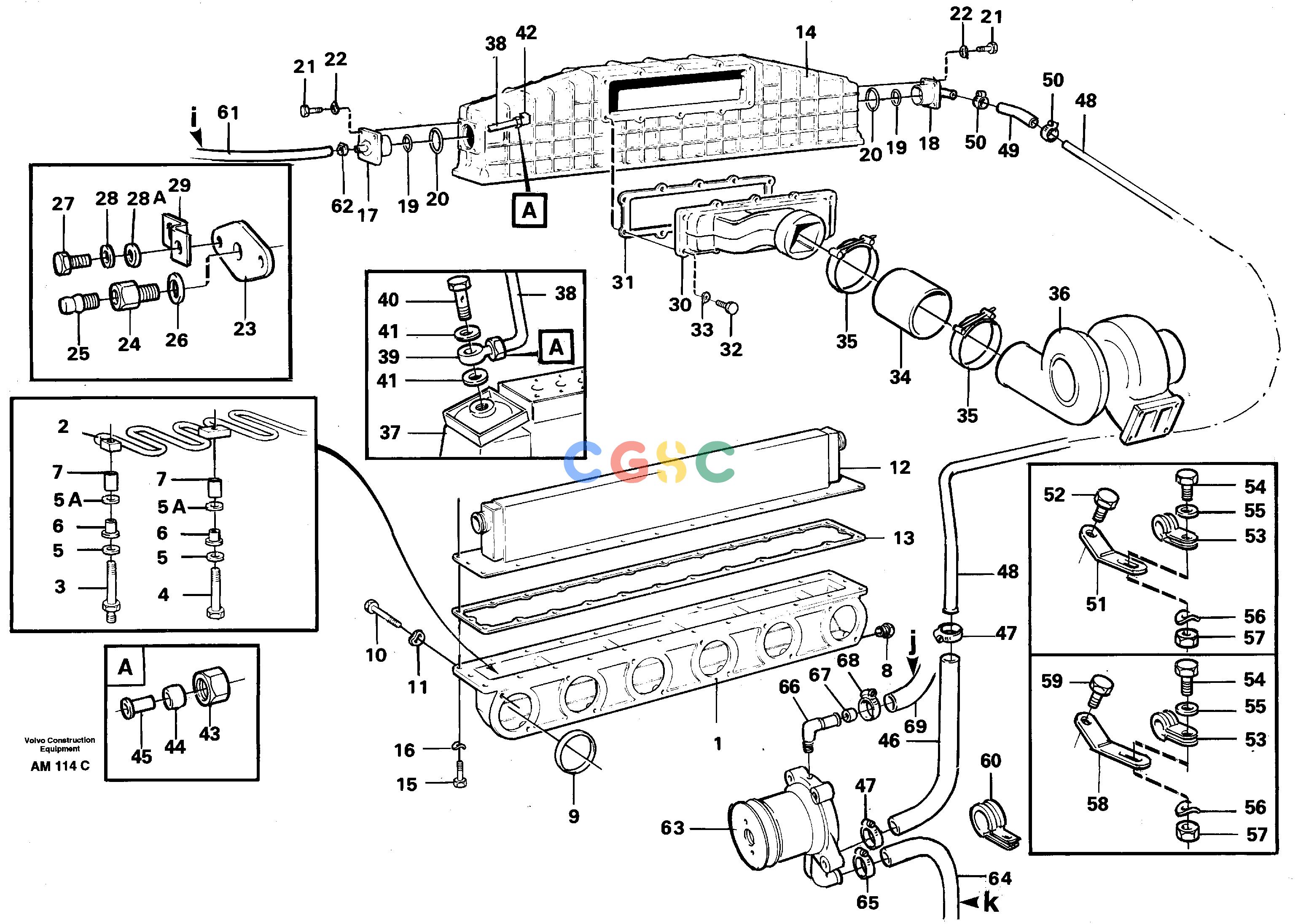

沃尔沃零件查询L330C VOLVO BM IntercoolerVOLVO BM L330C SER NO - 60187.-.NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
315 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE3826924
|
[1] |
Inlet pipe
|
(849100)
E PROD
|
| |
VOE11032241
|
|
Inlet pipe
|
L PROD
|
| 2. |
VOE862609
|
[1] |
Element
|
|
| 3. |
VOE849043
|
[2] |
Terminal screw
|
|
| 4. |
VOE955306
|
[7] |
Hexagon screw
|
|
| 5. |
VOE192288
|
[9] |
Washer
|
|
| 5A. |
VOE13945244
|
[9] |
Washer
|
|
| 6. |
VOE468511
|
[9] |
Bushing
|
|
| 7. |
VOE849042
|
[9] |
Sleeve
|
|
| 8. |
VOE479979
|
[1] |
Plug
|
|
| 9. |
VOE1543172
|
[6] |
Sealing ring
|
|
| 10. |
VOE13955310
|
[8] |
Screw
|
L=130 MM
|
| |
VOE955313
|
[4] |
Hexagon screw
|
L=160 MM
E PROD
|
| |
VOE60110265
|
[4] |
Hexagon screw
|
L = 170 MM
L PROD
|
| 11. |
VOE13955894
|
[12] |
Washer
|
|
| 12. |
VOE866457
|
[1] |
Charge air cooler
|
|
| 13. |
VOE3979052
|
[2] |
Gasket
|
(469661)
|
| 14. |
VOE11032229
|
[1] |
Inlet pipe
|
|
| 15. |
VOE956572
|
[10] |
Hex. socket screw
|
|
| |
VOE940186
|
[16] |
Hexagon screw
|
|
| 16. |
VOE13941907
|
[26] |
Washer
|
|
| 17. |
VOE11031575
|
[1] |
Connection flange
|
|
| 18. |
VOE11031574
|
[1] |
Connection flange
|
|
| 19. |
VOE425695
|
[2] |
O-ring
|
|
| 20. |
VOE13949332
|
[2] |
O-ring
|
|
| 21. |
VOE955525
|
[8] |
Hexagon screw
|
|
| 22. |
VOE13941907
|
[8] |
Washer
|
|
| 23. |
VOE3825050
|
[1] |
Flange
|
|
| 24. |
VOE3825067
|
[1] |
Drain cock
|
|
| 25. |
VOE13966723
|
[1] |
Nipple
|
|
| 26. |
VOE3825051
|
[1] |
Sealing ring
|
|
| 27. |
VOE955514
|
[2] |
Hexagon screw
|
|
| 28. |
VOE13949607
|
[2] |
Washer
|
|
| 28A. |
VOE976943
|
[2] |
Washer
|
|
| 29. |
VOE11031112
|
[1] |
Lock plate
|
|
| 30. |
VOE11033811
|
[1] |
Connecting pipe
|
|
| 31. |
VOE469662
|
[1] |
Gasket
|
|
| 32. |
VOE940161
|
[10] |
Hexagon screw
|
|
| 33. |
VOE13955894
|
[10] |
Washer
|
|
| 34. |
VOE11033816
|
[1] |
Hose
|
|
| 35. |
VOE1660909
|
[2] |
Hose clamp
|
|
| 36. |
|
[1] |
Turbocharger
|
|
| 37. |
|
[1] |
Injection pump
|
|
| 38. |
VOE13945460
|
[REQ] |
Plastic pipe
|
L = 435 MM
|
| 39. |
VOE13945417
|
[1] |
Banjo nipple
|
|
| 40. |
VOE968178
|
[1] |
Hollow screw
|
|
| 41. |
VOE13947282
|
[2] |
Gasket
|
|
| 42. |
VOE954385
|
[1] |
Elbow nipple
|
|
| 43. |
VOE954356
|
[2] |
Fitting nut
|
|
| 44. |
VOE954364
|
[2] |
Ferrule
|
|
| 45. |
VOE944717
|
[2] |
Sleeve
|
|
| 46. |
VOE944386
|
[REQ] |
Hose
|
L = 600 MM
|
| 47. |
VOE943475
|
[2] |
Hose clamp
|
|
| 48. |
VOE11032068
|
[1] |
Tube
|
|
| 49. |
VOE944386
|
[REQ] |
Hose
|
L = 80 MM
|
| 50. |
VOE943475
|
[2] |
Hose clamp
|
|
| 51. |
VOE11032065
|
[1] |
Bracket
|
|
| 52. |
VOE946441
|
[1] |
Flange screw
|
|
| 53. |
VOE952635
|
[2] |
Clamp
|
|
| 54. |
VOE13946934
|
[2] |
Screw
|
|
| 55. |
VOE955893
|
[2] |
Plain washer
|
|
| 56. |
VOE13941906
|
[2] |
Washer
|
|
| 57. |
VOE13945407
|
[2] |
Nut
|
|
| 58. |
VOE11032066
|
[1] |
Bracket
|
|
| 59. |
VOE13970991
|
[1] |
Hexagon screw
|
|
| 60. |
VOE949850
|
[1] |
Clamp
|
|
| 61. |
VOE944386
|
[REQ] |
Hose
|
L = 560 MM
|
| 62. |
VOE943475
|
[2] |
Hose clamp
|
|
| 63. |
|
[1] |
Water pump
|
|
| 64. |
VOE944386
|
[REQ] |
Hose
|
L = 260 MM
|
| 65. |
VOE943475
|
[2] |
Hose clamp
|
|
| 66. |
VOE479953
|
[1] |
Nipple
|
|
| 67. |
VOE11033572
|
[1] |
Restrictor
|
|
| 68. |
VOE943471
|
[1] |
Hose clamp
|
|
| 69. |
VOE943367
|
[REQ] |
Hose
|
L = 380 MM
|
