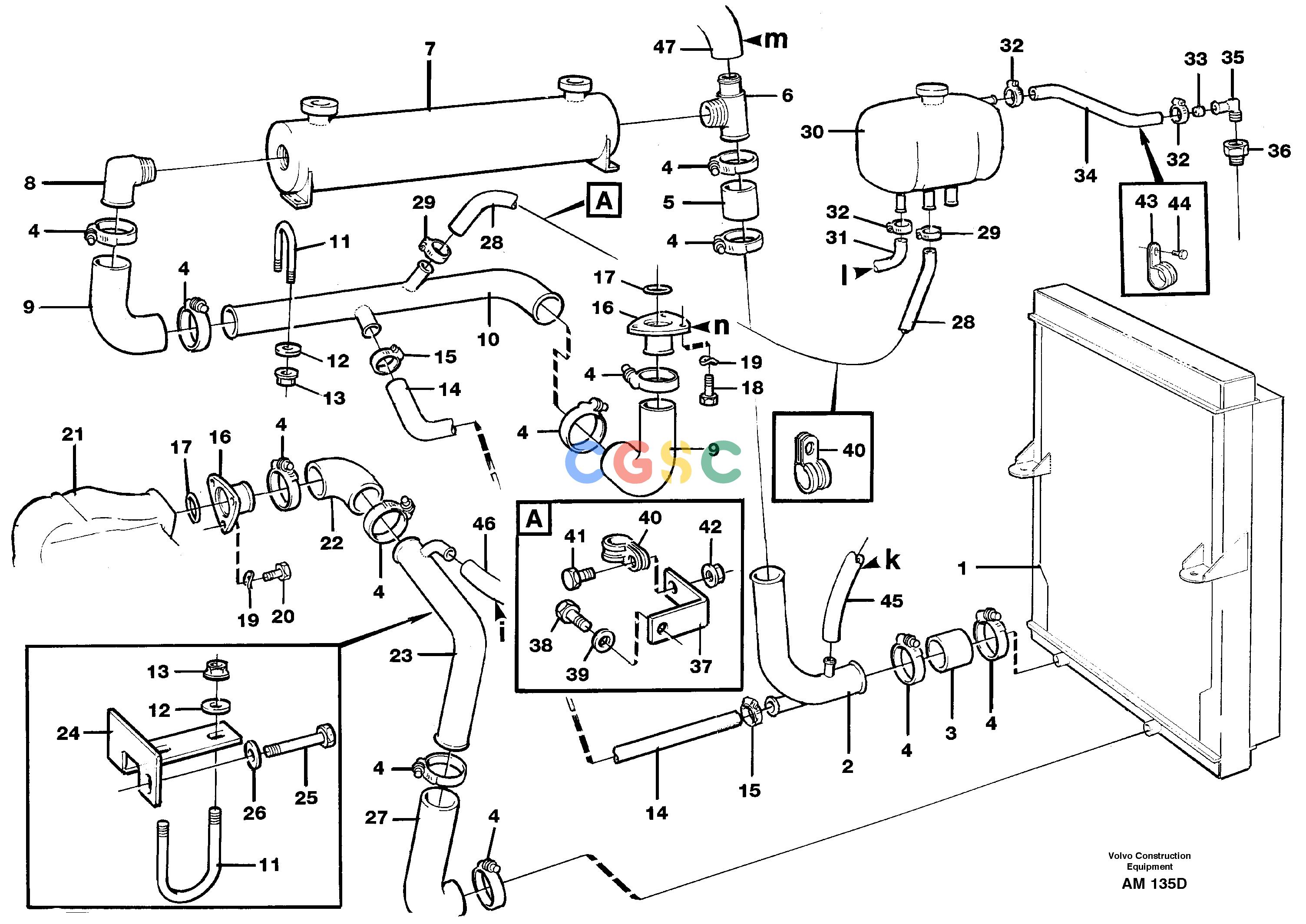

沃尔沃零件查询L330C VOLVO BM Cooling systemVOLVO BM L330C SER NO - 60187 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
446 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Radiator
|
|
| 2. |
VOE11079777
|
[1] |
Tube
|
SER NO - 60002
|
| |
VOE11109882
|
[1] |
Tube
|
SER NO 60003 -
|
| 3. |
VOE11160765
|
[REQ] |
Radiator hose
|
L = 101 MM
|
| 4. |
VOE11109306
|
[12] |
Clamp
|
|
| 5. |
VOE11160765
|
[REQ] |
Radiator hose
|
L = 101 MM
|
| 6. |
VOE11046879
|
[1] |
Fitting
|
SER NO - 60070
|
| |
VOE11109142
|
[1] |
Tee
|
SER NO 60071 -
|
| 7. |
|
[1] |
Oil cooler
|
|
| 8. |
VOE11046037
|
[1] |
Elbow
|
|
| 9. |
VOE11109860
|
[2] |
Radiator hose
|
|
| 10. |
VOE11109814
|
[1] |
Tube
|
SER NO - 60070
|
| |
VOE11109814
|
[1] |
Tube
|
SER NO 60071 -
|
| 11. |
VOE4761310
|
[3] |
Clamp
|
|
| 12. |
VOE13960141
|
[6] |
Washer
|
|
| 13. |
VOE13945408
|
[6] |
Nut
|
|
| 14. |
VOE11109842
|
[1] |
Hose
|
|
| 15. |
VOE943476
|
[2] |
Hose clamp
|
|
| 16. |
VOE11079805
|
[2] |
Pipe
|
|
| 17. |
VOE967343
|
[2] |
O-ring
|
|
| 18. |
VOE955297
|
[3] |
Hexagon screw
|
|
| 19. |
VOE13941907
|
[6] |
Washer
|
|
| 20. |
VOE940142
|
[3] |
Hexagon screw
|
|
| 21. |
|
[1] |
Thermostat Housing
|
SER NO - 60070
|
| |
|
[1] |
Thermostat Housing
|
SER NO 60071 -
|
| 22. |
VOE11141818
|
[1] |
Hose
|
|
| 23. |
VOE11141040
|
[1] |
Tube
|
|
| 24. |
VOE11109861
|
[1] |
Bracket
|
|
| 25. |
VOE13970983
|
[1] |
Hexagon screw
|
|
| 26. |
VOE13960145
|
[1] |
Washer
|
|
| 27. |
VOE11141041
|
[1] |
Radiator hose
|
|
| 28. |
VOE944386
|
[REQ] |
Hose
|
L = 1550 MM, SER NO-60140
|
| |
VOE944386
|
[REQ] |
Hose
|
L = 1740 MM,SER NO 60141-
|
| 29. |
VOE943475
|
[2] |
Hose clamp
|
|
| 30. |
|
[1] |
Expansion tank
|
|
| 31. |
VOE11025584
|
[REQ] |
Rubber hose
|
SER NO - 60070, L= 660 MM
|
| |
VOE943367
|
[REQ] |
Hose
|
SER NO 60071 -, L= 660 MM
|
| 32. |
VOE943470
|
[4] |
Hose clamp
|
|
| 33. |
VOE11033572
|
[1] |
Restrictor
|
|
| 34. |
VOE943367
|
[REQ] |
Hose
|
L = 355 MM, SER NO -60140
|
| |
VOE943367
|
[REQ] |
Hose
|
L = 755 MM, SER NO 60141-
|
| 35. |
VOE942758
|
[1] |
Nipple
|
|
| 36. |
VOE11046099
|
[1] |
Nipple
|
|
| 37. |
VOE12579421
|
[1] |
Plate
|
|
| 38. |
VOE60113082
|
[1] |
Flange screw
|
|
| 39. |
VOE13960141
|
[1] |
Washer
|
|
| 40. |
VOE981653
|
[3] |
Clamp
|
|
| 41. |
VOE946441
|
[1] |
Flange screw
|
|
| 42. |
VOE13971098
|
[1] |
Flange nut
|
|
| 43. |
VOE13803040
|
[1] |
Clamp
|
|
| 44. |
VOE946441
|
[1] |
Flange screw
|
|
| 45. |
|
[1] |
Hose
|
|
| 46. |
|
[1] |
Hose
|
|
| 47. |
|
[1] |
Hose
|
SER NO - 60070
|
| |
|
[1] |
Hose
|
SER NO 60071 -
|
