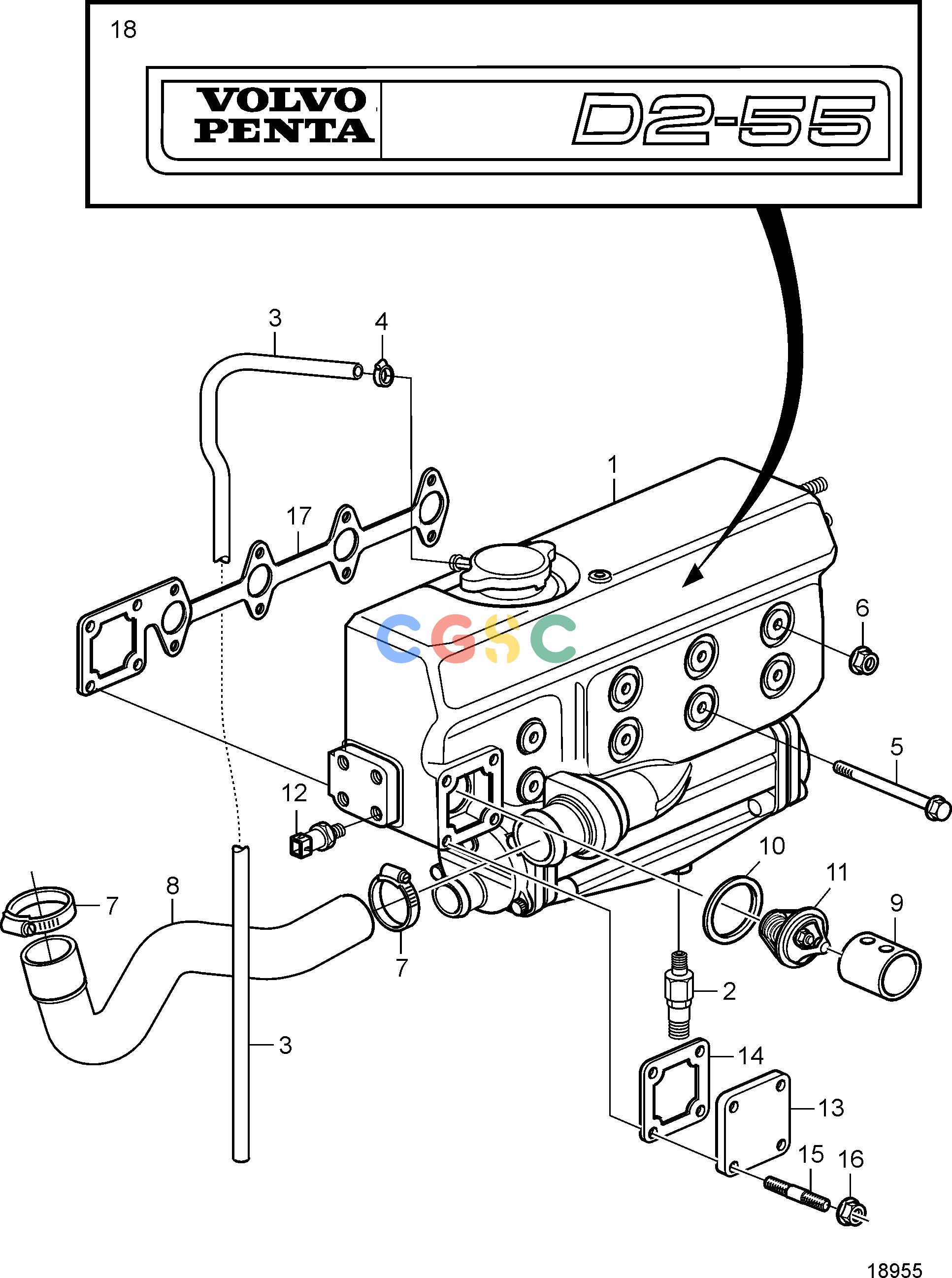

沃尔沃零件查询D2-55; D2-55B; D2-55C; D2-55D; D2-55E; D2-55FCooling SystemHeat Exchanger with Integrated Exhaust PipeEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
418 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3583086
|
[1] |
Heat exchanger
|
Replaced by 3584213
|
| 1. |
3584213
|
[1] |
Heat exchanger
|
Replaced by 3808561
|
| 1. |
3808561
|
[1] |
Heat exchanger
|
|
| 1. |
|
|
|
|
| 2. |
949918
|
[1] |
Shut-off cock
|
|
| 3. |
3580529
|
[1] |
Tube
|
|
| 4. |
961662
|
[1] |
Hose clamp
|
|
| 5. |
968842
|
[6] |
Flange screw
|
|
| 6. |
948645
|
[3] |
Flange lock nut
|
|
| 7. |
961669
|
[2] |
Hose clamp
|
|
| 8. |
3583065
|
[1] |
Pipe
|
|
| 9. |
3580515
|
[1] |
Spacer sleeve
|
|
| 10. |
3580514
|
[1] |
Sealing ring
|
|
| 11. |
3580365
|
[1] |
Thermostat
|
|
| 12. |
7744440_086
|
|
Pressure sensor
|
|
| 13. |
3580517
|
[1] |
Cap
|
|
| 14. |
3583780
|
[1] |
Gasket
|
|
| 15. |
3580519
|
[4] |
Stud
|
|
| 16. |
945407
|
[4] |
Flange nut
|
|
| 17. |
3583781
|
[1] |
Gasket
|
|
| 18. |
3583091
|
[1] |
Decal
|
|
