沃尔沃零件查询D2-55; D2-55B; D2-55C; D2-55D; D2-55E; D2-55FCooling SystemHeat Exchanger, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
403 次

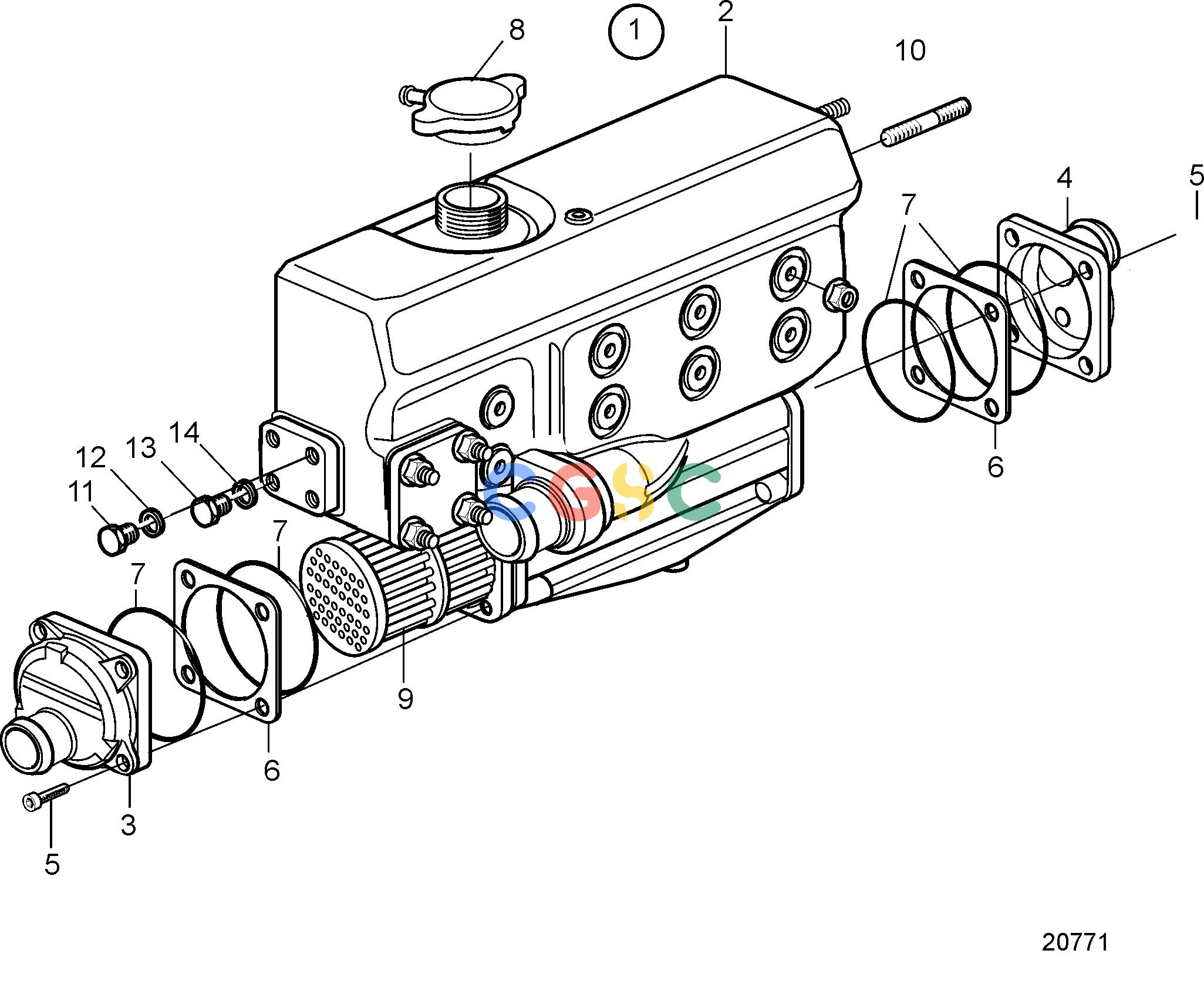

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3583086
|
[1] |
Heat exchanger
|
|
| 2. |
|
|
|
|
| 3. |
3584207
|
[1] |
End plate
|
|
| 4. |
3584206
|
[1] |
End plate
|
|
| 5. |
3838337
|
[8] |
Screw
|
|
| 6. |
3580968
|
[1] |
Gasket
|
|
| 7. |
3580818
|
[4] |
O-ring
|
|
| 8. |
3581770
|
[1] |
Filler cap
|
|
| 8. |
888625
|
[1] |
Cap
|
D2-55B
|
| 9. |
3584205
|
[1] |
Insert
|
|
| 10. |
3584203
|
[4] |
Stud
|
|
| 11. |
861918
|
[1] |
Plug
|
|
| 12. |
947624
|
[1] |
Gasket
|
|
| 13. |
914391
|
[1] |
Plug
|
|
| 14. |
947623
|
[1] |
Gasket
|
|
