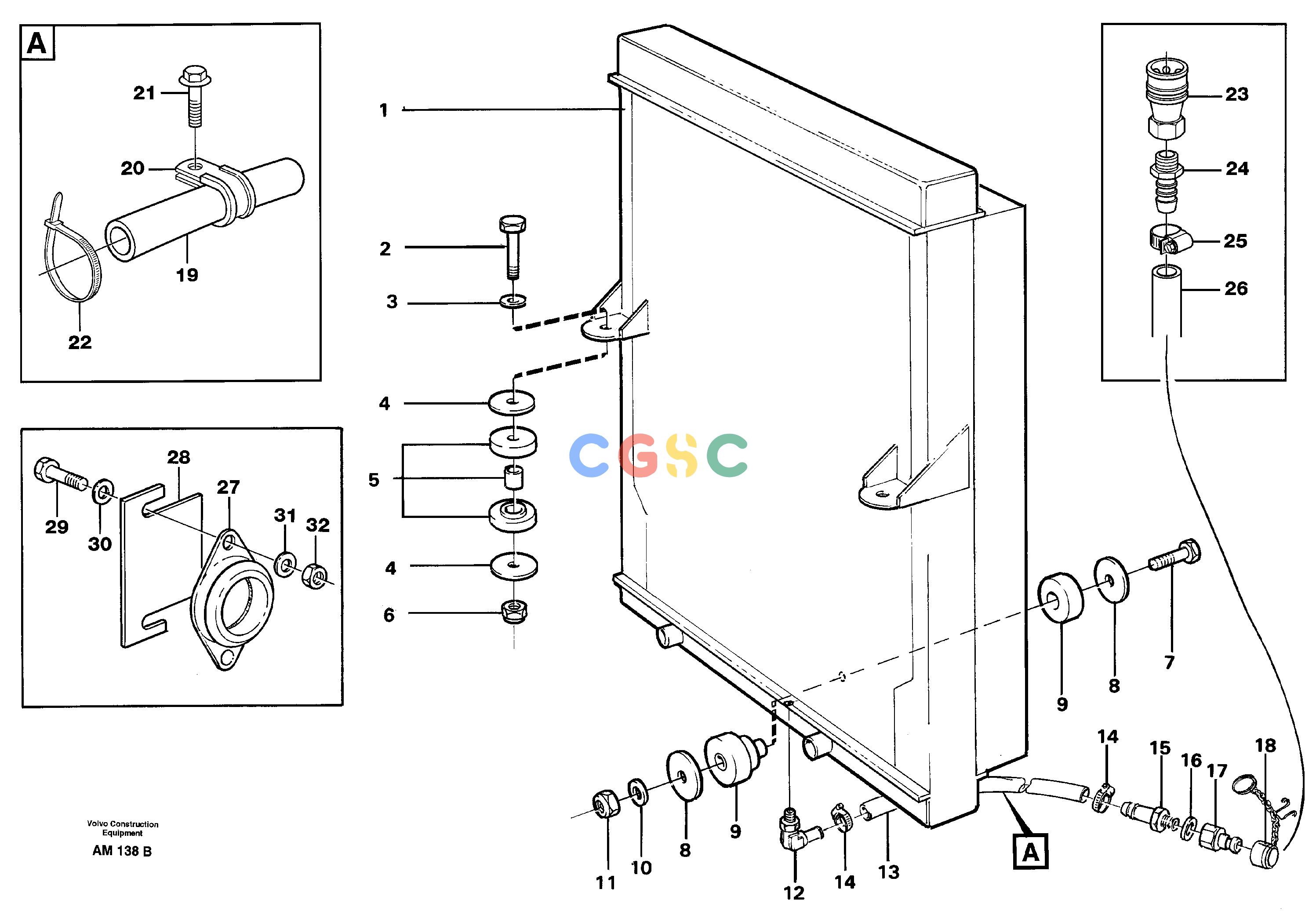

沃尔沃零件查询L330C VOLVO BM Radiator with fitting partsVOLVO BM L330C SER NO - 60187 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
666 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Radiator
|
|
| 2. |
VOE13806319
|
[2] |
Screw
|
|
| 3. |
VOE13813326
|
[2] |
Washer
|
|
| 4. |
VOE12610081
|
[4] |
Washer
|
|
| 5. |
VOE12610083
|
[2] |
Base
|
|
| 6. |
VOE13813325
|
[2] |
Lock nut
|
|
| 7. |
VOE13811155
|
[1] |
Screw
|
|
| 8. |
VOE12581595
|
[2] |
Washer
|
|
| 9. |
VOE11046547
|
[1] |
Base
|
|
| 10. |
VOE13811436
|
[1] |
Washer
|
|
| 11. |
VOE13811196
|
[1] |
Lock nut
|
|
| 12. |
VOE961603
|
[1] |
Elbow nipple
|
|
| 13. |
VOE943368
|
[REQ] |
Hose
|
L = 1000 MM
|
| 14. |
VOE13943472
|
[2] |
Hose clamp
|
|
| 15. |
VOE4786606
|
[1] |
Hose nipple
|
|
| 16. |
VOE948883
|
[1] |
Gasket
|
|
| 17. |
VOE4786585
|
[1] |
Insert nipple
|
|
| 18. |
VOE11194108
|
[1] |
Protecting sleeve
|
|
| 19. |
VOE11109855
|
[1] |
Hose
|
SER NO 60180 -
|
| 20. |
VOE981653
|
[1] |
Clamp
|
SER NO 60180 -
|
| 21. |
VOE946441
|
[1] |
Flange screw
|
SER NO 60180 -
|
| 22. |
VOE4881440
|
[2] |
Cable tie
|
SER NO 60180 -
|
| 23. |
VOE4880194
|
[1] |
Snap-on coupling
|
|
| 24. |
VOE945567
|
[1] |
Nipple
|
|
| 25. |
VOE13943472
|
[1] |
Hose clamp
|
|
| 26. |
VOE13961191
|
[REQ] |
Hydraulic hose
|
L = 600 MM
|
| 27. |
VOE11109906
|
[2] |
Vibration damper
|
|
| 28. |
VOE11109902
|
[REQ] |
Plate
|
THICK = 2 MM (0.079 IN)
|
| |
VOE11109901
|
[REQ] |
Plate
|
THICK = 6 MM (0.236 IN)
|
| 29. |
VOE13965226
|
[4] |
Screw
|
|
| 30. |
VOE11160896
|
[4] |
Washer
|
|
| 31. |
VOE13930908
|
[4] |
Washer
|
|
| 32. |
VOE13971090
|
[4] |
Lock nut
|
|
