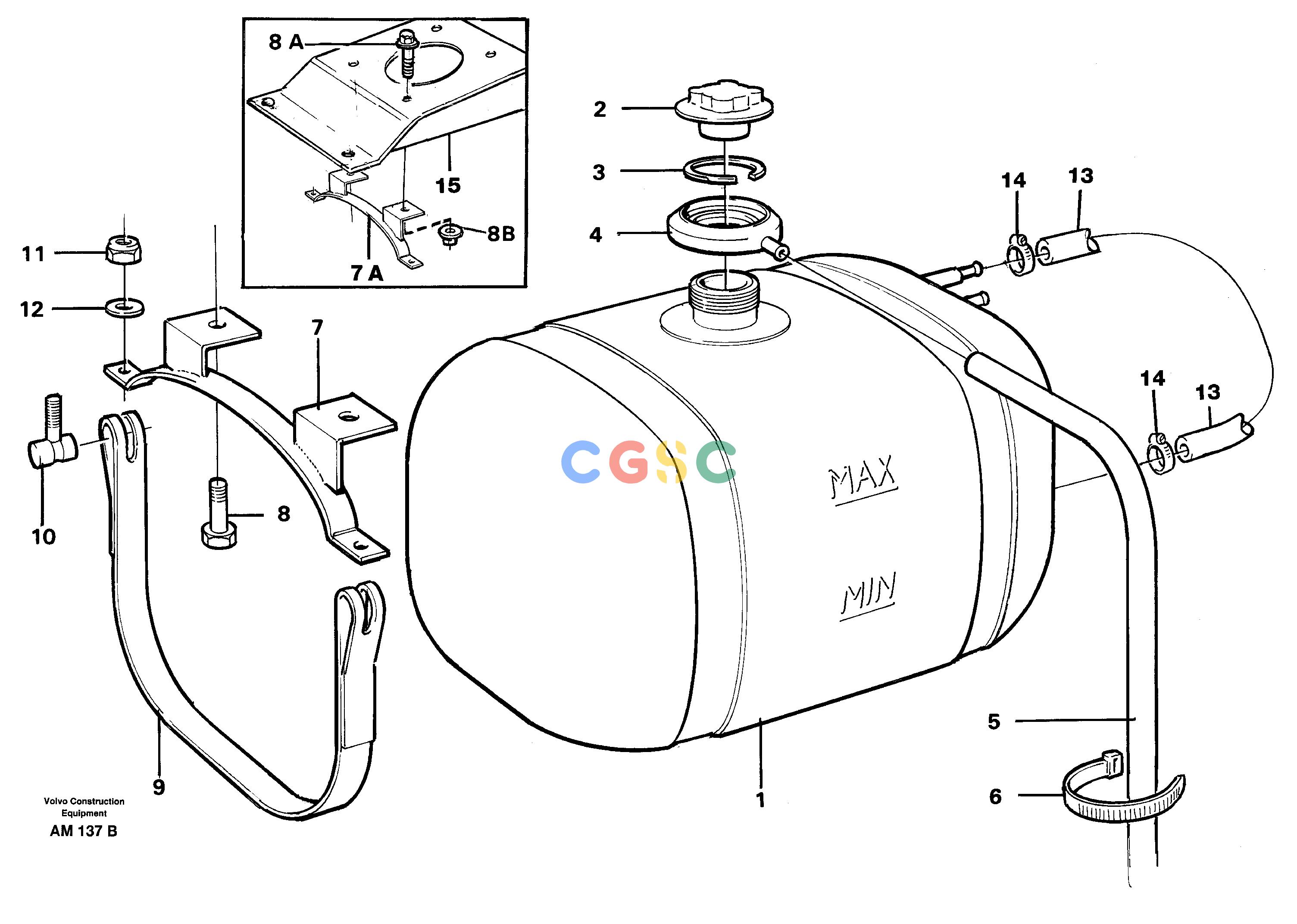

沃尔沃零件查询L330C VOLVO BM Expansion tank with bracketVOLVO BM L330C SER NO - 60187 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
752 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11033336
|
[1] |
Expansion tank
|
|
| 2. |
VOE1542591
|
[1] |
Cap
|
(11033168)
|
| 3. |
VOE11033727
|
[1] |
Lock ring
|
|
| 4. |
VOE3828863
|
[1] |
Rubber collar
|
(11033334)
|
| 5. |
VOE13980211
|
[REQ] |
Hose
|
L = 1675 MM
|
| 6. |
VOE4881440
|
[2] |
Cable tie
|
|
| 7. |
VOE11046250
|
[2] |
Bracket
|
SER NO - 60140
|
| 7A. |
VOE11046730
|
[2] |
Bracket
|
SER NO 60141 -
|
| 8. |
VOE946441
|
[4] |
Flange screw
|
SER NO - 60140
|
| 8A. |
VOE946329
|
[4] |
Flange screw
|
SER NO 60141 -
|
| 8B. |
VOE13971098
|
[4] |
Flange nut
|
SER NO 60141 -
|
| 9. |
VOE11075152
|
[2] |
Tensioning band
|
|
| 10. |
VOE11025992
|
[4] |
Pin
|
|
| 11. |
VOE946036
|
[4] |
Lock nut
|
|
| 12. |
VOE13960141
|
[4] |
Washer
|
|
| 13. |
VOE13980211
|
[REQ] |
Hose
|
L = 255 MM
|
| 14. |
VOE943470
|
[2] |
Hose clamp
|
|
| 15. |
|
[1] |
Bracket
|
SER NO 60141 -
|
