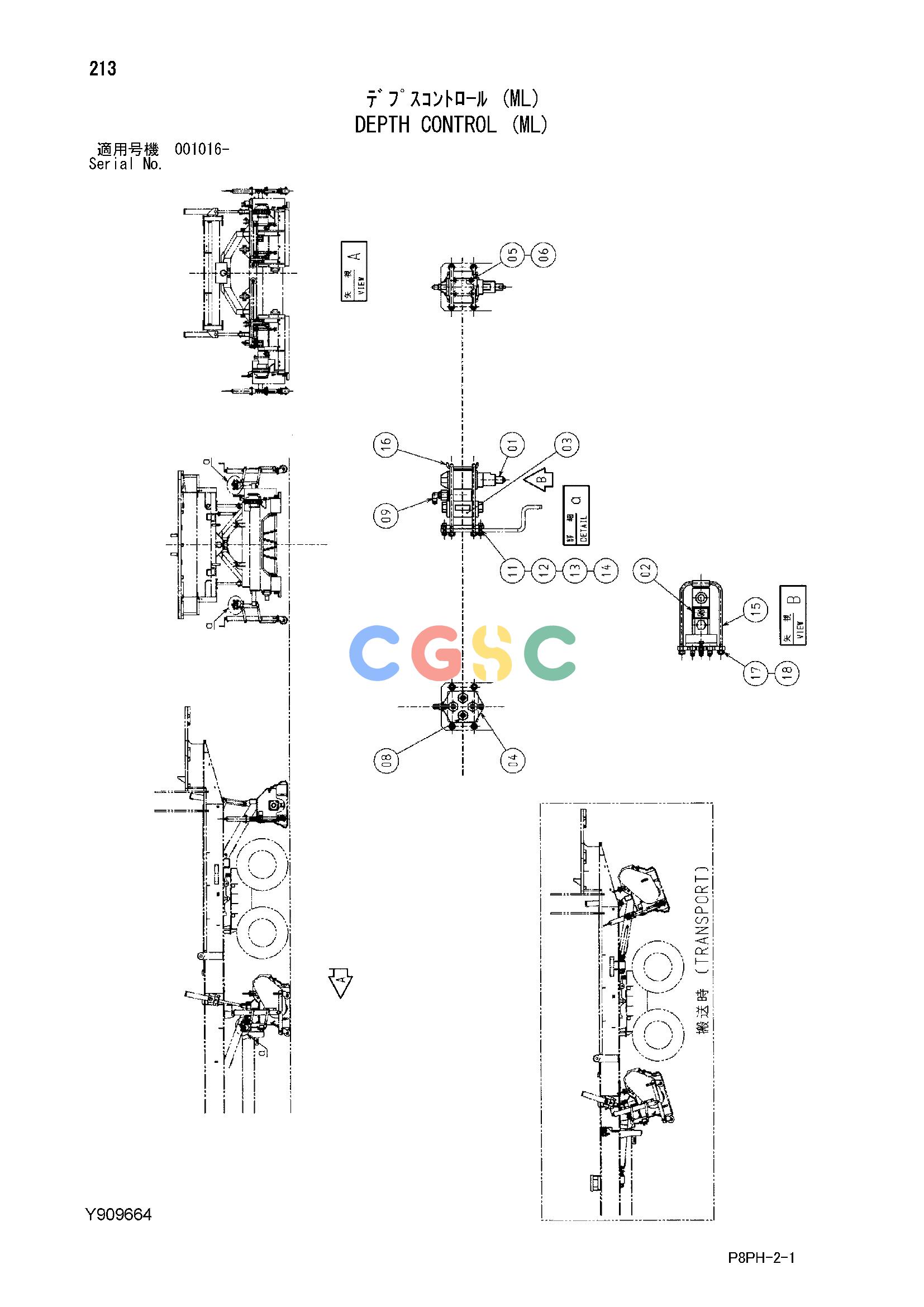

日立零件查询（AR2000）DEPTH CONTROL (ML) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
412 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | Y411283 | [4] | VALVE;CONTROL | |
| 02. | Y411324 | [4] | VALVE;SHUTTLE | |
| 03. | Y411284 | [4] | VALVE;CHECK | |
| 04. | Y412542 | [4] | PLATE | |
| 05. | M340502 | [16] | BOLT;SOCKET | |
| 06. | A590905 | [16] | WASHER;SPRING | |
| 08. | A852132 | [16] | ADAPTER;S | |
| 08A. | 4509180 | [1] | O-RING | |
| 09. | 4278239 | [4] | ELBOW;S | |
| 09A. | 4510185 | [1] | O-RING | |
| 11. | J780625 | [8] | BOLT;SOCKET | |
| 12. | A590106 | [8] | WASHER;PLANE | |
| 13. | A590906 | [8] | WASHER;SPRING | |
| 14. | M500605 | [8] | NUT | |
| 15. | Y410353 | [8] | BOLT;U | |
| 16. | Y410354 | [4] | PLATE | |
| 17. | M500807 | [32] | NUT | |
| 18. | A590908 | [16] | WASHER;SPRING | |
