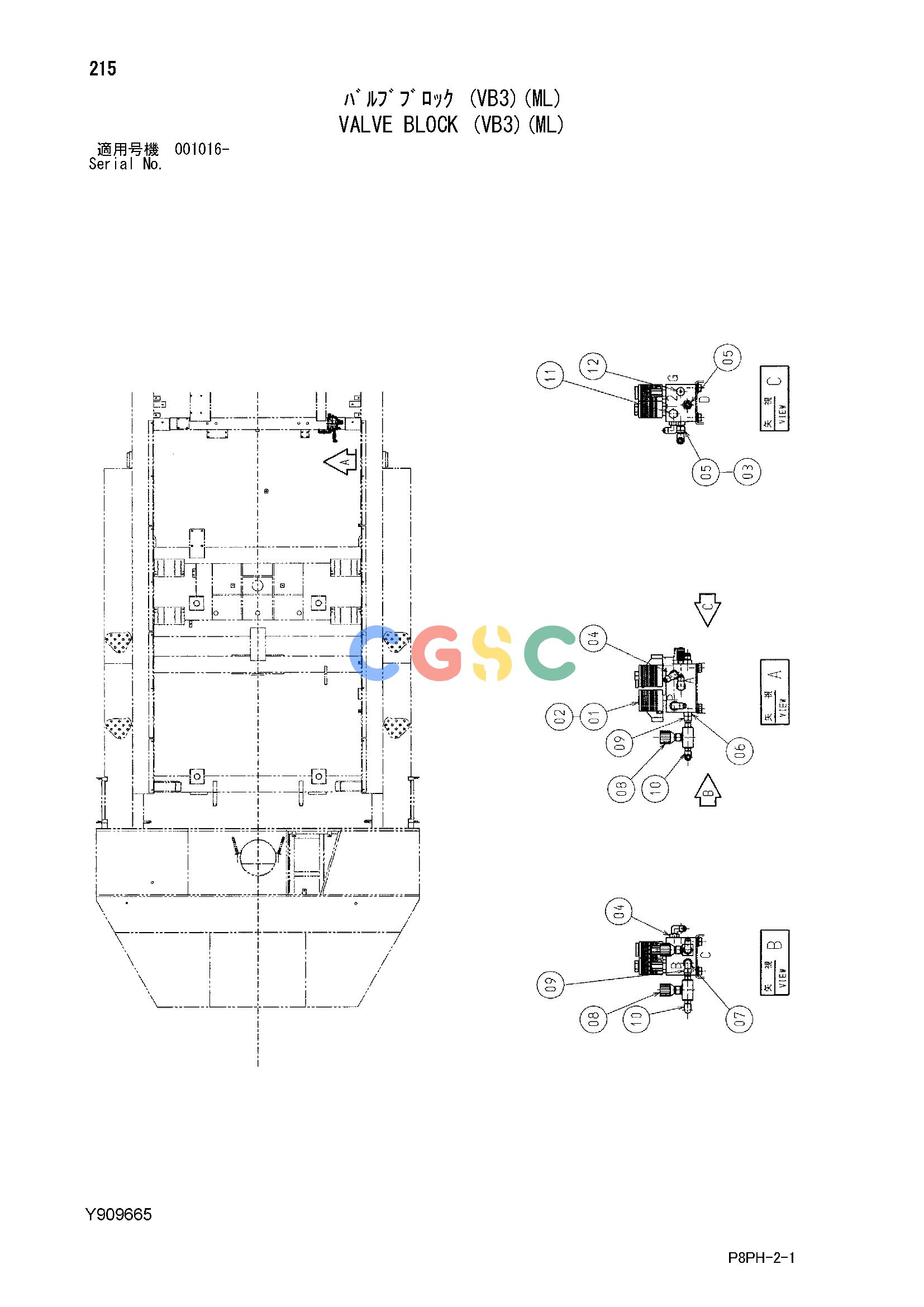

日立零件查询（AR2000）VALVE BLOCK (VB3)(ML) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
347 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | Y411296 | [1] | BLOCK;VALVE | |
| 02. | J271025 | [4] | BOLT;SEMS | |
| 02A. | J901025 | [1] | BOLT | |
| 02B. | J222010 | [1] | WASHER | |
| 03. | Y412834 | [1] | ELBOW;S | |
| 04. | 4277654 | [2] | ELBOW;S | |
| 04A. | R26448R | [1] | O-RING | |
| 05. | 4278867 | [2] | ADAPTER;S | |
| 05A. | R26448R | [1] | O-RING | |
| 06. | 4278866 | [1] | ADAPTER;S | |
| 06A. | R26448R | [1] | O-RING | |
| 07. | 4277653 | [1] | ELBOW;S | |
| 07A. | R26448R | [1] | O-RING | |
| 08. | Y411187 | [2] | VALVE;NEEDLE | |
| 09. | Y411671 | [2] | ADAPTER;S | |
| 10. | 4278239 | [2] | ELBOW;S | |
| 10A. | 4510185 | [1] | O-RING | |
| 11. | 4174545 | [1] | PLUG | |
| 11A. | R26448R | [1] | O-RING | |
| 12. | Y412545 | [1] | ADAPTER;GAUGE | |
