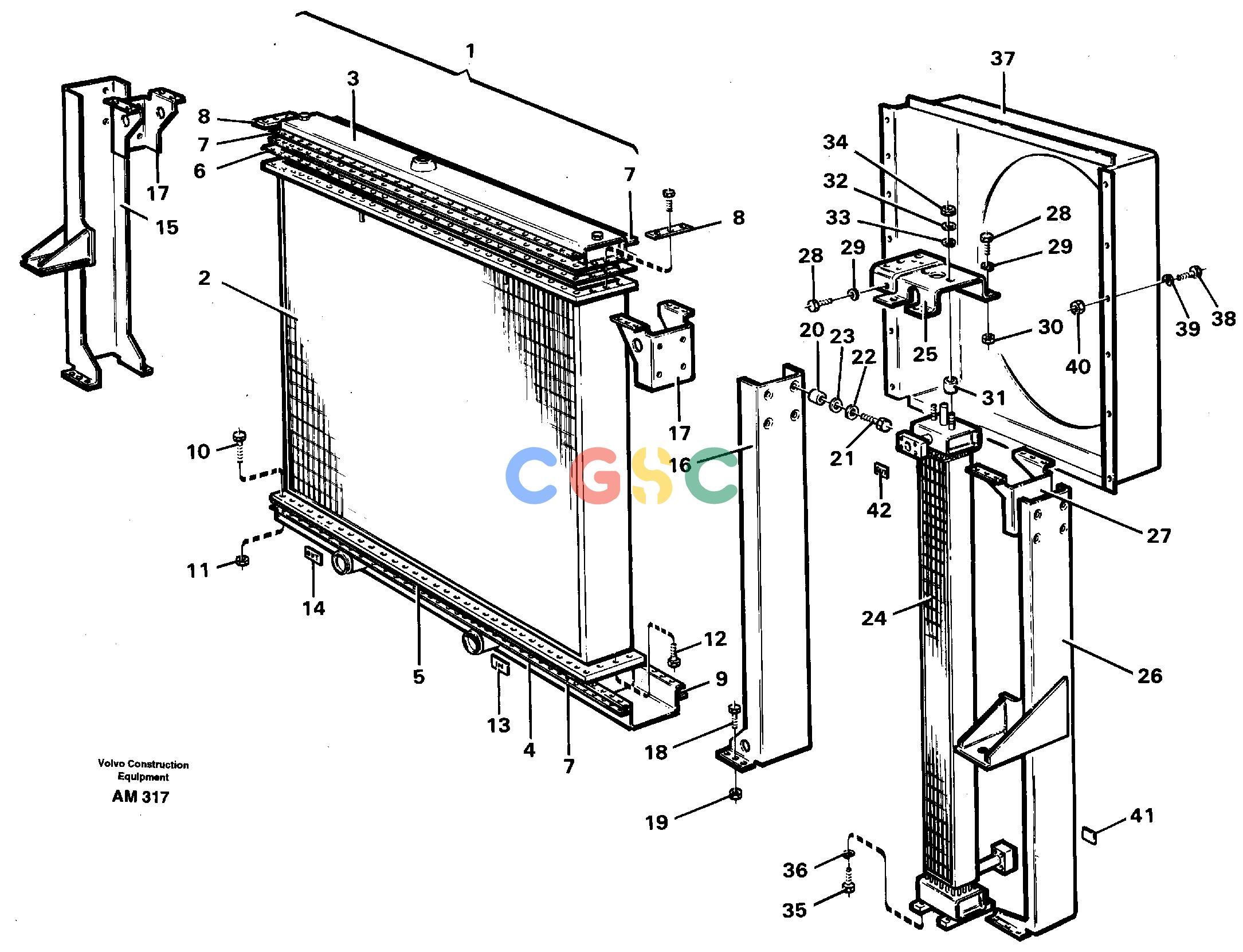

沃尔沃零件查询L330C VOLVO BM RadiatorVOLVO BM L330C SER NO - 60187 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
503 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE11109606
|
[1] |
Radiator
|
|
| 1. |
VOE11701517
|
[1] |
Radiator
|
|
| 2. |
VOE11705775
|
[1] |
Radiator core
|
|
| 3. |
VOE11701164
|
[1] |
Tank
|
|
| 4. |
VOE11702719
|
[1] |
Tank
|
|
| 5. |
|
[1] |
Gasket
|
|
| 6. |
|
[2] |
Gasket
|
|
| 7. |
|
[4] |
Rod
|
|
| 8. |
|
[4] |
Rod
|
|
| 9. |
|
[1] |
Rod
|
|
| 10. |
VOE13800194
|
[108] |
Screw
|
L = 44 MM (1,75 IN)
|
| 11. |
VOE13806769
|
[108] |
Nut
|
|
| 12. |
VOE13806259
|
[20] |
Screw
|
|
| 13. |
VOE12003965
|
[1] |
Decal
|
IN
|
| 14. |
VOE12003966
|
[1] |
Decal
|
OUT
|
| |
|
|
None
|
|
| 15. |
VOE11702720
|
[1] |
Side
|
|
| 16. |
VOE11701168
|
[1] |
Side
|
|
| 17. |
|
[2] |
End piece
|
|
| 18. |
VOE955537
|
[16] |
Hexagon screw
|
L = 51 MM (2 IN)
|
| 19. |
VOE13806769
|
[16] |
Nut
|
|
| 20. |
|
[12] |
Spacer
|
|
| 21. |
VOE13800188
|
[12] |
Screw
|
|
| 22. |
VOE941908
|
[12] |
Spring washer
|
|
| 23. |
VOE13802624
|
[12] |
Washer
|
|
| 24. |
VOE11708606
|
[1] |
Oil cooler
|
|
| 25. |
VOE11701170
|
[1] |
Protecting plate
|
|
| 26. |
VOE11702721
|
[1] |
Side
|
|
| 27. |
|
[1] |
End piece
|
|
| 28. |
VOE13800188
|
[14] |
Screw
|
L = 25,4 MM (1 IN)
|
| |
VOE955535
|
[5] |
Hexagon screw
|
L = 32 MM (1,25 IN)
|
| |
VOE13940162
|
[1] |
Screw
|
L = 38 MM (1,5 IN)
|
| 29. |
VOE941908
|
[20] |
Spring washer
|
|
| 30. |
VOE13803675
|
[20] |
Nut
|
|
| 31. |
|
[2] |
Spacer
|
|
| 32. |
VOE13802628
|
[2] |
Washer
|
|
| 33. |
VOE13800830
|
[2] |
Lock washer
|
|
| 34. |
VOE13803677
|
[2] |
Nut
|
|
| 35. |
VOE13940162
|
[4] |
Screw
|
L = 38 MM (1,5 IN)
|
| 36. |
VOE13800830
|
[4] |
Lock washer
|
|
| 37. |
VOE11702722
|
[1] |
Fan shroud
|
|
| 38. |
VOE13800188
|
[12] |
Screw
|
|
| 39. |
VOE941908
|
[12] |
Spring washer
|
|
| 40. |
VOE13803675
|
[12] |
Nut
|
|
| 41. |
VOE12003965
|
[1] |
Decal
|
IN
|
| 42. |
VOE12003966
|
[1] |
Decal
|
OUT
|
