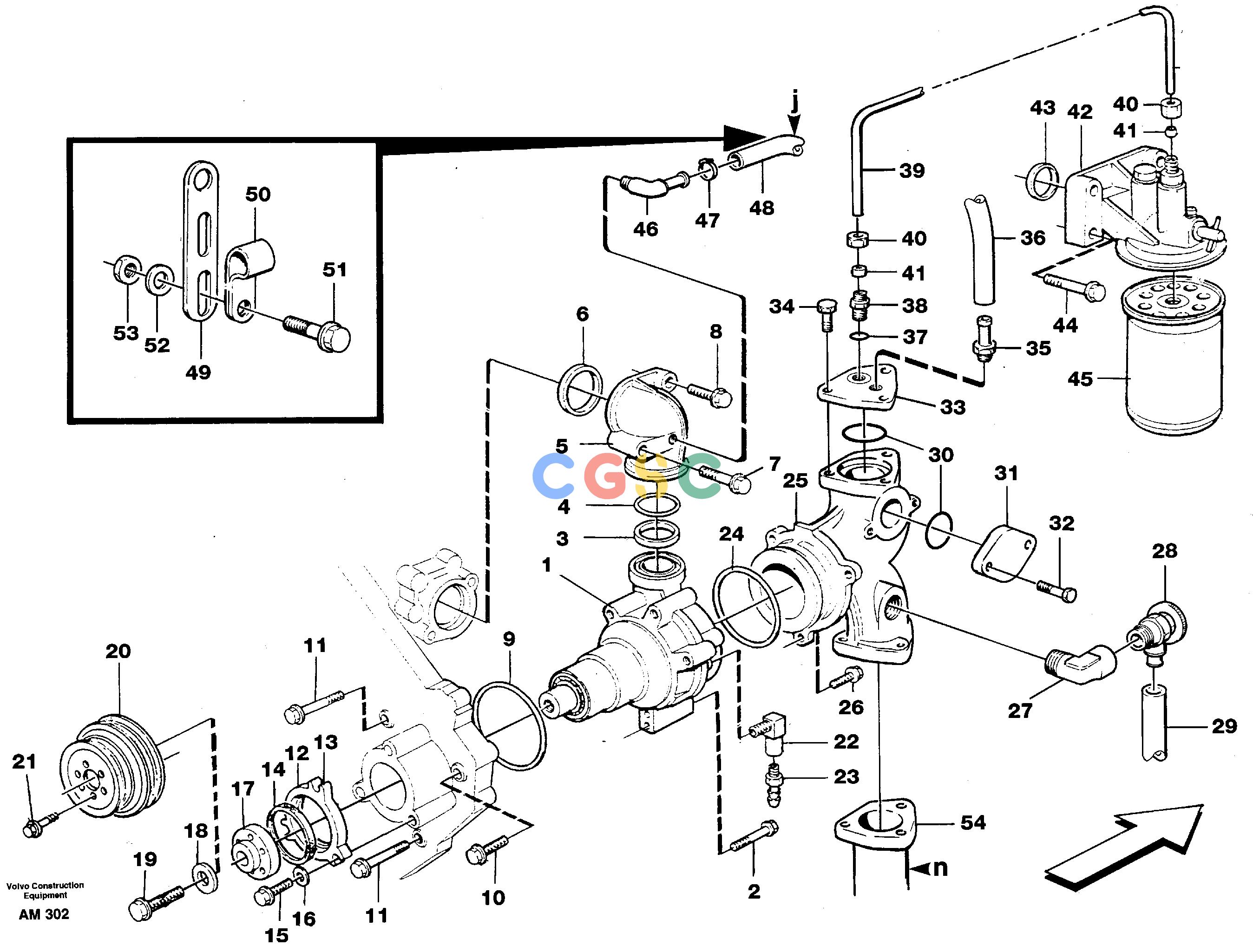

沃尔沃零件查询L330C VOLVO BM Water pump with fitting partsVOLVO BM L330C SER NO - 60187 NoneNoneSER NO 60071 -Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
691 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Water pump
|
|
| 2. |
VOE13965189
|
[2] |
Screw
|
|
| 3. |
VOE1556397
|
[1] |
Sealing ring
|
|
| 4. |
VOE1556412
|
[1] |
Ring
|
|
| 5. |
VOE866131
|
[1] |
Connecting pipe
|
|
| 6. |
VOE1556389
|
[1] |
Sealing ring
|
|
| 7. |
VOE13965182
|
[1] |
Screw
|
|
| 8. |
VOE13945444
|
[1] |
Screw
|
|
| 9. |
VOE925266
|
[1] |
O-ring
|
|
| 10. |
VOE13965189
|
[1] |
Screw
|
|
| 11. |
VOE13947790
|
[2] |
Screw
|
|
| 12. |
VOE1543588
|
[1] |
Retainer
|
|
| 13. |
VOE11987599
|
[1] |
Retaining clip
|
|
| 14. |
VOE1543908
|
[1] |
Sealing ring
|
|
| 15. |
VOE946470
|
[3] |
Flange screw
|
|
| 16. |
VOE13955894
|
[3] |
Washer
|
|
| 17. |
VOE1543891
|
[1] |
Hub
|
|
| 18. |
VOE1543923
|
[1] |
Washer
|
|
| 19. |
VOE471555
|
[1] |
Screw
|
|
| 20. |
VOE11032063
|
[1] |
Pulley
|
|
| 21. |
VOE13946173
|
[6] |
Screw
|
|
| 22. |
VOE1543847
|
[1] |
Nipple
|
|
| 23. |
VOE13966723
|
[1] |
Nipple
|
|
| 24. |
VOE925096
|
[1] |
O-ring
|
|
| 25. |
VOE863607
|
[1] |
Rear section
|
|
| 26. |
VOE13945444
|
[3] |
Screw
|
|
| 27. |
VOE941740
|
[1] |
Elbow nipple
|
|
| 28. |
VOE12610147
|
[1] |
Valve
|
|
| 29. |
|
[1] |
Hose
|
|
| 30. |
VOE925073
|
[2] |
O-ring
|
|
| 31. |
VOE11032118
|
[1] |
Flange
|
|
| 32. |
VOE13946173
|
[2] |
Screw
|
|
| 33. |
VOE11032117
|
[1] |
Flange
|
|
| 34. |
VOE13946173
|
[3] |
Screw
|
|
| 35. |
VOE947043
|
[1] |
Nipple
|
|
| 36. |
|
[1] |
Hose
|
|
| 37. |
VOE13969011
|
[1] |
Gasket
|
|
| 38. |
VOE941754
|
[1] |
Nipple
|
|
| 39. |
VOE11032119
|
[1] |
Tube
|
|
| 40. |
VOE956983
|
[2] |
Fitting nut
|
|
| 41. |
VOE980781
|
[2] |
Ferrule
|
|
| 42. |
|
[1] |
Bracket
|
|
| 43. |
VOE469846
|
[1] |
Sealing ring
|
|
| 44. |
VOE60113082
|
[4] |
Flange screw
|
|
| 45. |
VOE20532237
|
[1] |
Coolant filter
|
|
| 46. |
VOE479953
|
[1] |
Nipple
|
|
| 47. |
VOE943471
|
[1] |
Hose clamp
|
|
| 48. |
|
[1] |
Hose
|
|
| 49. |
VOE13965534
|
[1] |
Bracket
|
|
| 50. |
VOE952630
|
[1] |
Clamp
|
|
| 51. |
VOE13947542
|
[1] |
Screw
|
|
| 52. |
VOE955893
|
[1] |
Plain washer
|
|
| 53. |
VOE13945407
|
[1] |
Nut
|
|
| 54. |
|
[1] |
Tube assembly
|
|
