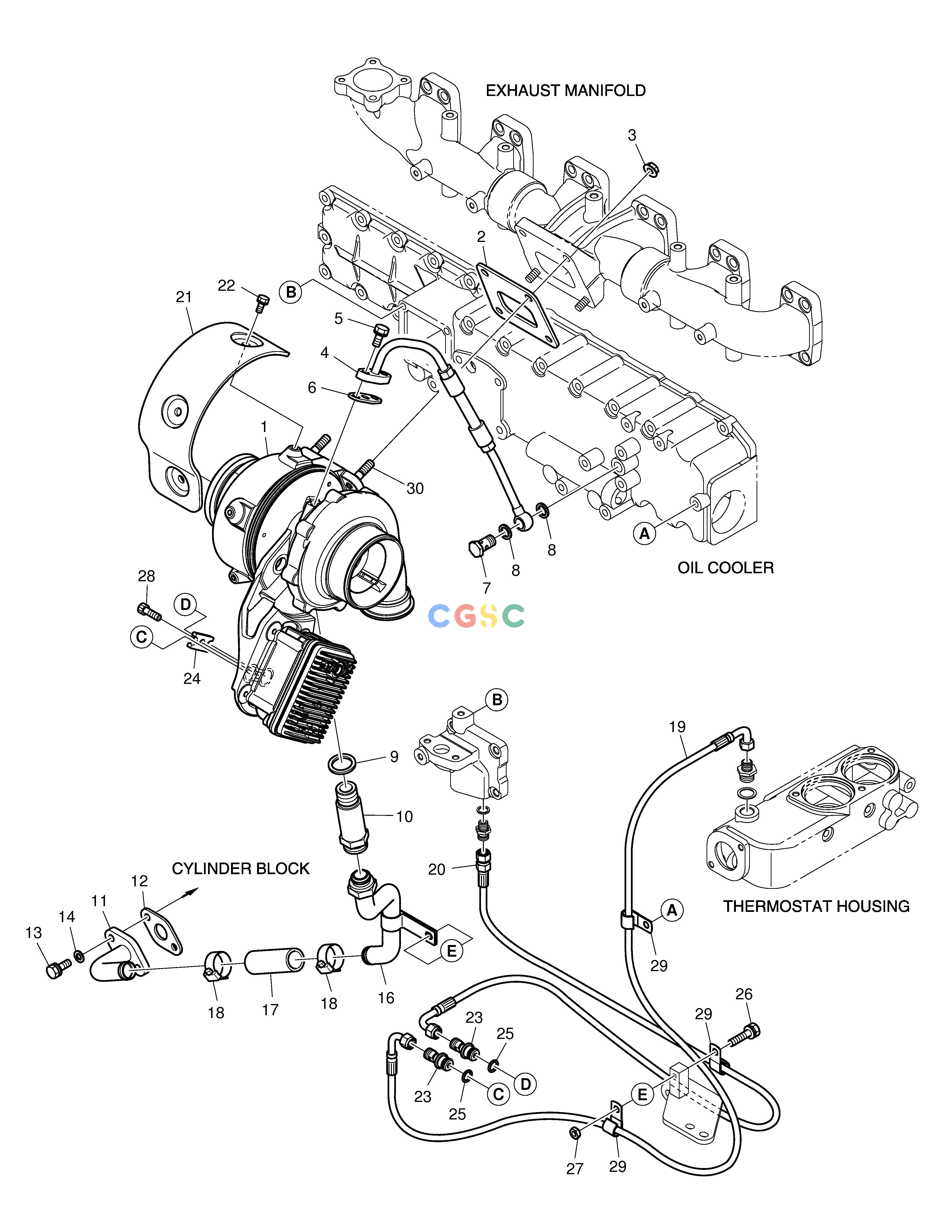

斗山零件查询TURBO CHARGER DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
387 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
150105-00094
|
[1] |
|
|
| 10. |
430201-00155
|
[1] |
|
|
| 11. |
420217-00063
|
[1] |
|
|
| 11. |
420217-00400
|
[1] |
|
|
| 12. |
65.96601-0052
|
[1] |
GASKET
|
|
| 13. |
06.01913-3114
|
[2] |
BOLT ASS`Y M8X22
|
|
| 13. |
120106-00191
|
[2] |
BOLT,HEX FLANGE
|
|
| 14. |
06.16731-2107
|
[2] |
WASHER
|
|
| 16. |
420217-00064
|
[1] |
|
|
| 16. |
420217-00382
|
[1] |
|
|
| 17. |
65.96301-0327A
|
[1] |
HOSE;RUBBER
|
|
| 18. |
06.67020-0104
|
[2] |
CLAMP;HOSE
|
|
| 18. |
120202-00232
|
[2] |
CLAMP,HOSE
|
|
| 19. |
420103-00070
|
[1] |
|
|
| 2. |
400629-00013
|
[1] |
|
|
| 20. |
420103-00071A
|
[1] |
|
|
| 21. |
111002-00026
|
[1] |
|
|
| 22. |
06.01923-2910
|
[3] |
BOLT ASS'Y M6X12
|
|
| 23. |
430201-00199
|
[2] |
|
|
| 24. |
110928-00028
|
[1] |
|
|
| 25. |
401002-00226
|
[2] |
|
|
| 26. |
06.01923-3120
|
[1] |
. BOLT ASS`Y M8X45
|
|
| 27. |
06.11063-8214
|
[1] |
. NUT
|
|
| 28. |
65.90001-6006
|
[1] |
BOLT;SOCKET HEAD M8X25
|
|
| 29. |
120402-00108
|
[3] |
|
|
| 3. |
65.90535-0001
|
[4] |
NUT
|
|
| 30. |
65.90201-0076
|
[2] |
. BOLT;STUD
|
|
| 4. |
420214-00107
|
[1] |
|
420214-00107A
|
| 4. |
420214-00107A
|
[1] |
|
|
| 5. |
06.01923-3114
|
[2] |
BOLT ASS`Y M8X22
|
|
| 6. |
400612-00019
|
[1] |
|
|
| 7. |
06.78144-2204
|
[1] |
SCREW;HOLLOW
|
|
| 8. |
06.56190-0705
|
[2] |
RING;SEAL
|
|
| 9. |
06.56190-0728
|
[1] |
RING;SEAL
|
|
