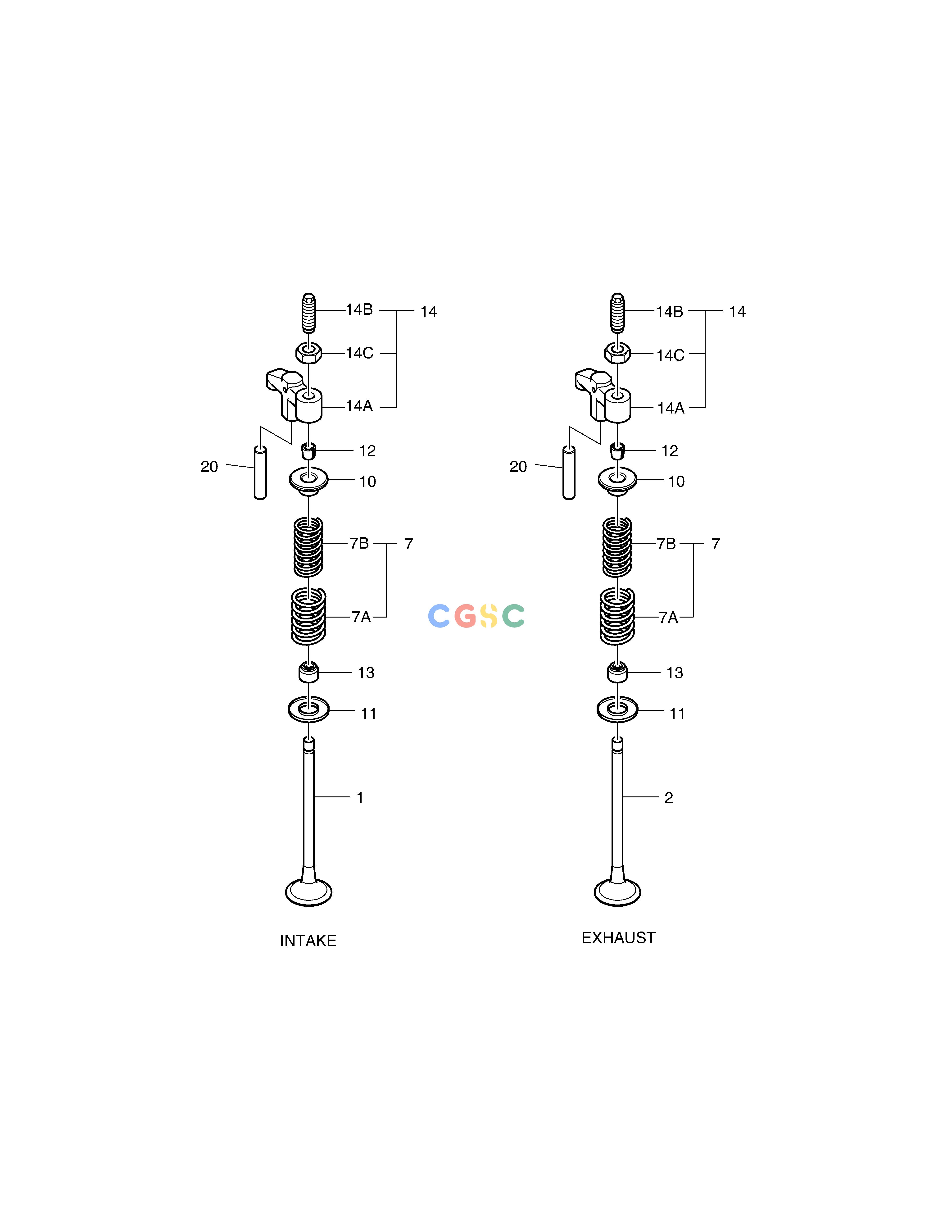

斗山零件查询VALVE DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
649 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.04101-0059C
|
[12] |
VALVE
|
|
| 10. |
65.04103-0016
|
[24] |
PLATE;VALVE SPRING
|
|
| 11. |
65.90701-0097B
|
[24] |
WASHER
|
|
| 12. |
65.04104-0008
|
[48] |
COTTER;VALVE
|
|
| 13. |
65.04902-0020
|
[24] |
SEAL;VALVE STEAM
|
|
| 14. |
65.04130-6001B
|
[12] |
CALIPER
|
|
| 14A. |
65.04130-0001C
|
[1] |
CALIPER
|
|
| 14B. |
65.04205-0007A
|
[1] |
SCREW;ADJUST
|
|
| 14C. |
65.90501-0031
|
[1] |
NUT;HEX.
|
|
| 2. |
65.04101-0060B
|
[12] |
VALVE
|
|
| 20. |
65.04135-0003
|
[12] |
PIN;CALIPER GUIDE
|
|
| 7. |
65.04102-6011B
|
[24] |
SPRING;VALVE
|
|
| 7A. |
65.04102-0020B
|
[1] |
SPRING;VALVE
|
|
| 7B. |
65.04102-0021A
|
[1] |
SPRING;VALVE
|
|
