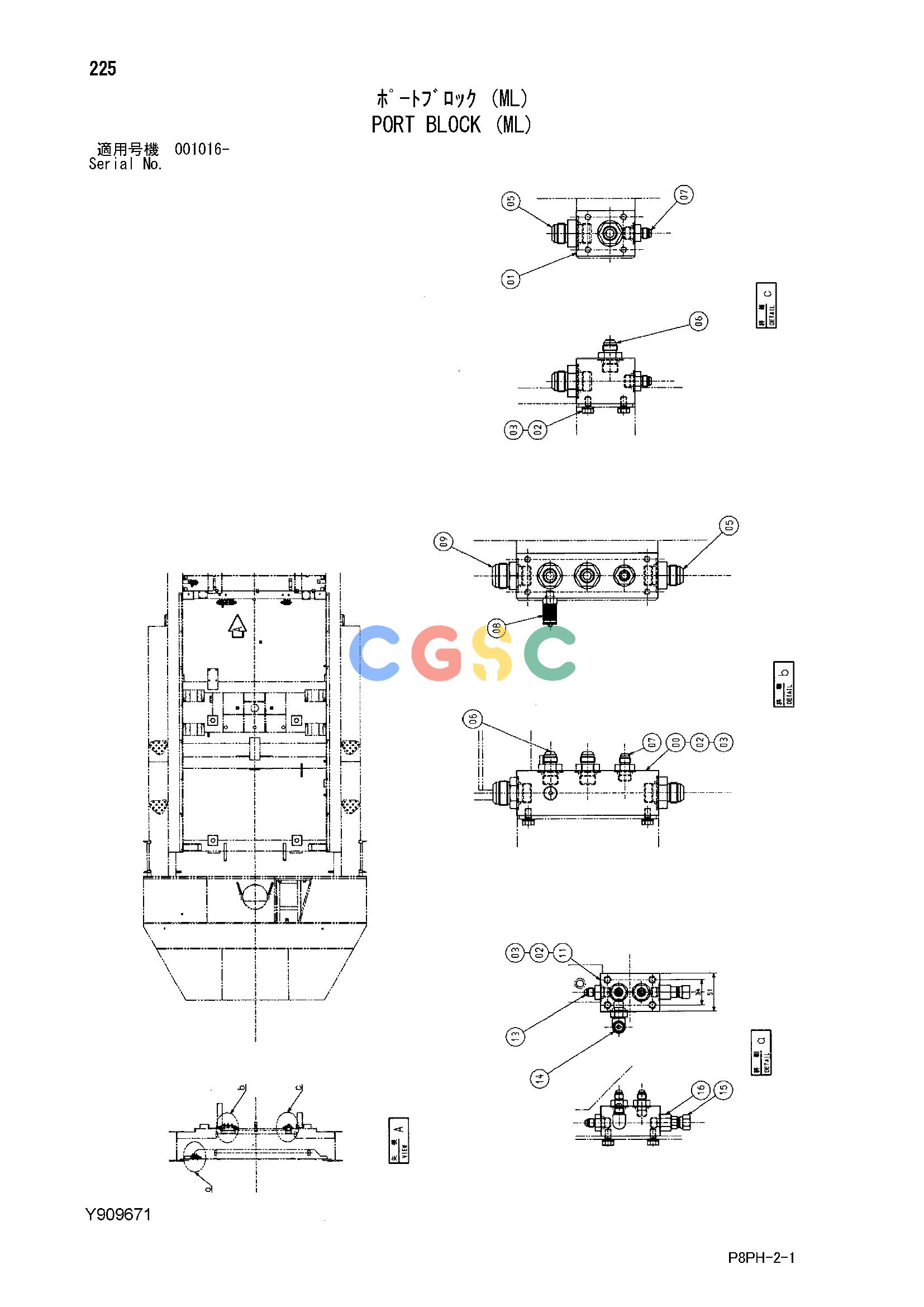

日立零件查询（AR2000）PORT BLOCK (ML) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
650 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y301789 | [1] | MANIFOLD | |
| 01. | Y301787 | [1] | MANIFOLD | |
| 02. | J900816 | [12] | BOLT | |
| 03. | A590908 | [12] | WASHER;SPRING | |
| 05. | A852166 | [2] | ADAPTER;S | |
| 05A. | 4506424 | [1] | O-RING | |
| 06. | A852144 | [3] | ADAPTER;S | |
| 06A. | 4506418 | [1] | O-RING | |
| 07. | A852133 | [2] | ADAPTER;S | |
| 07A. | 4509180 | [1] | O-RING | |
| 08. | Y412545 | [1] | ADAPTER;GAUGE | |
| 09. | 4314080 | [1] | ADAPTER;S | |
| 09A. | 4506424 | [1] | O-RING | |
| 11. | Y412664 | [1] | MANIFOLD | |
| 13. | A852122 | [3] | ADAPTER;S | |
| 13A. | 957366 | [1] | O-RING | |
| 14. | A852322 | [1] | ELBOW;S | |
| 14A. | 957366 | [1] | O-RING | |
| 15. | Y411671 | [1] | ADAPTER;S | |
| 16. | Y413104 | [1] | ADAPTER;S | |
