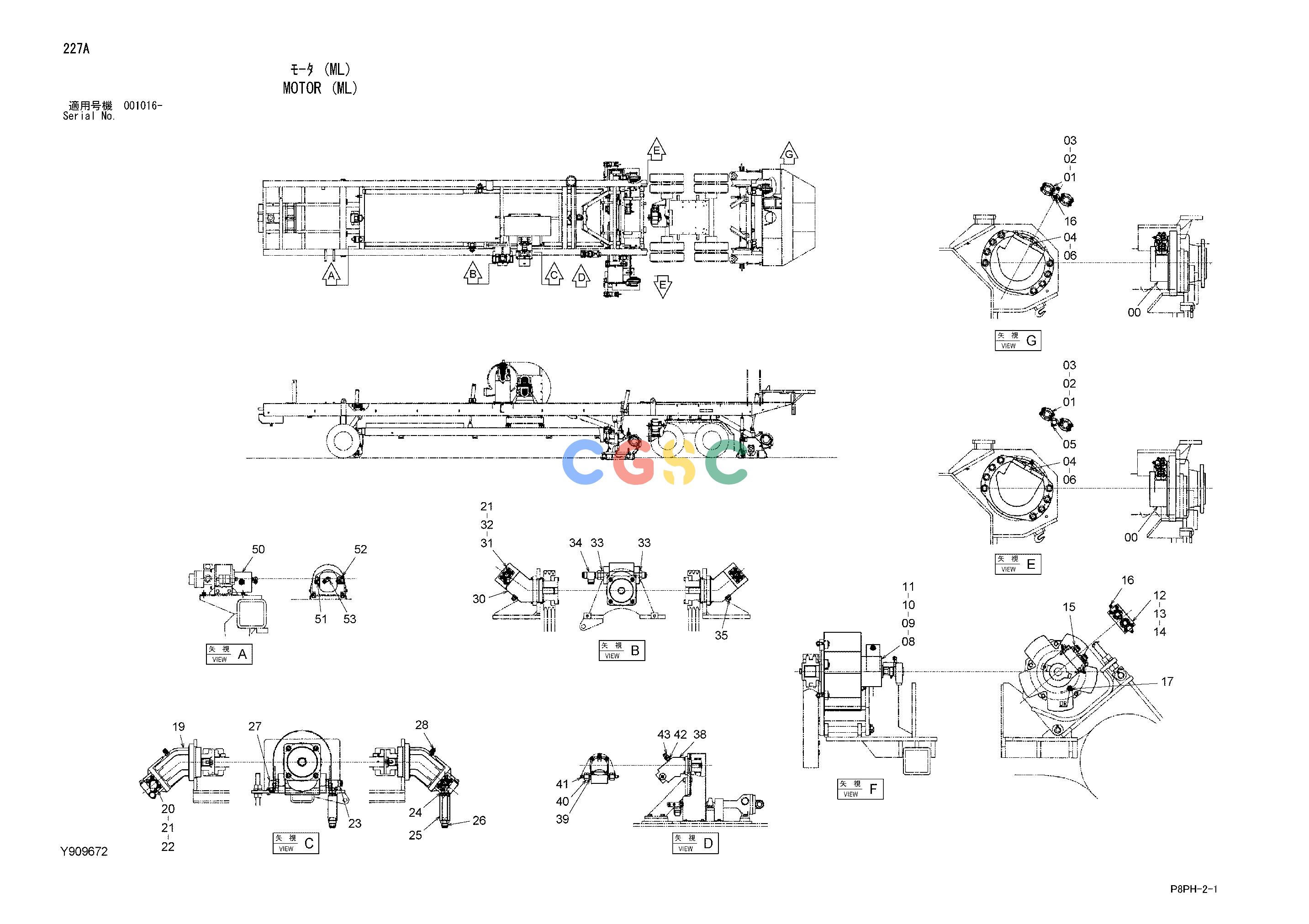

日立零件查询（AR2000）MOTOR (ML) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
567 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y411203 | [3] | MOTOR;OIL | |
| 01. | 4506459 | [12] | FLANGE;SPLIT | |
| 02. | 971489 | [6] | O-RING | |
| 03. | J781035 | [24] | BOLT;SOCKET | |
| 04. | 4240494 | [3] | ADAPTER;S | |
| 05. | A852333 | [2] | ELBOW;S | |
| 05A. | 4509180 | [1] | O-RING | |
| 06. | 966689 | [3] | O-RING | |
| 08. | Y411204 | [1] | MOTOR;OIL | |
| 09. | J901260 | [5] | BOLT | |
| 10. | J950012 | [5] | NUT | |
| 11. | A590912 | [5] | WASHER;SPRING | |
| 12. | Y301788 | [1] | FLANGE | |
| 13. | A811040 | [2] | O-RING | |
| 14. | J781050 | [4] | BOLT;SOCKET | |
| 15. | 4214444 | [2] | ADAPTER;S | |
| 15A. | 4506429 | [1] | O-RING | |
| 16. | A852133 | [3] | ADAPTER;S | |
| 16A. | 4509180 | [1] | O-RING | |
| 17. | 4475056 | [1] | ADAPTER;S | |
| 17A. | 4461521 | [1] | O-RING | |
| 19. | Y411201 | [1] | MOTOR;OIL | |
| 20. | Y301342 | [2] | FLANGE | |
| 21. | A811035 | [4] | O-RING | |
| 22. | J781235 | [8] | BOLT;SOCKET | |
| 23. | Y411676 | [1] | TEE;S | |
| 24. | Y411673 | [1] | ADAPTER;S | |
| 25. | Y412011 | [1] | VALVE;CHECK | |
| 26. | Y411688 | [1] | ADAPTER;S | |
| 27. | Y411685 | [1] | ELBOW;S | |
| 28. | Y411796 | [1] | TEE;S | |
| 30. | Y411206 | [1] | MOTOR;OIL | |
| 31. | Y301353 | [2] | FLANGE | |
| 32. | J781030 | [8] | BOLT;SOCKET | |
| 33. | Y411687 | [2] | ADAPTER;S | |
| 34. | Y411693 | [1] | TEE;S | |
| 35. | Y411797 | [1] | ADAPTER;S | |
| 38. | Y411205 | [1] | MOTOR;OIL | |
| 39. | Y411674 | [2] | ADAPTER;S | |
| 40. | Y411681 | [2] | NUT | |
| 41. | Y411788 | [2] | REDUCER;S | |
| 42. | Y410333 | [1] | CONNECTOR | |
| 43. | 4462880 | [1] | ADAPTER;S | |
| 43A. | 957366 | [1] | O-RING | |
| 50. | Y414931 | [1] | MOTOR;GEAR | |
| 51. | 4419882 | [1] | ADAPTER;S | |
| 51A. | R26906R | [1] | O-RING | |
| 52. | 4327300 | [1] | ELBOW;S | |
| 52A. | R26906R | [1] | O-RING | |
| 53. | 4277654 | [1] | ELBOW;S | |
| 53A. | R26448R | [1] | O-RING | |
