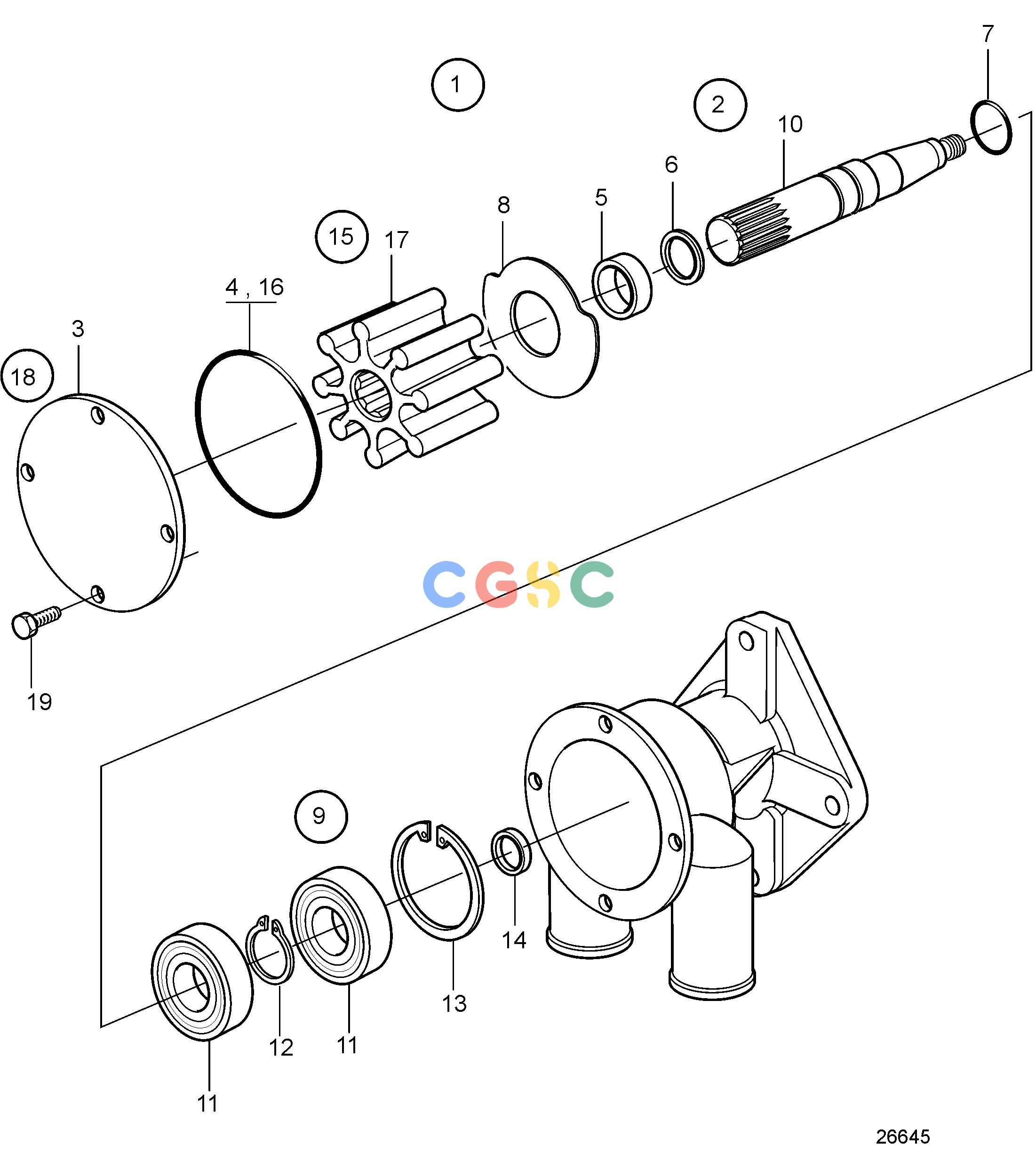

沃尔沃零件查询D2-55; D2-55B; D2-55C; D2-55D; D2-55E; D2-55FCooling SystemSea Water Pump, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
398 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3583089
|
[1] |
Sea water pump
|
|
| 2. |
21951374
|
[1] |
Wear kit
|
|
| 3. |
3583985
|
[1] |
Cap
|
|
| 4. |
3583809
|
[1] |
O-ring
|
|
| 5. |
3583987
|
[1] |
Sealing ring
|
|
| 6. |
3583988
|
[1] |
Washer
|
|
| 7. |
925057
|
[1] |
O-ring
|
|
| 8. |
|
|
|
|
| 9. |
21951429
|
[1] |
Shaft kit
|
|
| 10. |
|
|
|
|
| 11. |
860202
|
[2] |
Bearing
|
|
| 12. |
914451
|
[1] |
Snap ring
|
|
| 13. |
3583991
|
[1] |
Locking clip
|
|
| 14. |
3583992
|
[1] |
Sealing ring
|
|
| 15. |
877400
|
[1] |
Impeller kit
|
Replaced by next part number
|
| 15. |
3862281
|
[1] |
Impeller kit
|
Replaced by next part number
|
| 15. |
21951346
|
[1] |
Impeller kit
|
|
| 16. |
3583809
|
[1] |
O-ring
|
|
| 17. |
|
|
|
|
| 18. |
21951334
|
[1] |
Screw kit
|
|
| 19. |
21346724
|
[4] |
Hexagon screw
|
Use screw kit 21951334
|
