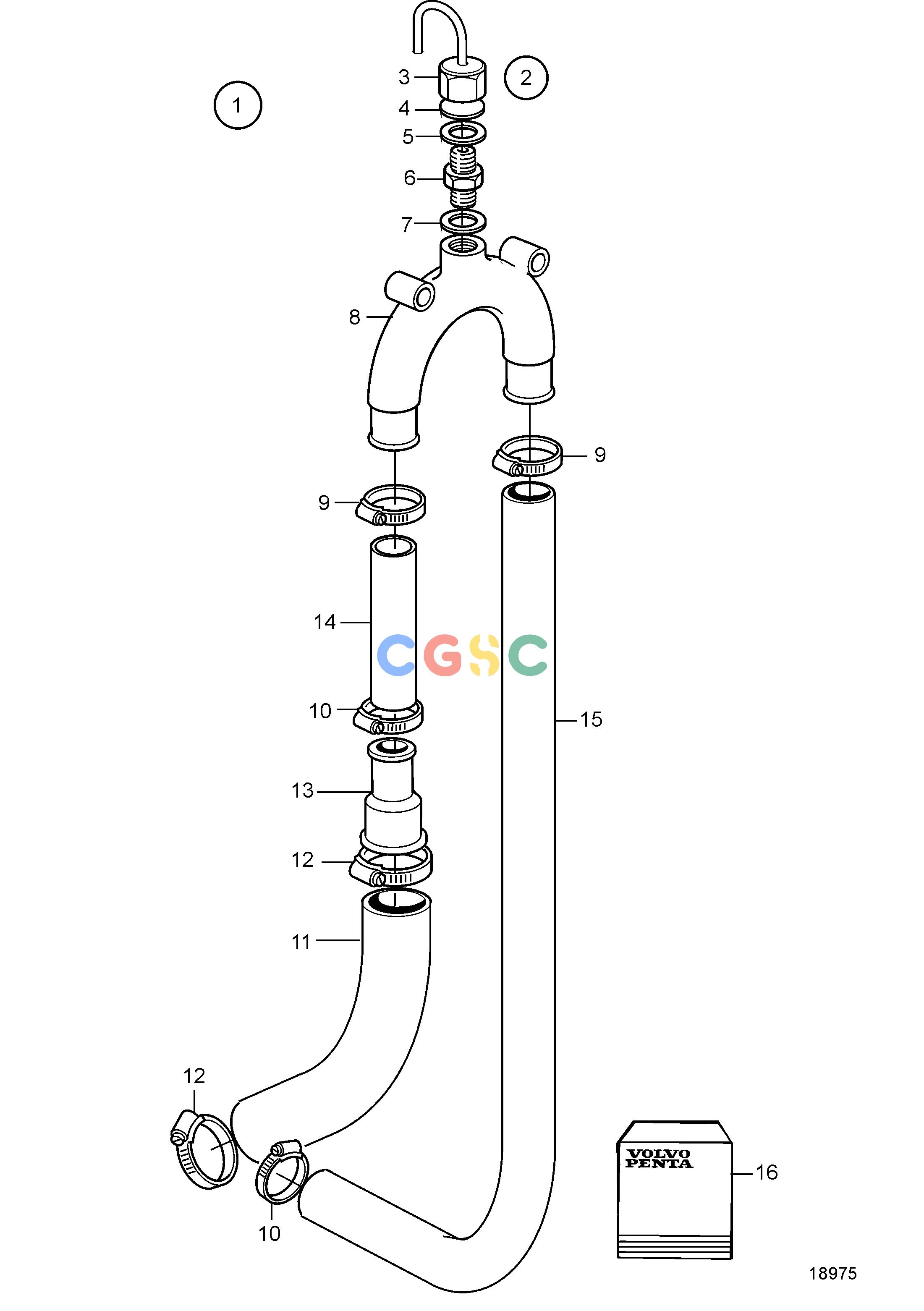

沃尔沃零件查询D2-55; D2-55B; D2-55C; D2-55D; D2-55E; D2-55FCooling SystemVacuum ValveEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
222 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21662704
|
[1] |
Vacuum valve
|
|
| 2. |
828534
|
[1] |
Vacuum valve
|
|
| 3. |
828533
|
[1] |
Upper section
|
|
| 4. |
|
|
|
Included in overhaul kit.
|
| 5. |
828424
|
[2] |
Gasket
|
Included in overhaul kit.
|
| 6. |
828266
|
[1] |
Lower section
|
|
| 7. |
947282
|
[2] |
Gasket
|
Included in overhaul kit.
|
| 8. |
828501
|
[1] |
Branch pipe
|
|
| 9. |
853548
|
[2] |
Hose clamp
|
|
| 10. |
853548
|
[2] |
Hose clamp
|
Not included in vacuum valve kit. Use existing hose clamps from engine.
|
| 11. |
941799
|
[1] |
Hose
|
L=300mm
|
| 12. |
961669
|
[2] |
Hose clamp
|
|
| 13. |
859987
|
[1] |
Tube
|
|
| 14. |
|
|
|
Not included in vacuum valve kit. Use existing hose from engine.
|
| 15. |
|
|
|
Not included in vacuum valve kit. Use existing hose from engine.
|
| 16. |
3818424
|
[1] |
Repair kit
|
(875738)
|
