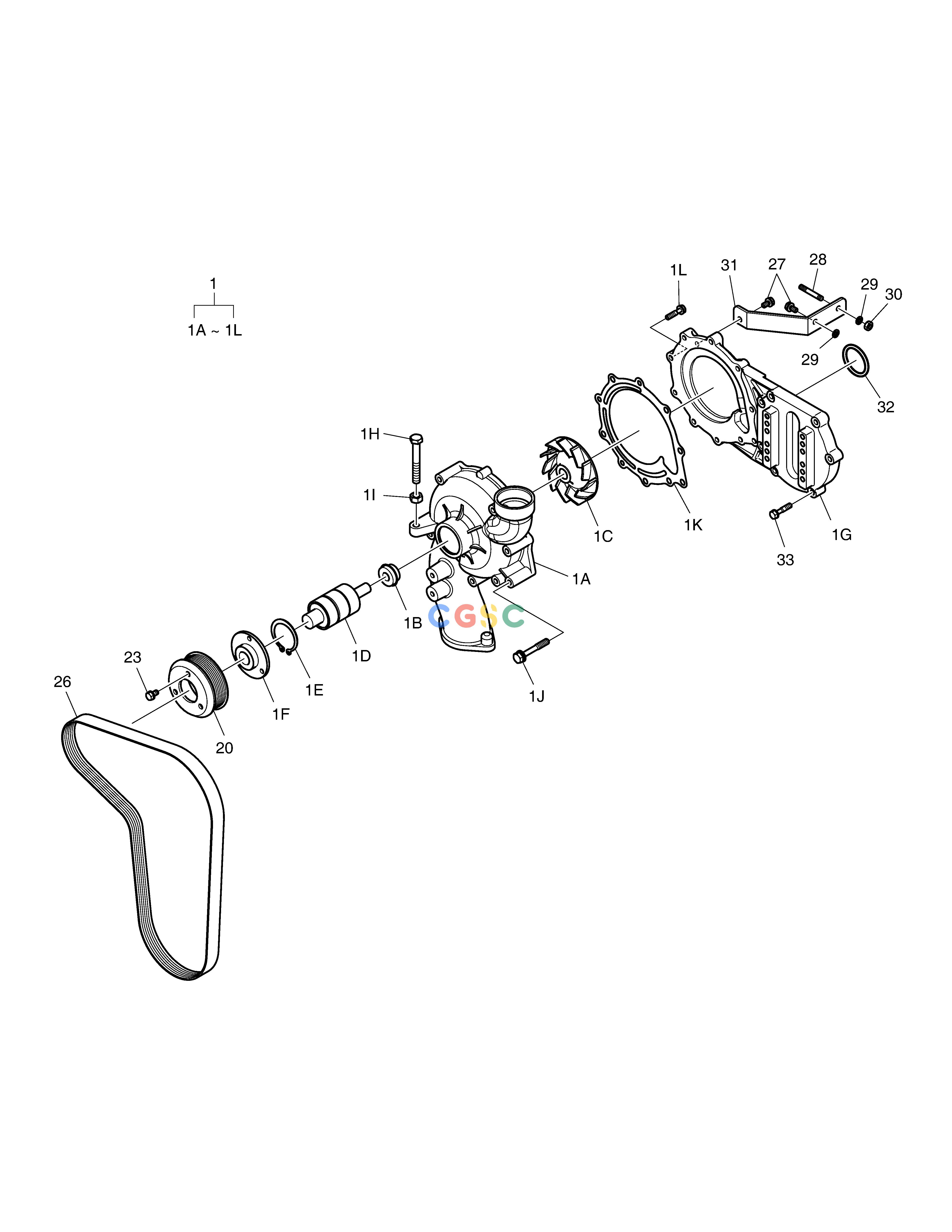

斗山零件查询WATER PUMP DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
852 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
400921-00062
|
[1] |
|
|
| 1A. |
400923-00023
|
[1] |
|
|
| 1B. |
65.06520-6008
|
[1] |
. SEAL;MECHANICAL
|
|
| 1C. |
400902-00010
|
[1] |
|
|
| 1D. |
65.93410-0087
|
[1] |
. BEARING
|
|
| 1E. |
06.29020-0132
|
[1] |
. SNAP RING
|
|
| 1F. |
900122-00027
|
[1] |
|
|
| 1G. |
110508-00671
|
[1] |
|
|
| 1H. |
120106-00269
|
[1] |
|
|
| 1I. |
06.11063-8216
|
[1] |
|
|
| 1J. |
06.01923-3225
|
[7] |
BOLT ASS'Y M10X70
|
|
| 1K. |
400602-00124
|
[1] |
|
|
| 1L. |
06.01913-3118
|
[3] |
. BOLT ASS`Y M8X35
|
|
| 20. |
130707-00027
|
[1] |
|
|
| 23. |
06.01913-3111
|
[3] |
BOLT ASS`Y M8X16
|
|
| 26. |
130205-00417
|
[1] |
|
|
| 26. |
130205-00064
|
[1] |
|
130205-00417
|
| 27. |
06.01913-3111
|
[2] |
BOLT ASS`Y M8X16
|
|
| 28. |
65.90201-0128
|
[1] |
BOLT;STUD
|
|
| 29. |
06.16731-2107
|
[2] |
WASHER
|
|
| 30. |
06.11063-8214
|
[1] |
. NUT
|
|
| 31. |
110449-00018
|
[1] |
|
|
| 32. |
65.96501-0089A
|
[1] |
O-RING
|
|
| 33. |
06.01913-3119
|
[7] |
BOLT ASS`Y M8X40
|
|
