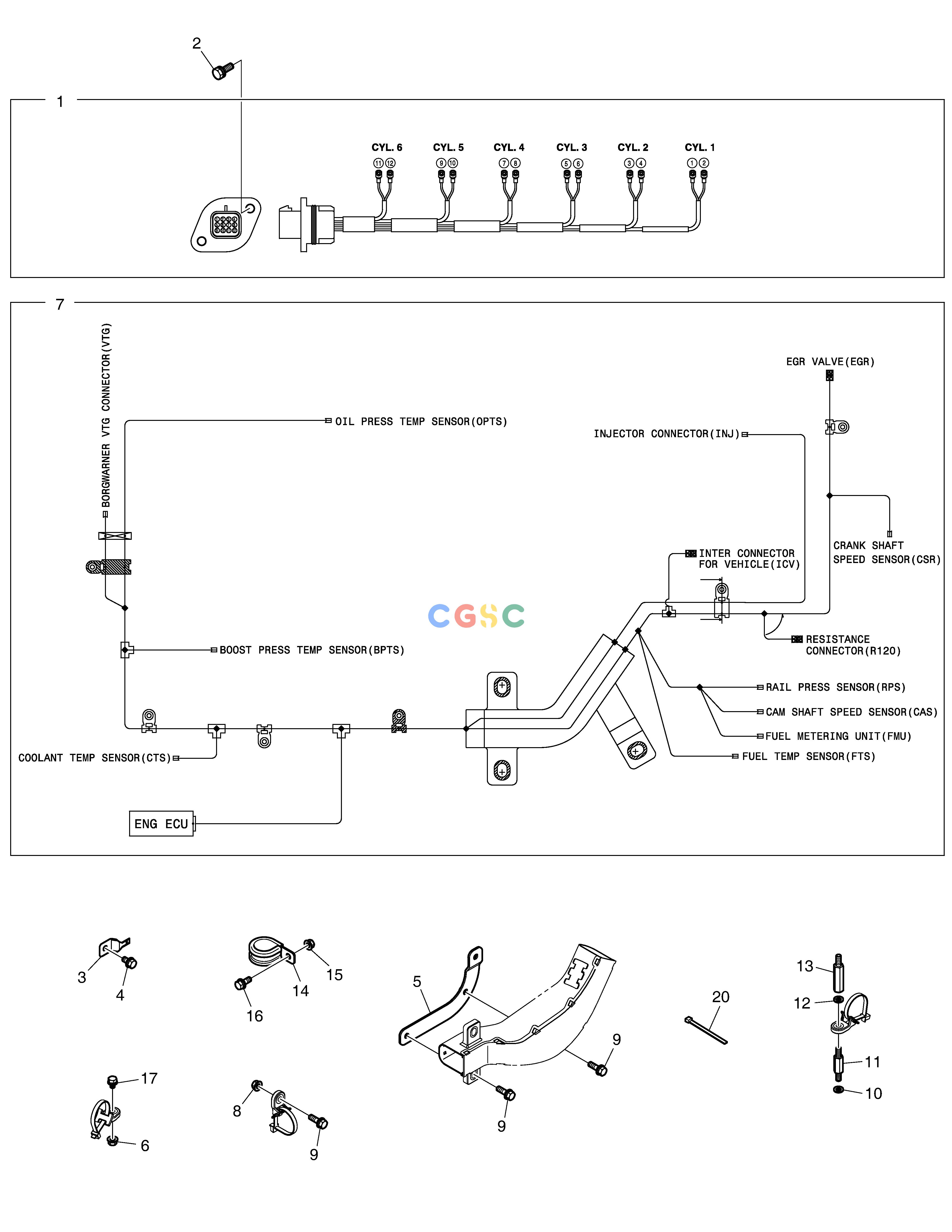

斗山零件查询WIRE HARNESS DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
941 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.29101-6137E
|
[1] |
WIRE;ELECTIRC
|
|
| 1. |
310208-00439
|
[1] |
|
|
| 10. |
06.16731-2107
|
[7] |
WASHER
|
|
| 11. |
120122-00022
|
[7] |
|
|
| 12. |
06.16731-2107
|
[4] |
WASHER
|
|
| 13. |
120122-00023
|
[4] |
BOLT;SPACER
|
|
| 14. |
65.97401-5019
|
[1] |
CLIP;PIPE
|
|
| 15. |
65.90535-0003
|
[1] |
NUT
|
|
| 16. |
06.01913-3114
|
[1] |
BOLT ASS`Y M8X22
|
|
| 17. |
06.01923-3212
|
[1] |
BOLT ASS'Y
|
|
| 2. |
06.01923-2911
|
[2] |
BOLT ASS`Y M6X16
|
|
| 20. |
65.97460-0008
|
[6] |
BAND;TENSION
|
|
| 20. |
310101-00172
|
[6] |
TIE,CABLE
|
|
| 3. |
110452-00060
|
[1] |
|
|
| 4. |
06.01923-3212
|
[1] |
BOLT ASS'Y
|
|
| 5. |
110452-00061
|
[1] |
|
|
| 6. |
65.90535-0003
|
[1] |
NUT
|
|
| 7. |
310207-02514
|
[1] |
|
310207-02514A
|
| 7. |
310207-02514A
|
[1] |
|
310207-02514B
|
| 7. |
310207-02514B
|
[1] |
|
|
| 7. |
310207-04040
|
[1] |
|
|
| 8. |
65.90535-0003
|
[2] |
NUT
|
|
| 9. |
06.01923-3116
|
[2] |
BOLT ASS`Y M8X28
|
|
