纽荷兰零件查询(DC150.B) - CRAWLER DOZER TIER 2 (3/03-) (9.652[01]) - ROPS CANOPY - STRUCTURE ROPS - OPTIONAL CODE 784111091 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
278 次

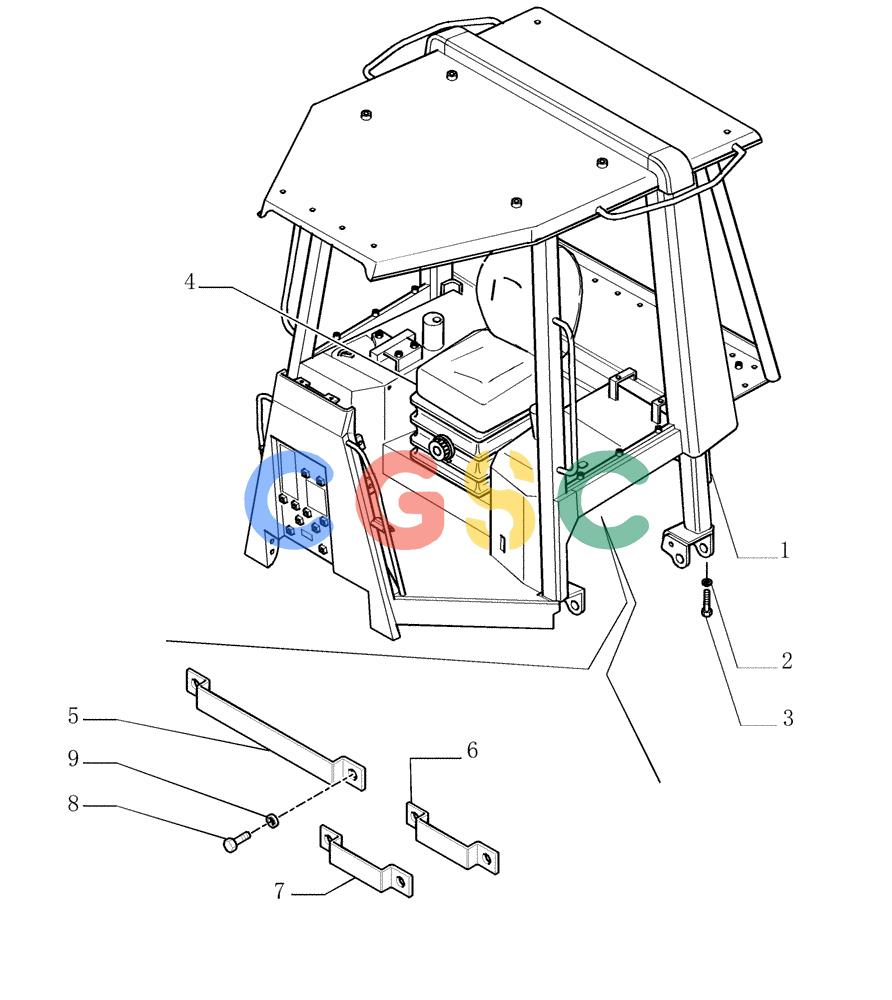

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76092314 | [1] | CAB | LEC |
| 2. | 15988331 | [12] | BOLT,Hex, M20 x 1.5 x 60mm, Cl 10.9, Full Thd | LEC Superseded by part number: 15988337 |
| 3. | 79005243 | [12] | WASHER,20.4mm ID x 46mm OD x 8mm Thk | LEC |
| 4. | 76092306 | [1] | DRIVER SEAT | LECKAB 835 ASSY SEE PAG.1A |
| 5. | 76071048 | [1] | BRACKET | LEC |
| 6. | 76071050 | [1] | BRACKET | LEC |
| 7. | 76071049 | [1] | BRACKET | LEC |
| 8. | 86625003 | [6] | BOLT,Hex, M8 x 50mm, Cl 10.9 | FAR8X55 |
| 9. | 79011527 | [6] | WASHER,8.6mm ID x 22mm OD x 5mm Thk | LEC |
