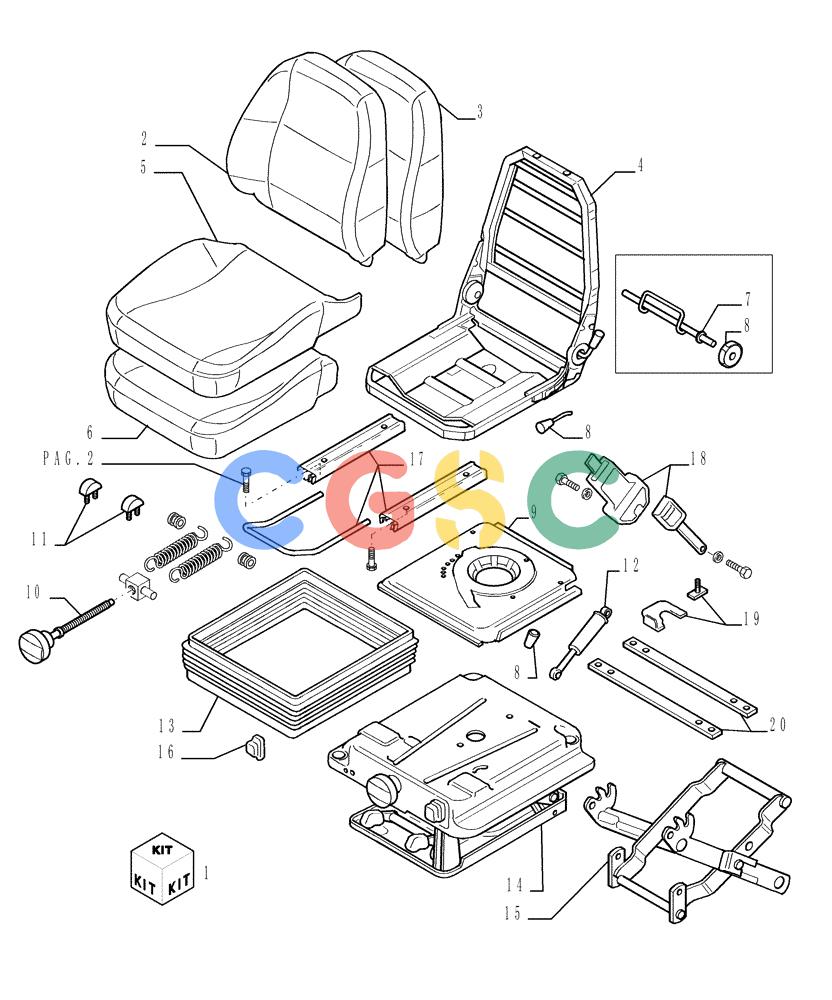

纽荷兰零件查询(DC150.B) - CRAWLER DOZER TIER 2 (3/03-) (9.652[01A]) - HEATED SEAT AT MECHANICAL SUSPENSION - COMPONENTS - OPTIONAL CODE 784111091 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
445 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76095032 | [1] | KIT | LEC- KIT - UPPER ASSY |
| 2. | 76095033 | [1] | SEAT CUSHION | LEC- SEAT BACK COVERING |
| 3. | 76095002 | [1] | SEAT BACK | LEC- SEAT BACK Superseded by part number: 9969293 |
| 4. | 76095003 | [1] | FRAME | LEC- CUSHION COVERING |
| 5. | 76095034 | [1] | SEAT CUSHION | LEC- CUSHION - COVERING Superseded by part number: 6190727M91 |
| 6. | 76095024 | [1] | SEAT CUSHION | LEC- CUSHION Superseded by part number: 6190728M91 |
| 7. | 76095006 | [1] | KIT | LEC |
| 8. | 76095007 | [1] | KIT | LEC- HEIGHT REGULATING |
| 9. | 76095008 | [1] | KIT | LEC |
| 10. | 76095025 | [1] | KIT | LEC- REGULATOR |
| 11. | 76095010 | [1] | KIT | LEC- STOP BLOCK |
| 12. | 76095026 | [1] | KIT | LEC- SHOCK ABSORBER - SPRNGS |
| 13. | 76095012 | [1] | KIT | LEC |
| 14. | 76095027 | [1] | KIT | LEC |
| 15. | 76095028 | [1] | KIT | LEC |
| 16. | 76095015 | [1] | KIT | LEC |
| 17. | 76095017 | [1] | KIT | LEC |
| 18. | 76095018 | [1] | SAFETY BELT | LEC |
| 19. | 76095019 | [1] | KIT | LEC |
| 20. | 76095020 | [1] | KIT | LEC |
