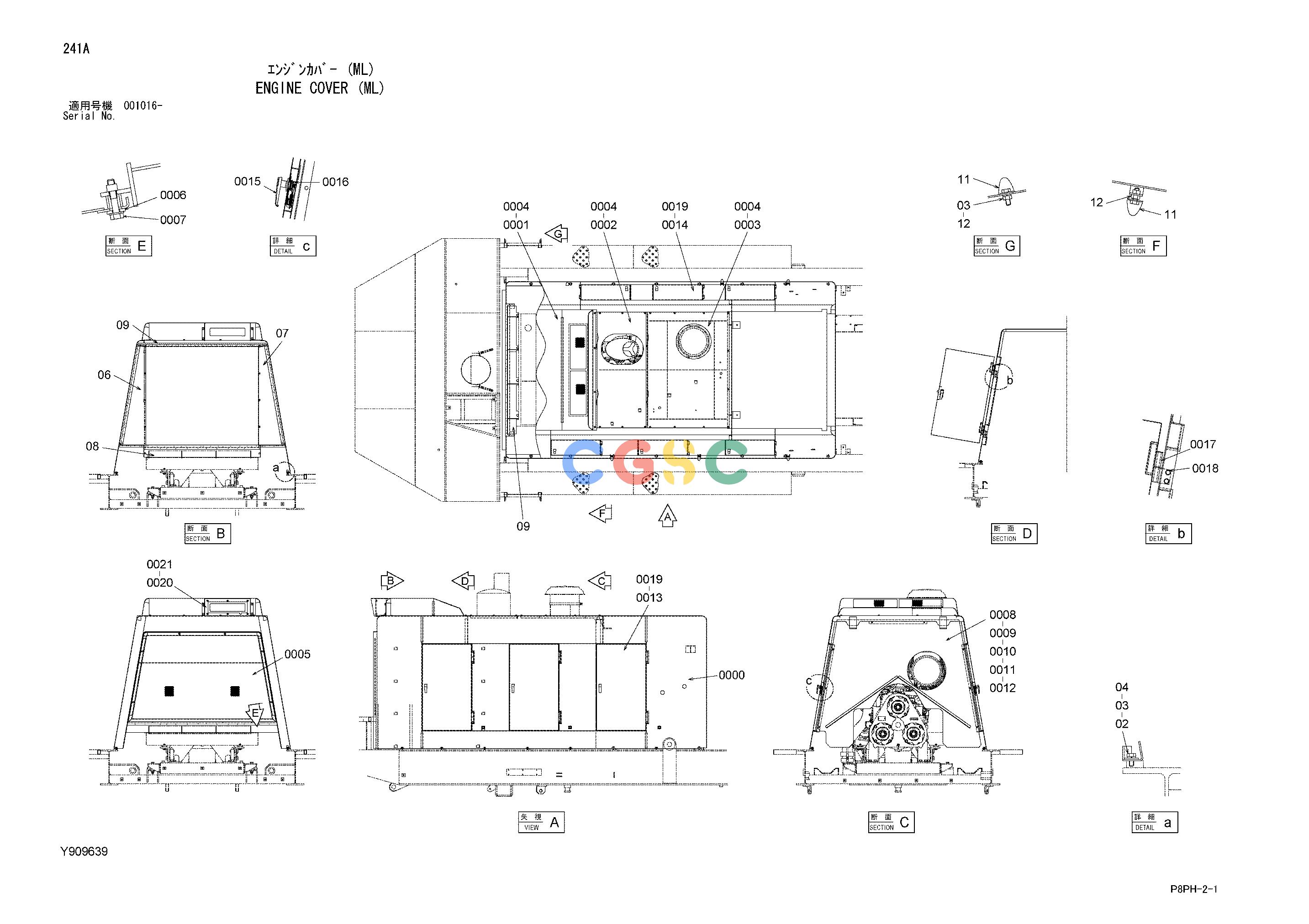

日立零件查询（AR2000）ENGINE COVER (ML) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
702 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y412691 | [1] | COVER;ENGINE | |
| 00. | Y413829 | [1] | COVER;ENGINE | |
| 0000. | Y500292 | [1] | COVER;ENGINE | |
| 0000. | Y500313 | [1] | COVER;ENGINE | |
| 0001. | Y701097 | [1] | COVER | |
| 0001. | Y701002 | [1] | COVER | |
| 0002. | Y802198 | [1] | ROOF | |
| 0003. | Y802197 | [1] | ROOF | |
| 0004. | J260820 | [30] | BOLT;SEMS | |
| 0004A. | J900820 | [1] | BOLT | |
| 0004B. | A590108 | [1] | WASHER;PLANE | |
| 0004. | J260820 | [24] | BOLT;SEMS | |
| 0004A. | J900820 | [1] | BOLT | |
| 0004B. | A590108 | [1] | WASHER;PLANE | |
| 0005. | Y802209 | [1] | GRILLE | |
| 0005. | Y802334 | [1] | GRILLE | |
| 0006. | Y411714 | [4] | WASHER | |
| 0006. | Y411714 | [6] | WASHER | |
| 0007. | J260840 | [4] | BOLT;SEMS | |
| 0007A. | J900840 | [1] | BOLT | |
| 0007B. | A590108 | [1] | WASHER;PLANE | |
| 0007. | J260840 | [6] | BOLT;SEMS | |
| 0007A. | J900840 | [1] | BOLT | |
| 0007B. | A590108 | [1] | WASHER;PLANE | |
| 0008. | Y301790 | [1] | COVER | |
| 0008. | Y802332 | [1] | COVER | |
| 0009. | J900820 | [6] | BOLT | |
| 0009. | J900820 | [8] | BOLT | |
| 0010. | A590108 | [6] | WASHER;PLANE | |
| 0010. | A590108 | [8] | WASHER;PLANE | |
| 0011. | A590908 | [6] | WASHER;SPRING | |
| 0011. | A590908 | [8] | WASHER;SPRING | |
| 0012. | M500807 | [6] | NUT | |
| 0013. | Y700916 | [4] | DOOR (R) | |
| 0014. | Y700917 | [2] | DOOR (L) | |
| 0015. | Y411669 | [6] | HANDLE;DOOR | |
| 0016. | Y411721 | [6] | RATCH | |
| 0017. | Y411623 | [12] | HINGE | |
| 0018. | J260825 | [24] | BOLT;SEMS | |
| 0018A. | J900825 | [1] | BOLT | |
| 0018B. | A590108 | [1] | WASHER;PLANE | |
| 0019. | Y412690 | [6] | RUBBER | |
| 0020. | Y802211 | [1] | COVER | |
| 0020. | Y802331 | [1] | COVER | |
| 0021. | J271030 | [4] | BOLT;SEMS | |
| 0021A. | J901030 | [1] | BOLT | |
| 0021B. | J222010 | [1] | WASHER | |
| 0021. | J261030 | [4] | BOLT;SEMS | |
| 02. | J921025 | [16] | BOLT | |
| 03. | A590910 | [17] | WASHER;SPRING | |
| 04. | J217083 | [32] | WASHER | |
| 04. | J217083 | [16] | WASHER | |
| 06. | Y802204 | [1] | COVER | |
| 06. | Y802323 | [1] | COVER | |
| 07. | Y802205 | [1] | COVER | |
| 07. | Y802324 | [1] | COVER | |
| 08. | Y700969 | [1] | COVER | |
| 08. | Y802325 | [1] | COVER | |
| 09. | Y802206 | [1] | COVER | |
| 11. | 4204586 | [6] | STOPPER | |
| 12. | J950010 | [6] | NUT | |
