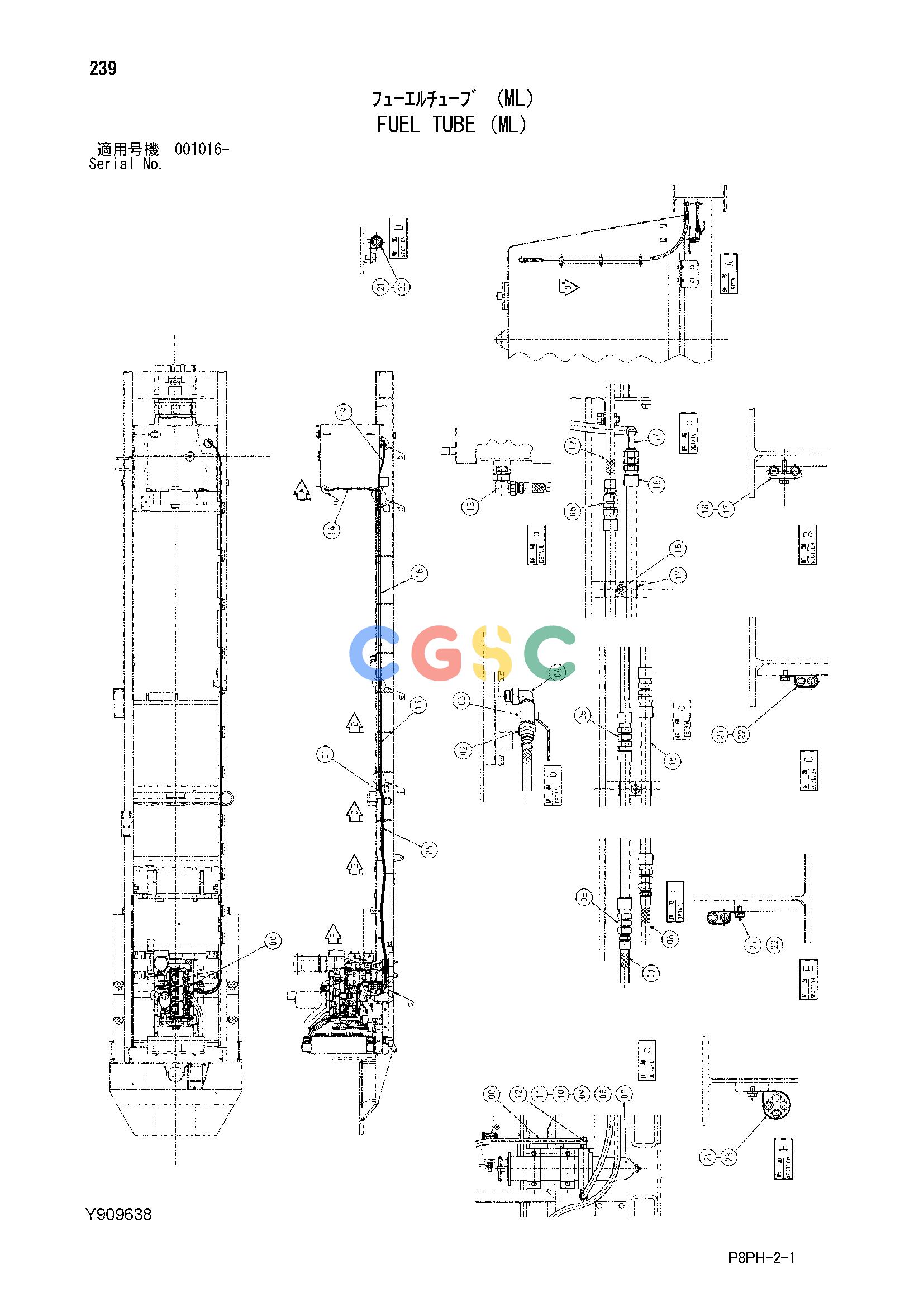

日立零件查询（AR2000）FUEL TUBE (ML) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
186 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y412717 | [1] | HOSE | |
| 01. | Y412718 | [1] | HOSE | |
| 02. | 4317015 | [1] | ADAPTER;S | |
| 03. | 94-4029 | [1] | COCK | |
| 04. | 4174588 | [1] | ELBOW;S | |
| 04A. | 4506424 | [1] | O-RING | |
| 05. | 4277889 | [6] | ADAPTER;S | |
| 06. | Y412719 | [1] | HOSE | |
| 07. | Y409588 | [1] | FILTER;FUEL | |
| 08. | J900825 | [4] | BOLT | |
| 09. | A590908 | [4] | WASHER;SPRING | |
| 10. | A590108 | [4] | WASHER;PLANE | |
| 11. | J950008 | [4] | NUT | |
| 12. | 4154658 | [2] | ELBOW;S | |
| 13. | 4353073 | [1] | ELBOW;S | |
| 13A. | 4506424 | [1] | O-RING | |
| 14. | Y412720 | [1] | HOSE | |
| 15. | Y971461 | [2] | PIPE | |
| 16. | Y971462 | [2] | PIPE | |
| 17. | 4053593 | [7] | CLAMP;PIPE | |
| 17. | 4189858 | [7] | CLAMP;PIPE | |
| 18. | J271045 | [7] | BOLT;SEMS | |
| 18A. | J901045 | [1] | BOLT | |
| 18B. | J222010 | [1] | WASHER | |
| 18. | J271245 | [7] | BOLT;SEMS | |
| 18A. | J901245 | [1] | BOLT | |
| 18B. | J222012 | [1] | WASHER | |
| 19. | Y408952 | [1] | HOSE | |
| 20. | 4190263 | [3] | CLIP | |
| 21. | J271016 | [8] | BOLT;SEMS | |
| 21A. | J901016 | [1] | BOLT | |
| 21B. | J222010 | [1] | WASHER | |
| 22. | 4192034 | [4] | CLIP | |
| 23. | 4193816 | [1] | CLIP | |
