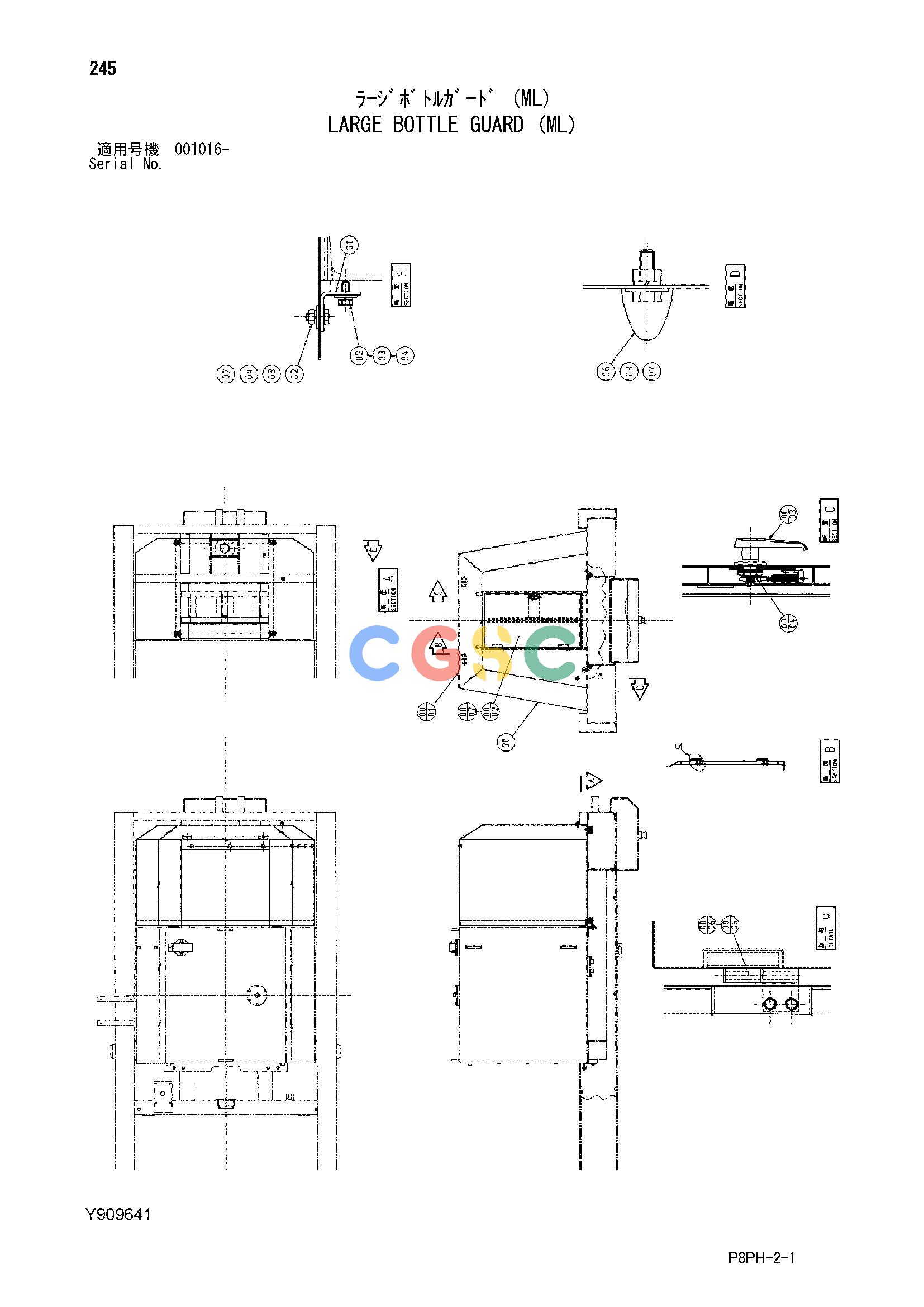

日立零件查询（AR2000）LARGE BOTTLE GUARD (ML) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
999 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y412697 | [1] | LARGE BOTTLE GUARD | |
| 0001. | Y600528 | [1] | LARGE BOTTLE GUARD | |
| 0002. | Y700917 | [1] | LEFT DOOR | |
| 0003. | Y411669 | [1] | HANDLE;DOOR | |
| 0004. | Y411721 | [1] | RATCH | |
| 0005. | Y411623 | [2] | HINGE | |
| 0006. | J260825 | [4] | BOLT;SEMS | |
| 0006A. | J900825 | [1] | BOLT | |
| 0006B. | A590108 | [1] | WASHER;PLANE | |
| 0007. | Y412690 | [1] | RUBBER | |
| 01. | Y412698 | [4] | BRACKET | |
| 02. | J901025 | [8] | BOLT | |
| 03. | A590910 | [9] | WASHER;SPRING | |
| 04. | J217083 | [8] | WASHER | |
| 06. | 4204586 | [1] | STOPPER | |
| 07. | J950010 | [5] | NUT | |
