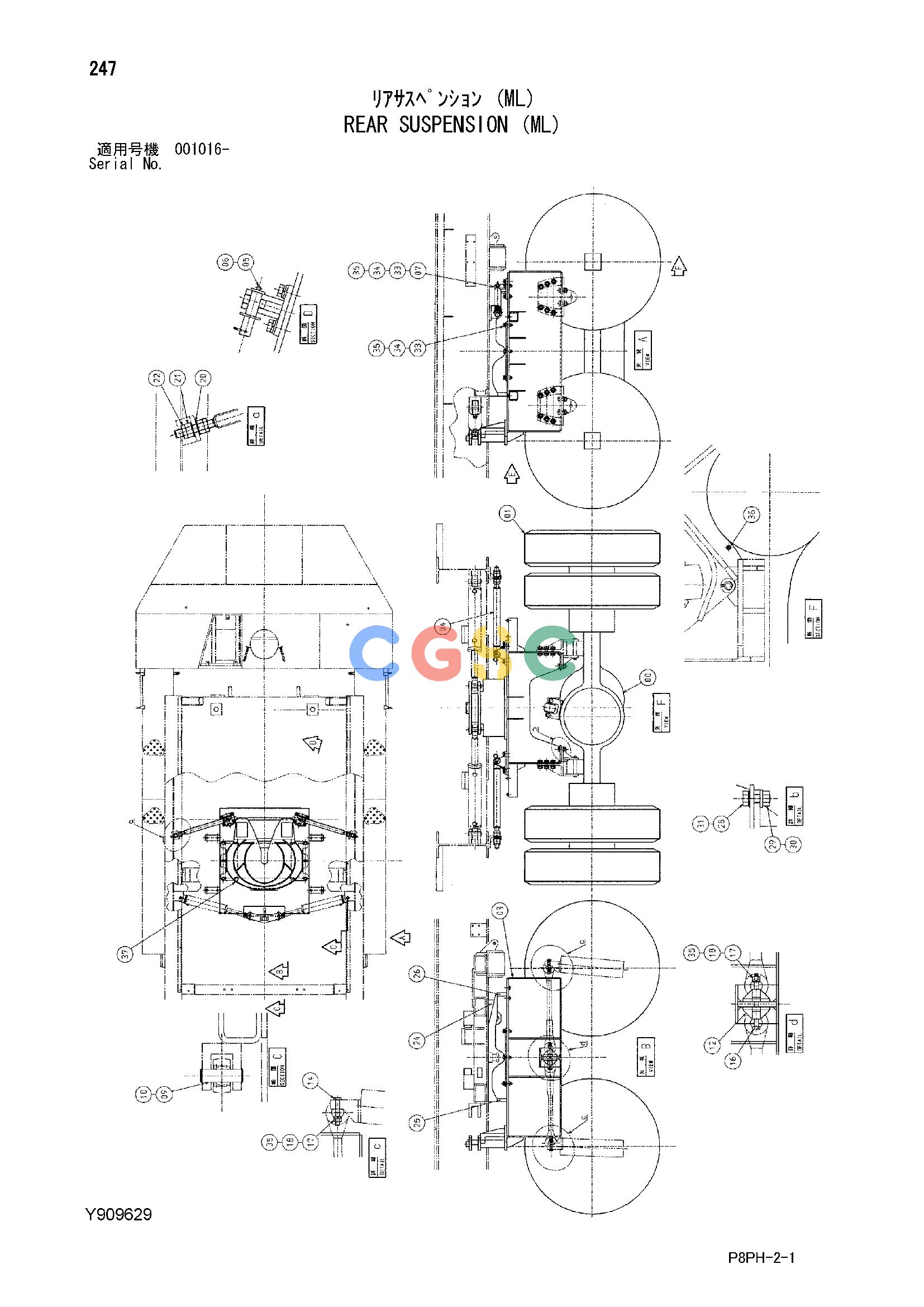

日立零件查询（AR2000）REAR SUSPENSION (ML) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
687 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y411236 | [1] | BOGIE | |
| 01. | Y909121 | [8] | TIRE ASS'Y | |
| 01A. | Y411241 | [1] | RIM;WHEEL | |
| 01B. | Y411224 | [1] | TIRE | |
| 03. | Y700954 | [1] | BOX | |
| 04. | Y801749 | [2] | STEERING TIE ROD | |
| 05. | Y970884 | [2] | PIN | |
| 06. | K422098 | [2] | PIN;LOCK | |
| 07. | Y971384 | [2] | BRACKET | |
| 09. | Y411406 | [4] | PIN | |
| 10. | 927488 | [8] | RING;RETAINING | |
| 12. | Y971278 | [2] | BRACKET | |
| 14. | J831600 | [4] | BOLT | |
| 16. | J831615 | [2] | BOLT | |
| 17. | J952016 | [6] | NUT | |
| 18. | A590116 | [6] | WASHER;PLANE | |
| 20. | A590130 | [4] | WASHER;PLANE | |
| 21. | J950030 | [4] | NUT | |
| 22. | Y409545 | [4] | NUT | |
| 24. | Y409476 | [2] | WEDGE | |
| 25. | Y409477 | [1] | BAR;FLAT | |
| 26. | Y409478 | [1] | BAR;FLAT | |
| 28. | J922050 | [32] | BOLT | |
| 29. | J950020 | [32] | NUT | |
| 30. | J222020 | [32] | WASHER | |
| 31. | A590120 | [32] | WASHER;PLANE | |
| 33. | J921655 | [18] | BOLT | |
| 34. | J222016 | [18] | WASHER | |
| 35. | A590916 | [24] | WASHER;SPRING | |
| 36. | 493333 | [1] | PLUG | |
| 37. | Y409467 | [1] | BASE;SADDLE | |
