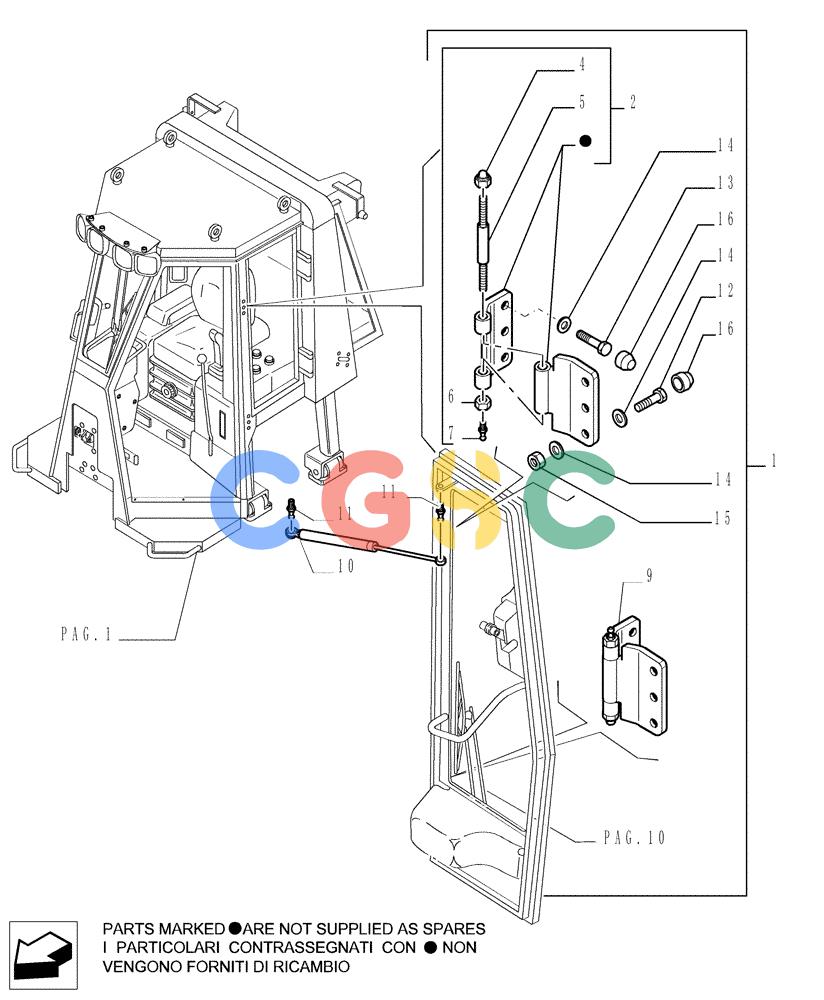

纽荷兰零件查询(DC150.B) - CRAWLER DOZER TIER 2 (3/03-) (9.653[09]) - ROPS CAB - DOOR - OPTIONAL CODE 784110171 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
297 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76079037 | [1] | - RIGHT ASSY SEE PAG.10 | |
| 1. | 76079038 | [1] | - LEFT ASSY SEE PAG.10 | |
| 2. | 76079003 | [1] | HINGE | LECASSY - UPPER Superseded by part number: 76067142 |
| 3. | 76079006 | [1] | HALF-HINGE | LEC- UPPER |
| 4. | 14055811 | [1] | NUT | LEC12X1,75 |
| 5. | 76067139 | [1] | PIN | LEC |
| 6. | 11702911 | [1] | NUT,M12, Cl 8, ZND | LEC Superseded by part number: 17038425 |
| 7. | 76043510 | [1] | LUBE NIPPLE,M6 x 1 x 15 L | LEC Superseded by part number: 1491009 |
| 9. | 76079004 | [1] | HINGE | LEC- LOWER Superseded by part number: 76067142 |
| 10. | 76067801 | [2] | GAS STRUT | LEC- GAS F=300 L=485 C=200 |
| 11. | 76078220 | [2] | HINGE | LEC |
| 12. | 11006631 | [6] | SCREW | NHM10X35 |
| 13. | 16160124 | [6] | BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd | BURM10X30 Superseded by part number: 120113 |
| 14. | 14496634 | [18] | WASHER,M10 | BUR Superseded by part number: 14496621 |
| 15. | 11701714 | [6] | NUT | LECM10X1,5 Superseded by part number: 17038131 |
| 16. | 71480911 | [12] | DUST CAP | LEC |
