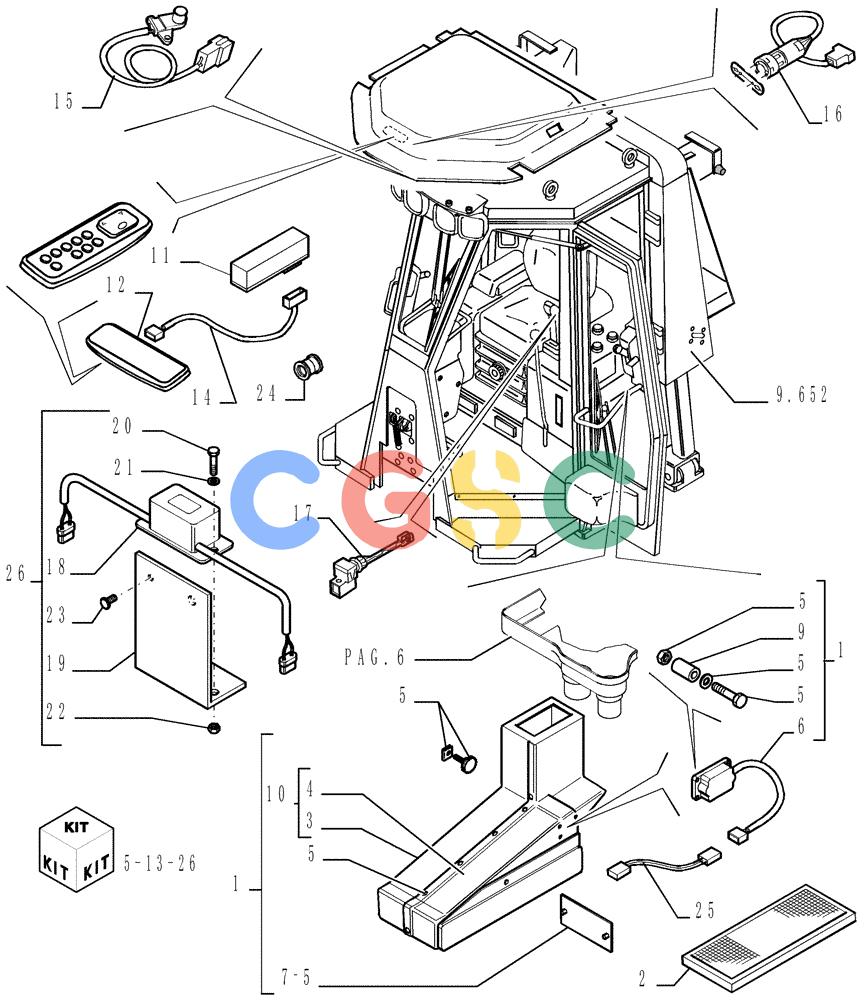

纽荷兰零件查询(DC150.B) - CRAWLER DOZER TIER 2 (3/03-) (9.653[08]) - ROPS CAB WITH CONDITIONER - OPTIONAL CODE 784110121 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
527 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76093594 | [1] | DUCT | LEC |
| 2. | 76092248 | [1] | CAB FILTER | LEC |
| 3. | 76093595 | [1] | HALF-SHELL | LECSUP. Superseded by part number: 76093552 |
| 4. | 76093596 | [1] | HALF-SHELL | LECINF. Superseded by part number: 76093552 |
| 5. | 76093601 | [1] | KIT | LEC |
| 6. | 76093598 | [1] | ACTUATOR | LEC Superseded by part number: 76089512 |
| 7. | 76093597 | [1] | COVER | LEC |
| 9. | 76093599 | [3] | BUSHING | LEC |
| 10. | 76093552 | [1] | AIR DUCT | LECASSY. |
| 11. | 76093616 | [1] | ECU | LEC Superseded by part number: 87372756 |
| 12. | 87354474 | [1] | COVER | LEC |
| 13. | 76089543 | [1] | KIT | LECKIT Superseded by part number: 87363711 |
| 14. | 76093617 | [1] | WIRE HARNESS | LEC |
| 15. | 76093620 | [1] | SENSOR | LEC Superseded by part number: 76089549 |
| 16. | 76093619 | [1] | SENSOR | LEC |
| 17. | 76093621 | [1] | SENSOR | LEC |
| 18. | 76095126 | [1] | TIMER | LEC |
| 19. | 76095127 | [1] | BRACKET | LEC |
| 20. | 10444821 | [2] | SCREW,Hex, M4 x 16mm, Cl 8.8, Full Thd | TTF Superseded by part number: 412064 |
| 21. | 13506621 | [2] | WASHER | IMO |
| 22. | 10794021 | [2] | NUT,M4, Cl 10 | MKT Superseded by part number: 57121 |
| 23. | 15688801 | [1] | SELF-TAP SCREW | LEC |
| 24. | 71485202 | [1] | GROMMET,M5 x 21 x 16 | LEC |
| 25. | 87342271 | [1] | WIRE HARNESS | LEC |
| 26. | 76095125 | [1] | KIT | BUR |
