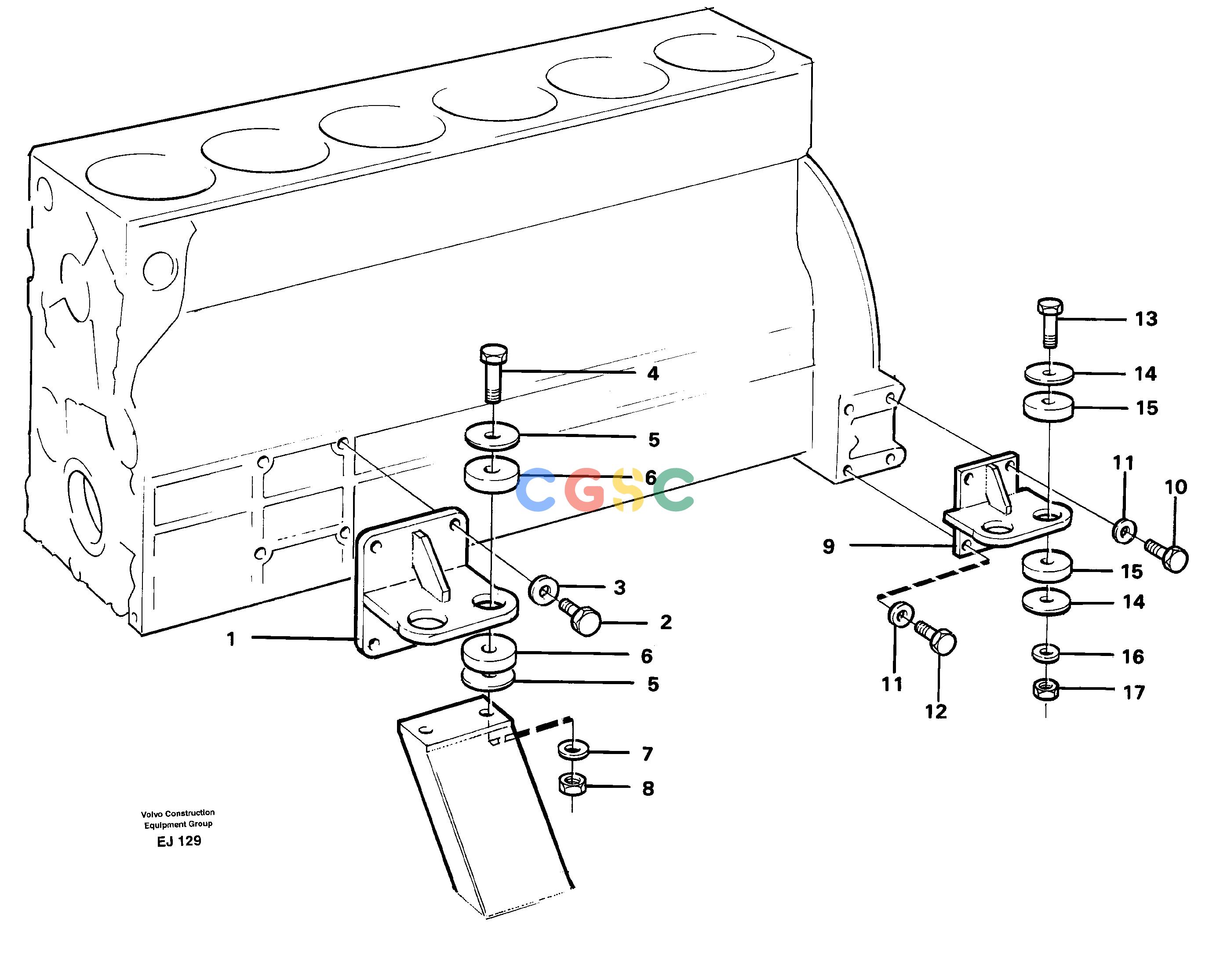

沃尔沃零件查询L330D Engine mountingNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
291 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11109447
|
[2] |
Support
|
|
| 2. |
VOE13955366
|
[8] |
Screw
|
|
| 3. |
VOE2560247
|
[16] |
Washer
|
|
| 4. |
VOE982234
|
[4] |
Hexagon screw
|
|
| 5. |
VOE12580854
|
[8] |
Washer
|
|
| 6. |
VOE1501227
|
[8] |
Base
|
|
| 7. |
VOE13811436
|
[4] |
Washer
|
|
| 8. |
VOE13811196
|
[4] |
Lock nut
|
|
| 9. |
VOE11079610
|
[2] |
Support
|
|
| 10. |
VOE13955366
|
[4] |
Screw
|
|
| 11. |
VOE2560247
|
[16] |
Washer
|
|
| 12. |
VOE955373
|
[4] |
Hexagon screw
|
|
| 13. |
VOE982234
|
[4] |
Hexagon screw
|
|
| 14. |
VOE12580854
|
[8] |
Washer
|
|
| 15. |
VOE1529027
|
[8] |
Rubber cushion
|
|
| 16. |
VOE13811436
|
[4] |
Washer
|
|
| 17. |
VOE13811196
|
[4] |
Lock nut
|
|
