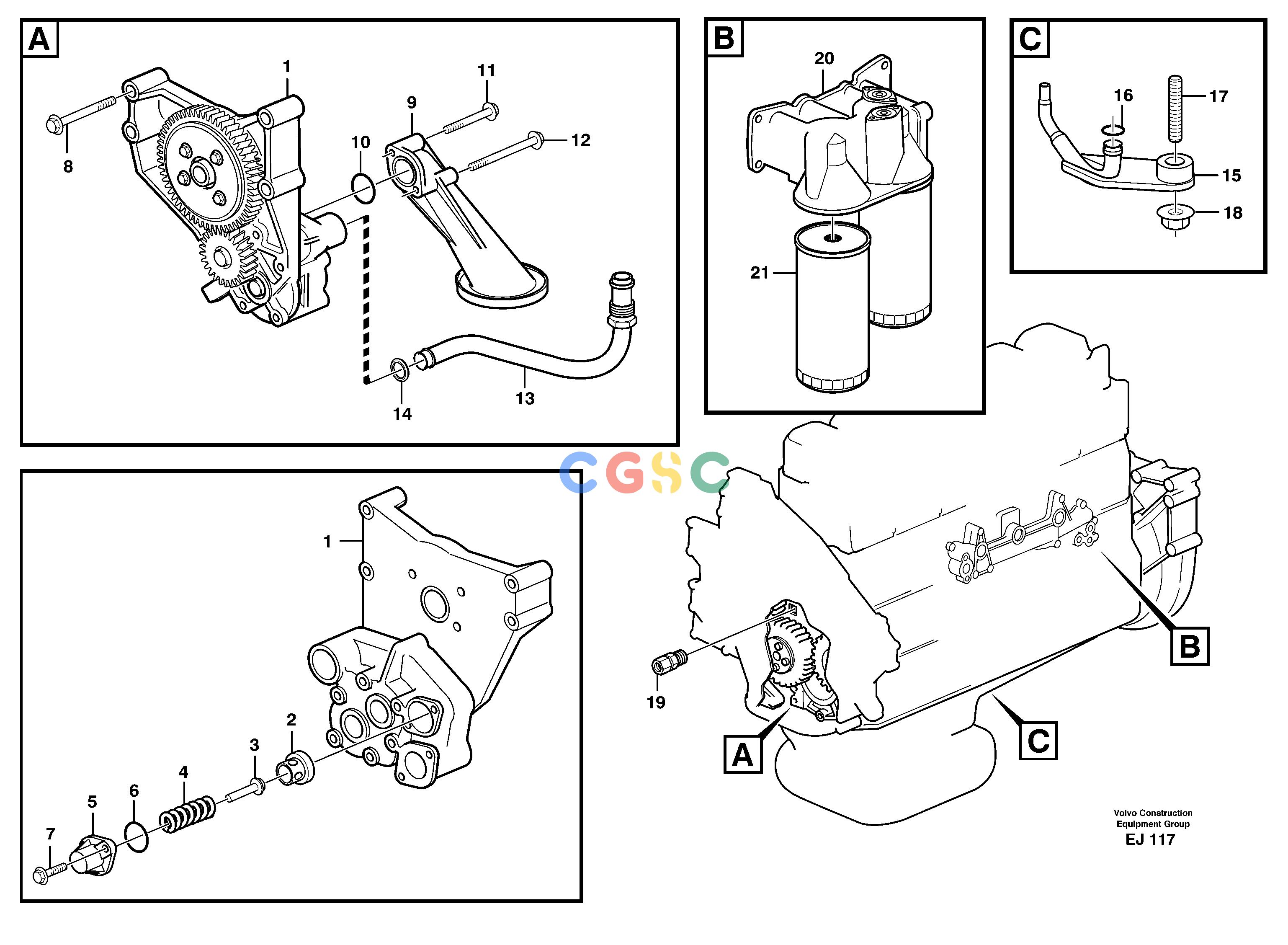

沃尔沃零件查询L330D Lubricating oil systemNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
237 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE1556730
|
[1] |
Oil pump
|
|
| 2. |
VOE1543964
|
[1] |
Seat
|
|
| 3. |
VOE1543610
|
[1] |
Peg
|
|
| 4. |
VOE1543630
|
[1] |
Compression spring
|
|
| 5. |
VOE1543608
|
[1] |
Valve
|
|
| 6. |
VOE949659
|
[1] |
O-ring
|
|
| 7. |
VOE13945444
|
[2] |
Screw
|
|
| 8. |
VOE60113098
|
[4] |
Flange screw
|
|
| 9. |
VOE1543988
|
[1] |
Oil strainer
|
|
| 10. |
VOE13949722
|
[1] |
O-ring
|
|
| 11. |
VOE13965180
|
[1] |
Screw
|
L = 60 MM
|
| 12. |
VOE13965183
|
[1] |
Flange screw
|
L = 90 MM
|
| 13. |
VOE1556464
|
[1] |
Delivery pipe
|
|
| 14. |
VOE1543578
|
[1] |
Sealing ring
|
|
| 15. |
VOE1556430
|
[6] |
Piston cooling jet
|
|
| 16. |
VOE955981
|
[6] |
O-ring
|
|
| 17. |
VOE1556434
|
[6] |
Stud
|
|
| 18. |
VOE13945408
|
[6] |
Nut
|
|
| 19. |
VOE1556445
|
[1] |
Nozzle
|
|
| 20. |
|
[1] |
Housing
|
|
| 21. |
|
[2] |
Oil filter
|
|
