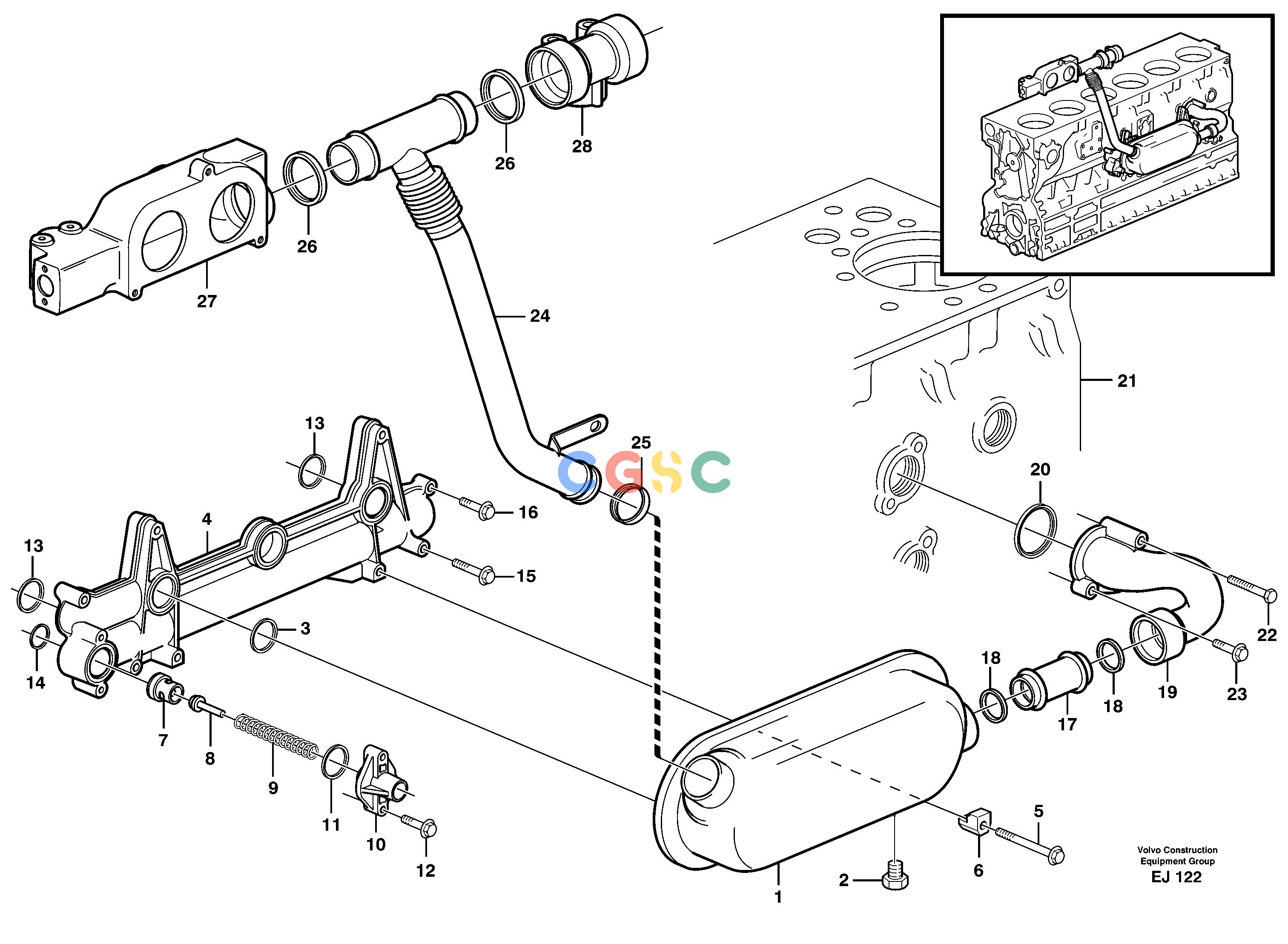

沃尔沃零件查询L330D Oil coolerNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
282 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE8149982
|
[1] |
Oil cooler
|
|
| 2. |
VOE180759
|
[1] |
Plug
|
|
| 3. |
VOE8192187
|
[2] |
Sealing ring
|
OD = 41,2 MM
|
| 4. |
VOE1556594
|
[1] |
Intmd Section
|
|
| 5. |
VOE13965189
|
[4] |
Screw
|
|
| 6. |
VOE471804
|
[4] |
Retainer
|
|
| 7. |
VOE1543964
|
[1] |
Seat
|
|
| 8. |
VOE1543610
|
[1] |
Peg
|
|
| 9. |
VOE1543615
|
[1] |
Spring
|
|
| 10. |
VOE1543608
|
[1] |
Valve
|
|
| 11. |
VOE8192187
|
[1] |
Sealing ring
|
|
| 12. |
VOE60113082
|
[2] |
Flange screw
|
|
| 13. |
VOE8192187
|
[2] |
Sealing ring
|
OD = 41,2 MM
|
| 14. |
VOE8192189
|
[1] |
Sealing ring
|
OD = 32 MM
|
| 15. |
VOE13965216
|
[2] |
Screw
|
L = 55 MM
|
| 16. |
VOE60113082
|
[2] |
Flange screw
|
L = 30 MM
|
| 17. |
VOE471634
|
[1] |
Tube
|
|
| 18. |
VOE1556905
|
[2] |
Sealing ring
|
|
| 19. |
VOE1543868
|
[1] |
Flange
|
|
| 20. |
VOE11702307
|
[1] |
Sealing ring
|
|
| 21. |
|
[1] |
Cylinder block
|
|
| 22. |
VOE955302
|
[1] |
Hexagon screw
|
L = 65 MM
|
| 23. |
VOE60113082
|
[1] |
Flange screw
|
L = 30 MM
|
| 24. |
VOE1556882
|
[1] |
Tube
|
|
| 25. |
VOE1556905
|
[1] |
Sealing ring
|
|
| 26. |
VOE1543572
|
[2] |
Sealing ring
|
|
| 27. |
|
[1] |
Thermostat Housing
|
|
| 28. |
|
[1] |
Contact
|
|
