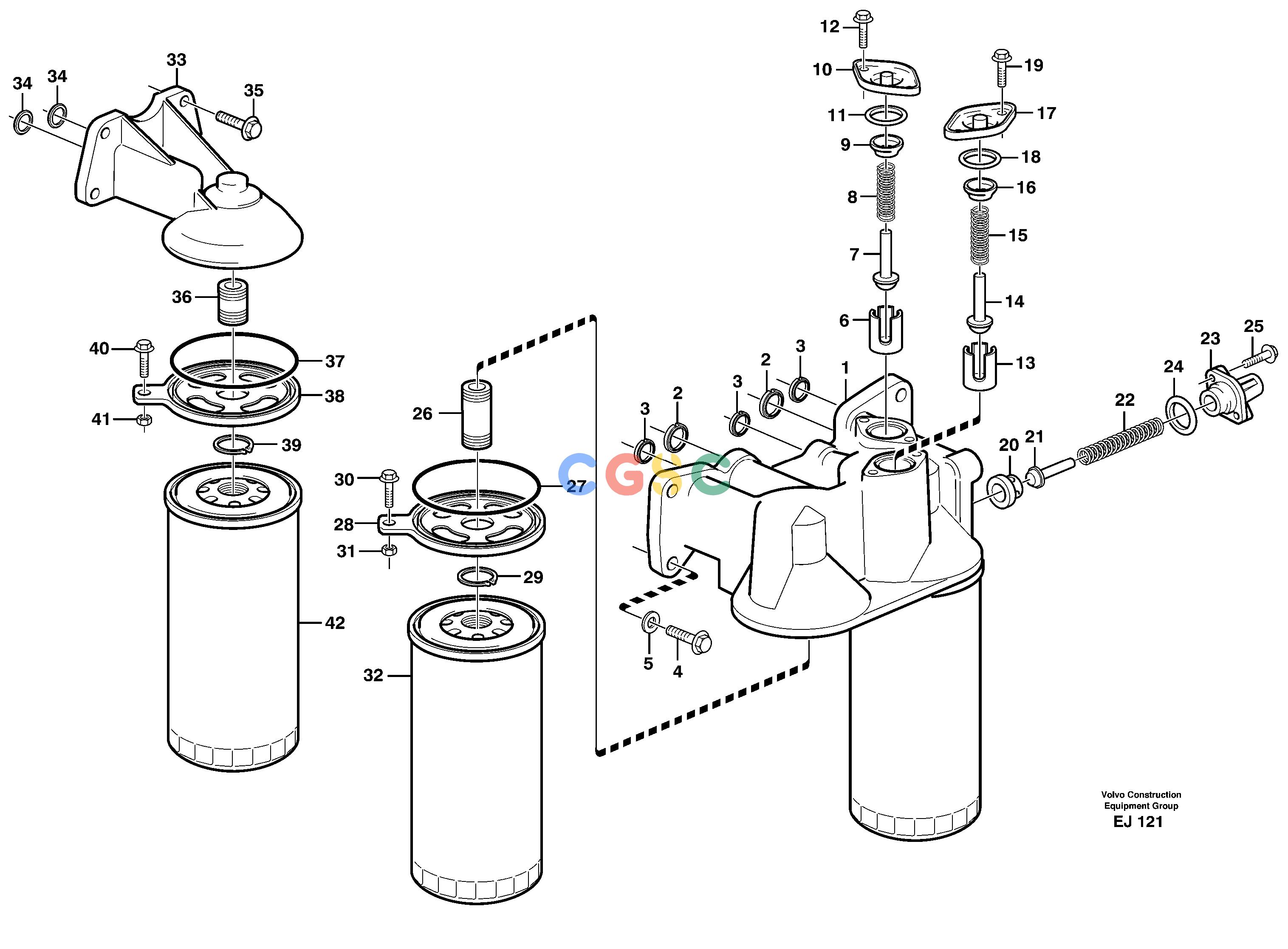

沃尔沃零件查询L330D Oil filterNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
232 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE1543466
|
[1] |
Housing
|
|
| 2. |
VOE8192187
|
[2] |
Sealing ring
|
|
| 3. |
VOE8192189
|
[3] |
Sealing ring
|
|
| 4. |
VOE60113082
|
[3] |
Flange screw
|
L = 30 MM
|
| |
VOE946470
|
[1] |
Flange screw
|
L = 35 MM
|
| 5. |
VOE930840
|
[1] |
Plain washer
|
|
| 6. |
VOE1542265
|
[1] |
Valve seat
|
|
| 7. |
VOE471085
|
[1] |
Valve cone
|
|
| 8. |
VOE466653
|
[1] |
Compression spring
|
|
| 9. |
VOE11987588
|
[1] |
Sleeve
|
|
| 10. |
VOE1542267
|
[1] |
Cover
|
|
| 11. |
VOE1556948
|
[1] |
Sealing ring
|
|
| 12. |
VOE13945414
|
[2] |
Flange screw
|
|
| 13. |
VOE1542265
|
[1] |
Valve seat
|
|
| 14. |
VOE471085
|
[1] |
Valve cone
|
|
| 15. |
VOE466653
|
[1] |
Compression spring
|
|
| 16. |
VOE11987588
|
[1] |
Sleeve
|
|
| 17. |
VOE1542267
|
[1] |
Cover
|
|
| 18. |
VOE1556948
|
[1] |
Sealing ring
|
|
| 19. |
VOE13945414
|
[2] |
Flange screw
|
|
| 20. |
VOE1543964
|
[1] |
Seat
|
|
| 21. |
VOE1543610
|
[00 1] |
Peg
|
|
| 22. |
VOE1543611
|
[1] |
Compression spring
|
|
| 23. |
VOE1543608
|
[1] |
Valve
|
|
| 24. |
VOE1556948
|
[1] |
Sealing ring
|
|
| 25. |
VOE60113082
|
[2] |
Flange screw
|
|
| 26. |
VOE11032123
|
[2] |
Nipple
|
|
| 27. |
VOE968759
|
[2] |
O-ring
|
|
| 28. |
VOE4771601
|
[2] |
Plate
|
|
| 29. |
VOE914461
|
[2] |
Retaining ring
|
|
| 30. |
VOE946471
|
[2] |
Flange screw
|
|
| 31. |
VOE13971074
|
[2] |
Hexagon nut
|
|
| 32. |
VOE21707133
|
[2] |
Oil filter
|
|
| 33. |
VOE1543852
|
[1] |
Oil filter housing
|
|
| 34. |
VOE1543576
|
[2] |
Sealing ring
|
|
| 35. |
VOE60113082
|
[4] |
Flange screw
|
|
| 36. |
VOE11032134
|
[1] |
Nipple
|
|
| 37. |
VOE968759
|
[1] |
O-ring
|
|
| 38. |
VOE11032135
|
[1] |
Plate
|
|
| 39. |
VOE914465
|
[1] |
Snap ring
|
|
| 40. |
VOE946471
|
[1] |
Flange screw
|
|
| 41. |
VOE13971074
|
[1] |
Hexagon nut
|
|
| 42. |
VOE21707132
|
[1] |
Oil filter
|
|
