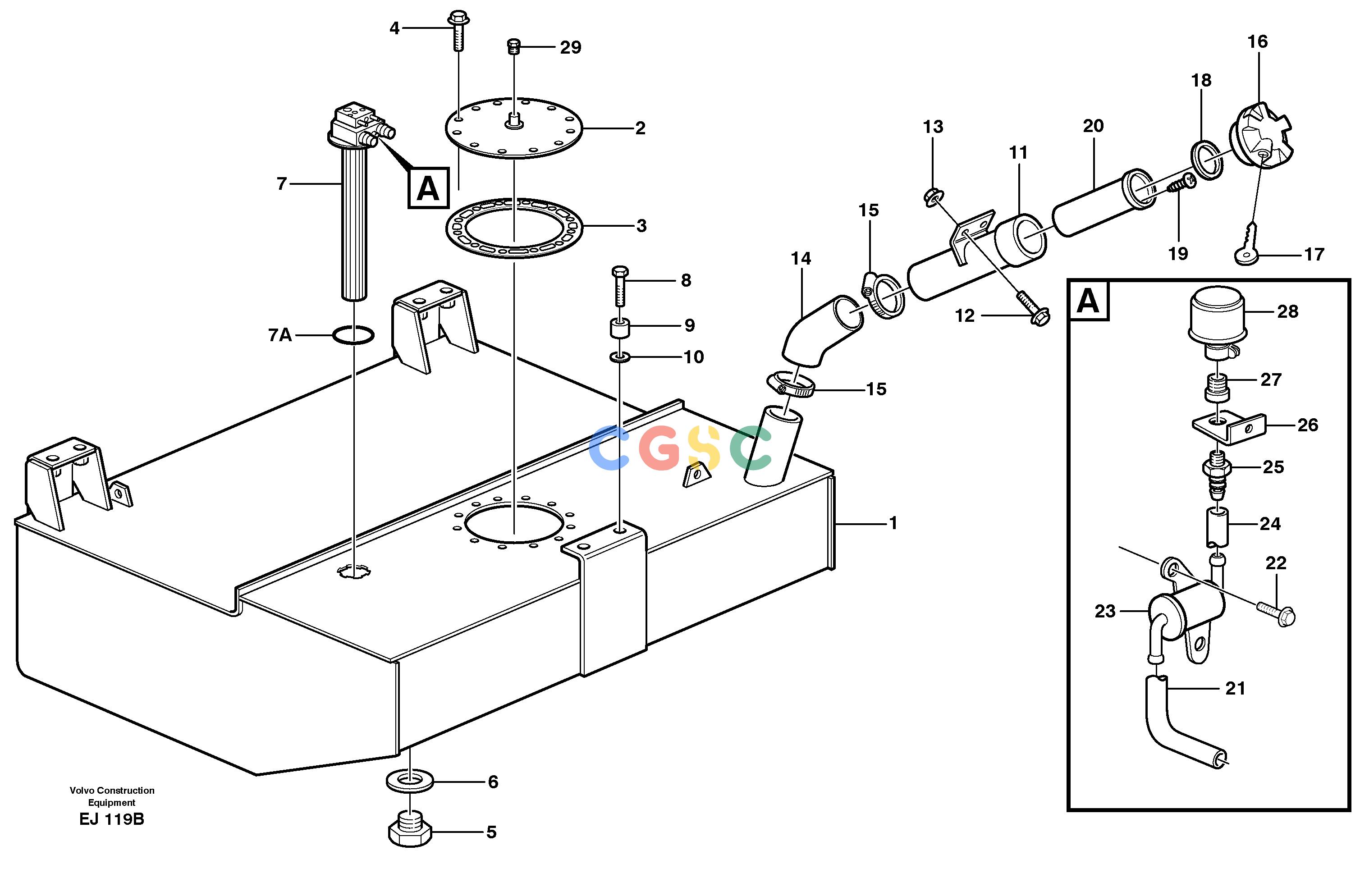

沃尔沃零件查询L330D Fuel tank with fitting partsNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
930 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11096858
|
[1] |
Fuel tank
|
|
| 2. |
VOE11160168
|
[1] |
Plate
|
|
| 3. |
VOE11094567
|
[1] |
Gasket
|
|
| 4. |
VOE13945444
|
[12] |
Screw
|
|
| 5. |
VOE4948183
|
[1] |
Plug
|
|
| 6. |
VOE957184
|
[1] |
Gasket
|
|
| 7. |
VOE11039722
|
[1] |
Tank unit
|
SE207
|
| 7A. |
VOE8151926
|
[1] |
O-ring
|
|
| 8. |
VOE955373
|
[6] |
Hexagon screw
|
|
| 9. |
VOE4713119
|
[6] |
Spacer ring
|
|
| 10. |
VOE60110349
|
[6] |
Washer
|
|
| 11. |
VOE11160085
|
[1] |
Filler pipe
|
|
| 12. |
VOE60113082
|
[2] |
Flange screw
|
|
| 13. |
VOE13945408
|
[2] |
Nut
|
|
| 14. |
VOE11163047
|
[1] |
Hose
|
|
| 15. |
VOE943483
|
[2] |
Hose clamp
|
|
| 16. |
VOE1189577
|
[1] |
Filler cap
|
|
| 17. |
VOE11991396
|
[2] |
Key
|
|
| 18. |
VOE1698164
|
[1] |
Gasket
|
|
| 19. |
VOE955126
|
[1] |
Cross recessed screw
|
|
| |
VOE972079
|
[2] |
Six point socket screw
|
|
| 20. |
VOE11173801
|
[1] |
Strainer
|
|
| 21. |
VOE11024720
|
[REQ] |
Plastic hose
|
L = 1030 MM
SER NO - 61120
|
| |
VOE11024720
|
[REQ] |
Plastic hose
|
L=1300 MM
SER NO 61121
|
| 22. |
VOE13965175
|
[2] |
Screw
|
SER NO - 61120
|
| 23. |
VOE11172907
|
[1] |
Air filter
|
SER NO - 61120
|
| 24. |
VOE11024720
|
[REQ] |
Plastic hose
|
L = 270 MM
SER NO - 61120
|
| 25. |
VOE949221
|
[1] |
Hose nipple
|
|
| 26. |
VOE11160401
|
[1] |
Bracket
|
|
| 27. |
VOE4854955
|
[1] |
Nipple
|
|
| 28. |
VOE11172907
|
[1] |
Air filter
|
|
| 29. |
VOE479979
|
[1] |
Plug
|
|
