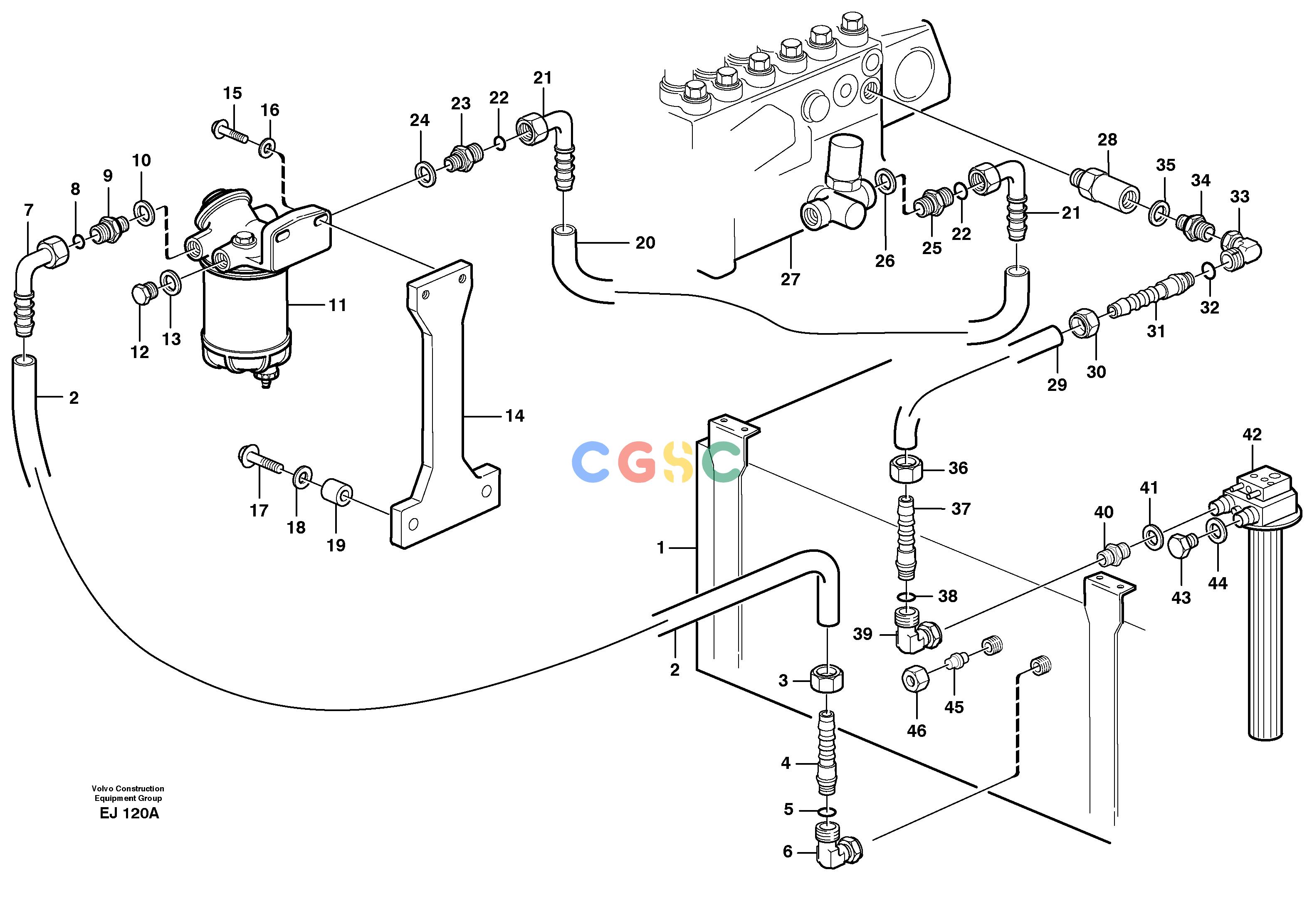

沃尔沃零件查询L330D Fuel pipes: fuel tank - injection pumpNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
876 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Fuel tank
|
|
| 2. |
VOE978881
|
[REQ] |
Tube
|
L = 1030 MM
|
| 3. |
VOE956985
|
[1] |
Fitting nut
|
|
| 4. |
VOE977756
|
[1] |
Nipple
|
|
| 5. |
VOE13960212
|
[1] |
O-ring
|
|
| 6. |
VOE13946369
|
[1] |
Nipple
|
|
| 7. |
VOE11031348
|
[1] |
Nipple
|
|
| 8. |
VOE990737
|
[1] |
O-ring
|
|
| 9. |
VOE14213266
|
[1] |
Fitting
|
|
| 10. |
VOE13947622
|
[1] |
Plane gasket
|
|
| 11. |
VOE11110050
|
[1] |
Water separator
|
|
| |
VOE949908
|
[REQ] |
Hose
|
L=500 MM
|
| 12. |
VOE960631
|
[2] |
Plug
|
|
| 13. |
VOE948883
|
[2] |
Gasket
|
|
| 14. |
VOE11141152
|
[1] |
Plate
|
|
| 15. |
VOE13946752
|
[2] |
Screw
|
|
| 16. |
VOE930842
|
[2] |
Plain washer
|
|
| 17. |
VOE968437
|
[2] |
Flange screw
|
|
| 18. |
VOE60110349
|
[2] |
Washer
|
|
| 19. |
VOE11094551
|
[2] |
Spacer
|
|
| 20. |
VOE978881
|
[REQ] |
Tube
|
L = 575 MM
|
| 21. |
VOE11031348
|
[2] |
Nipple
|
|
| 22. |
VOE990737
|
[2] |
O-ring
|
|
| 23. |
VOE14213266
|
[1] |
Fitting
|
|
| 24. |
VOE13947622
|
[1] |
Plane gasket
|
|
| 25. |
VOE13946602
|
[1] |
Nipple
|
|
| 26. |
VOE976929
|
[2] |
Gasket
|
|
| 27. |
|
[1] |
Injection pump
|
|
| 28. |
|
[1] |
Overflow valve
|
|
| 29. |
VOE978881
|
[REQ] |
Tube
|
L = 1150 MM
|
| 30. |
VOE956984
|
[1] |
Fitting nut
|
|
| 31. |
VOE976503
|
[1] |
Nipple
|
|
| 32. |
VOE13960212
|
[1] |
O-ring
|
|
| 33. |
VOE13964016
|
[1] |
Nipple
|
|
| 34. |
VOE13946602
|
[1] |
Nipple
|
|
| 35. |
VOE976929
|
[1] |
Gasket
|
|
| 36. |
VOE956984
|
[1] |
Fitting nut
|
|
| 37. |
VOE976503
|
[1] |
Nipple
|
|
| 38. |
VOE13960212
|
[1] |
O-ring
|
|
| 39. |
VOE13964016
|
[1] |
Nipple
|
|
| 40. |
VOE13946602
|
[1] |
Nipple
|
|
| 41. |
VOE976929
|
[1] |
Gasket
|
|
| 42. |
|
[1] |
Tank unit
|
|
| 43. |
VOE960630
|
[1] |
Plug
|
|
| 44. |
VOE976929
|
[1] |
Gasket
|
|
| 45. |
VOE13964090
|
[1] |
Closure
|
|
| 46. |
VOE956985
|
[1] |
Fitting nut
|
|
