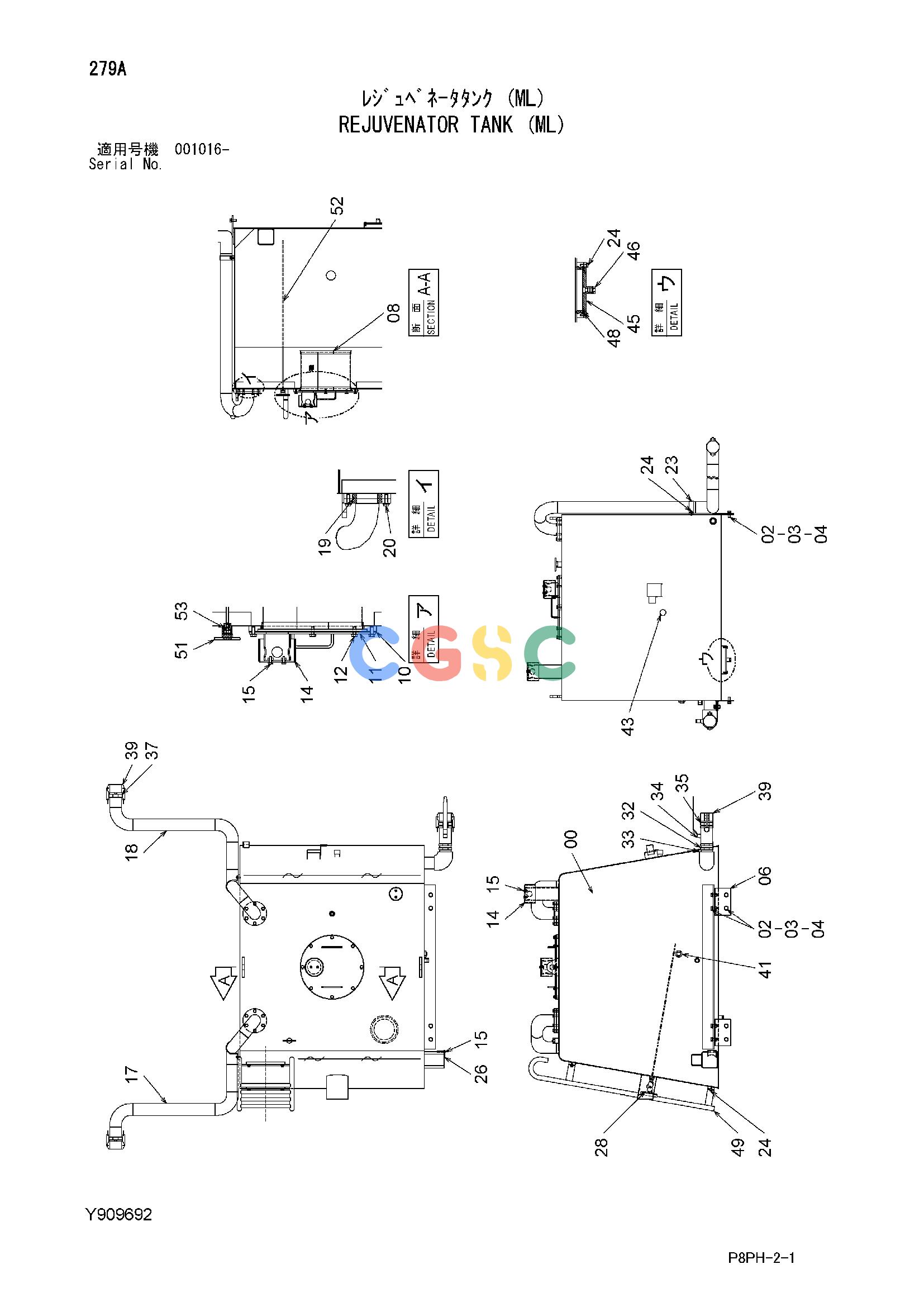

日立零件查询（AR2000）REJUVENATOR TANK (ML) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
835 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y500282 | [1] | TANK | |
| 02. | J901640 | [10] | BOLT | |
| 03. | A590116 | [10] | WASHER;PLANE | |
| 04. | A590916 | [10] | WASHER;SPRING | |
| 06. | Y971358 | [2] | BRACKET | |
| 08. | Y802133 | [1] | STRAINER | |
| 10. | Y402732 | [1] | RUBBER | |
| 11. | Y802134 | [1] | COVER | |
| 12. | J271230 | [8] | BOLT;SEMS | |
| 12A. | J901230 | [1] | BOLT | |
| 12B. | J222012 | [1] | WASHER | |
| 14. | Y801649 | [2] | COVER | |
| 15. | J260825 | [6] | BOLT;SEMS | |
| 15A. | J900825 | [1] | BOLT | |
| 15B. | A590108 | [1] | WASHER;PLANE | |
| 17. | Y700952 | [1] | PIPE | |
| 18. | Y700953 | [1] | PIPE | |
| 19. | A810100 | [2] | O-RING | |
| 20. | J271235 | [12] | BOLT;SEMS | |
| 20A. | J901235 | [1] | BOLT | |
| 20B. | J222012 | [1] | WASHER | |
| 23. | 4000910 | [2] | CLAMP;PIPE | |
| 24. | J271025 | [14] | BOLT;SEMS | |
| 24A. | J901025 | [1] | BOLT | |
| 24B. | J222010 | [1] | WASHER | |
| 26. | Y409387 | [1] | PLATE | |
| 28. | Y411231 | [1] | METER;THERMO | |
| 32. | Y409390 | [1] | CONNECTOR | |
| 33. | 94-0624 | [1] | ELBOW | |
| 34. | Y409388 | [1] | VALVE;BALL | |
| 35. | Y409391 | [1] | PLUG | |
| 37. | Y409401 | [2] | COUPLING;CONNECT | |
| 39. | Y409389 | [3] | COUPLING;CONNECT | |
| 41. | 4259787 | [1] | SWITCH;LEVEL | |
| 43. | Y402803 | [1] | CAP | |
| 45. | 8062009 | [1] | COVER | |
| 46. | 4092534 | [1] | PLUG | |
| 46A. | 4509180 | [1] | O-RING | |
| 48. | A810165 | [1] | O-RING | |
| 49. | Y802132 | [1] | LADDER | |
| 51. | Y971413 | [1] | PLUG | |
| 52. | Y412464 | [1] | ROD | |
| 53. | J950008 | [1] | NUT | |
