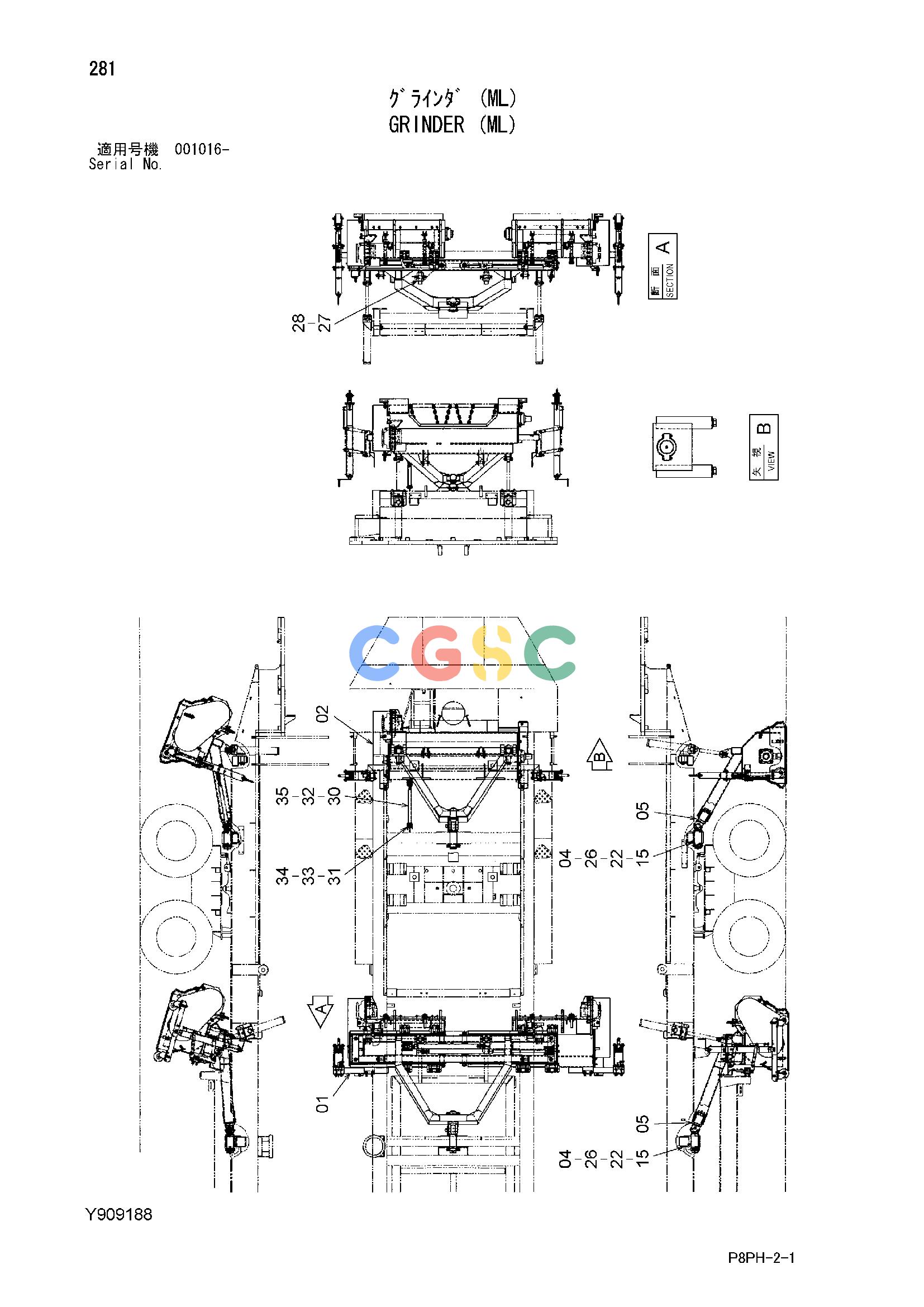

日立零件查询（AR2000）GRINDER (ML) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
775 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | +++++++ | [1] | FRONT GRINDER (ML) | <for details: see separate page> |
| 02. | +++++++ | [1] | REAR GRINDER (ML) | <for details: see separate page> |
| 04. | +++++++ | [2] | JOINT PIN (F)(ML) | <for details: see separate page> |
| 05. | +++++++ | [2] | JOINT PIN (G)(ML) | <for details: see separate page> |
| 15. | Y411922 | [2] | PIN | |
| 22. | A590152 | [2] | WASHER;PLANE | |
| 26. | 3002554 | [2] | PIN;LOCK | |
| 27. | Y408720 | [4] | NUT | |
| 28. | Y970969 | [2] | MOVABLE PLATE | |
| 30. | Y801902 | [1] | STICK | |
| 31. | Y971172 | [2] | PIN | |
| 32. | Y971173 | [1] | BLOCKING SCREW | |
| 33. | 4077248 | [2] | PIN;LOCK | |
| 34. | A590118 | [2] | WASHER;PLANE | |
| 35. | J950024 | [1] | NUT | |
